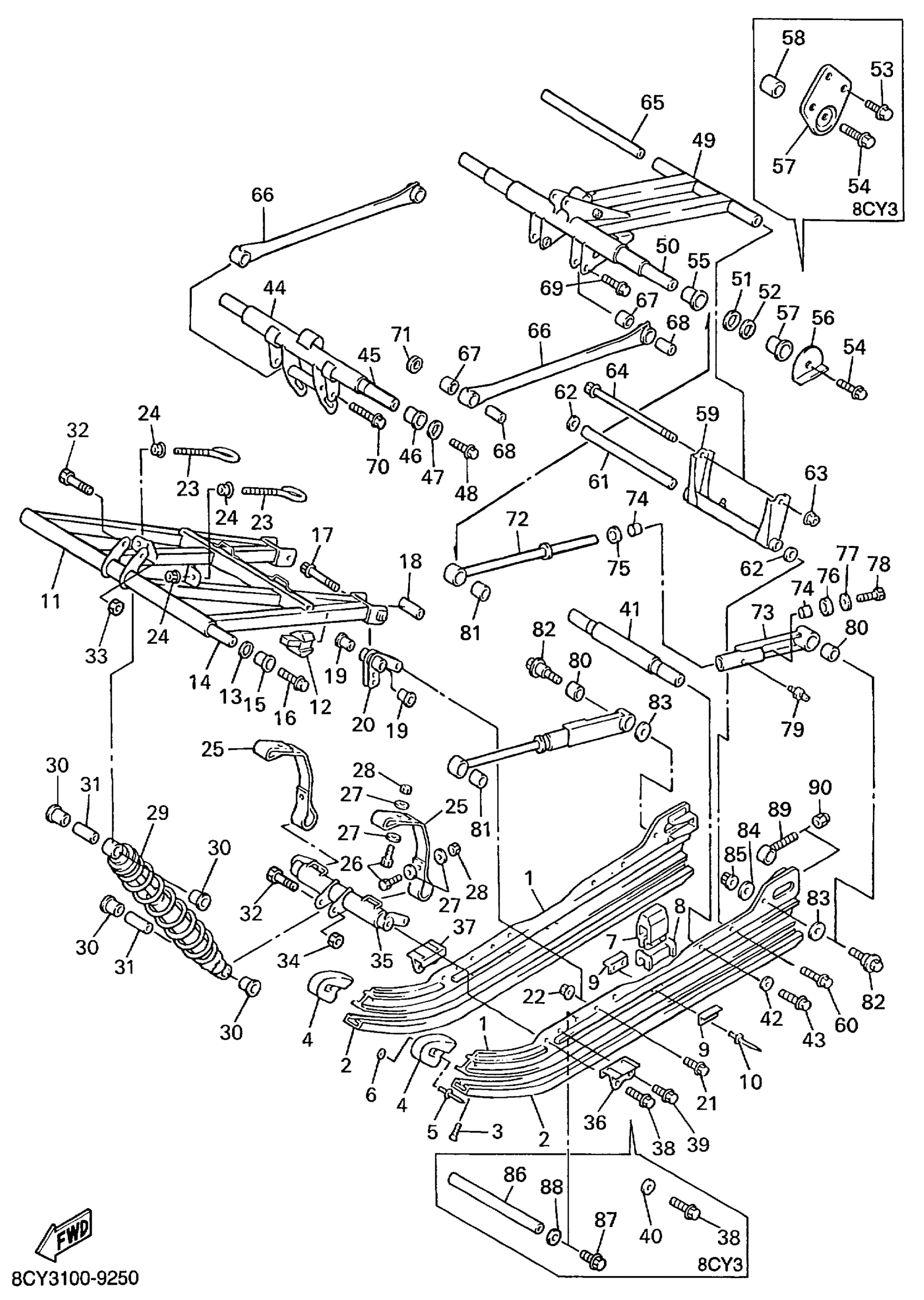

Yamaha VX500ERC (VMAX 500 DELUXE) 8DT2 1999 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

FRAME, SLIDING

8CR-W4741-00-00

$328.83

1

FRAME, SLIDING

8CW-W4741-00-00

Unavailable

2

136 BLACK HYFAX

SMA-8CW92-70-BK

$28.00

2

136 BLACK HYFAX

SMA-8CW92-70-BK

$28.00

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

4

RUNNER, SLIDING 2

8ED-47422-00-00

$42.54

5

RIVET BLIND

90267-48194-00

$2.20

6

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

7

DAMPER 2

8CM-47457-00-00

$8.78

8

SPACER

8CM-47341-00-00

$7.37

9

PLATE, DAMPER

8AX-47458-00-00

$8.08

10

RIVET, BLIND (8K4)

90267-48062-00

$3.38

10

RIVET, BLIND

90267-48199-00

$2.62

11

ARM, PIVOT 1

8CV-47331-01-00

$286.00

12

DAMPER 1

8DF-47456-10-00

Unavailable

13

WASHER, PLATE(8CJ)

90201-210U0-00

$7.77

14

SHAFT 1

8CR-47465-00-00

$77.26

15

BUSH, SOLID(8CJ)

90381-19111-00

$11.82

16

BOLT (8V0)

90109-10771-00

$5.00

17

BOLT, FLANGE

90105-10029-00

$3.23

18

COLLAR(8CJ)

90387-1009T-00

$19.80

19

BUSH, SOLID(8CJ)

90381-15112-00

$7.03

20

BRACKET 1

8CR-47415-00-00

Unavailable

21

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

22

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

23

HOOK 3

8CR-47448-00-00

$14.94

24

NUT, FLANGE(JN5)

95707-08500-00

$1.49

25

STOPPER 1

8CR-47495-00-00

$58.96

26

BOLT, HEXAGON

97017-06025-00

$2.98

27

WASHER, PLATE

90201-06747-00

$6.17

28

NUT, NYLON

95707-06300-00

$3.20

29

SHOCK ABSORBER 2

8CR-47481-00-00

Unavailable

29

SHOCK ABSORBER 2

8CW-47481-00-00

Unavailable

30

COLLAR (8U7)

90387-145G7-00

$9.65

31

COLLAR (8U7)

90387-105G5-00

$7.35

32

BOLT(88R)

90101-10738-00

$6.28

33

NUT, SELF LOCKING (23X)

90185-10120-00

$4.91

34

NUT, U

95617-10100-00

$6.18

35

BRACKET 4

8CR-47418-10-00

Unavailable

36

BRACKET 5

8DF-47463-01-00

Unavailable

37

BRACKET 6

8DF-47464-01-00

Unavailable

38

BOLT, FLANGE

95817-10030-00

$6.17

39

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

39

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

40

WASHER, PLATE (4X7)

90201-105A2-00

$6.68

41

SHAFT 4

8CR-47486-00-00

Unavailable

42

WASHER, PLATE (17K)

90201-106F2-00

$7.66

43

BOLT, FLANGE

95817-10030-00

$6.17

44

BRACKET 2

8CR-47416-10-00

Unavailable

45

SHAFT 6

8CR-47488-00-00

Unavailable

46

BUSH, SOLID(8CM)

90381-22099-00

$9.85

47

WASHER, PLATE(1KE)

90201-207J5-00

$2.32

48

BOLT (8V0)

90109-10771-00

$5.00

49

ARM, PIVOT 2

8CR-47332-10-00

$225.54

50

SHAFT 2

8CR-47475-00-00

$105.03

50

SHAFT 2

8CY-47475-01-00

$127.06

51

WASHER, PLATE (8V2)

90201-251G8-00

$7.49

52

WASHER, PLATE(8CJ)

90201-250T6-00

$7.43

53

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

54

BOLT (8V0)

90109-10771-00

$5.00

54

BOLT, FLANGE

95817-10030-00

$6.17

55

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

56

BRACKET, REAR 1

8CR-47426-11-00

Unavailable

57

BRACKET, REAR 2

8CR-47425-00-00

Unavailable

57

BRACKET, REAR 2

8CW-47425-00-00

Unavailable

58

COLLAR

90387-2510A-00

Unavailable

59

BRACKET 3

8CR-47417-01-00

Unavailable

60

BOLT, FLANGE

95817-10030-00

$6.17

61

SHAFT 3

82M-47485-02-00

Unavailable

62

WASHER PLATE (789)

90201-10136-00

$7.26

63

NUT, SELF-LOCKING

90185-08169-00

$7.09

64

BOLT, FLANGE

95827-08220-00

Unavailable

65

COLLAR (8U7)

90387-083G6-00

$9.75

66

ROD, RELAY

8CR-47494-01-00

Unavailable

67

BUSH, SOLID(8CJ)

90381-14109-00

$7.60

68

COLLAR(87A)

90387-100X3-00

$3.49

69

BOLT, FLANGE

95817-10035-00

$6.85

70

BOLT, FLANGE

95814-10040-00

$3.69

71

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

72

ROD, CONTROL 1

8CR-4745A-01-00

$68.28

73

ROD, CONTROL 2

8CR-4745B-00-00

Unavailable

74

BUSH, BIMETAL FORMED(8CJ)

90384-16251-00

$6.17

75

WASHER, PLATE(8BT)

90202-16232-00

$6.82

76

WASHER, PLATE(8CJ)

90202-16231-00

Unavailable

77

WASHER, PLATE (17K)

90201-106F2-00

$7.66

78

BOLT(6TD)

97017-10025-00

$6.82

79

NIPPLE, GREASE

93700-06M03-00

$7.15

80

BUSH, SOLID(8CM)

90380-22232-00

$20.92

81

BUSH, SOLID(8CJ)

90380-28235-00

$24.80

82

SCREW, REAR PIVOT

8DF-47367-09-00

$19.29

83

WASHER, PLATE(JN9)

90201-100S2-00

$6.14

84

WASHER, PLATE

90201-101U2-00

$5.37

85

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

86

SHAFT 3

82M-47485-02-00

Unavailable

87

BOLT, FLANGE

95817-10030-00

$6.17

88

WASHER, PLATE (26H)

90201-102G9-00

$6.38

89

COLLAR 3

8K2-47479-01-00

$25.69

90

NUT, NYLON

95707-10300-00

$6.68
