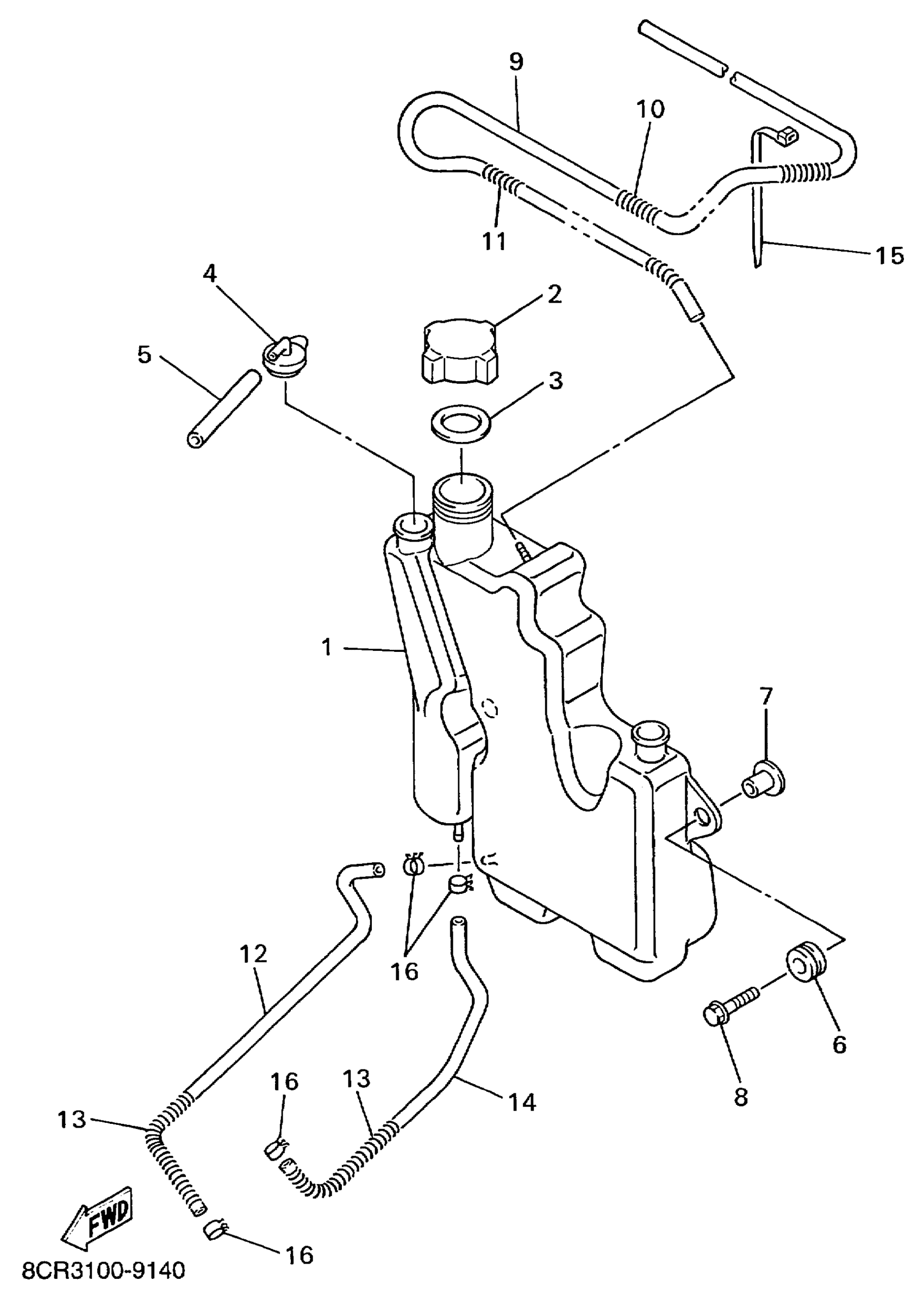

Yamaha VX500ERC (VMAX 500 DELUXE) 8DT2 1999 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8CR-21751-10-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$23.94

3

GASKET, TANK (867)

90430-31003-00

$7.39

4

CAP

89A-21815-00-00

$19.94

5

HOSE (L70)

90445-112E0-00

$5.86

6

GROMMET 839774310000

90480-14023-00

$4.92

7

COLLAR(52E)

90387-063G3-00

$5.98

8

BOLT, FLANGE

95817-06025-00

Unavailable

9

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

10

SPRING, COMPRESSION (10L)

90501-08668-00

$9.54

11

SPRING, COMPRESSION(3JK)

90501-101J5-00

$16.89

12

TUBE, FLEXIBLE VINYL

91A30-05033-00

Unavailable

13

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

14

HOSE (L600)

90445-083J5-00

$6.54

15

CLAMP(4FM)

90464-15195-00

$2.64

16

CLIP (8A1)

90467-09026-00

Unavailable
