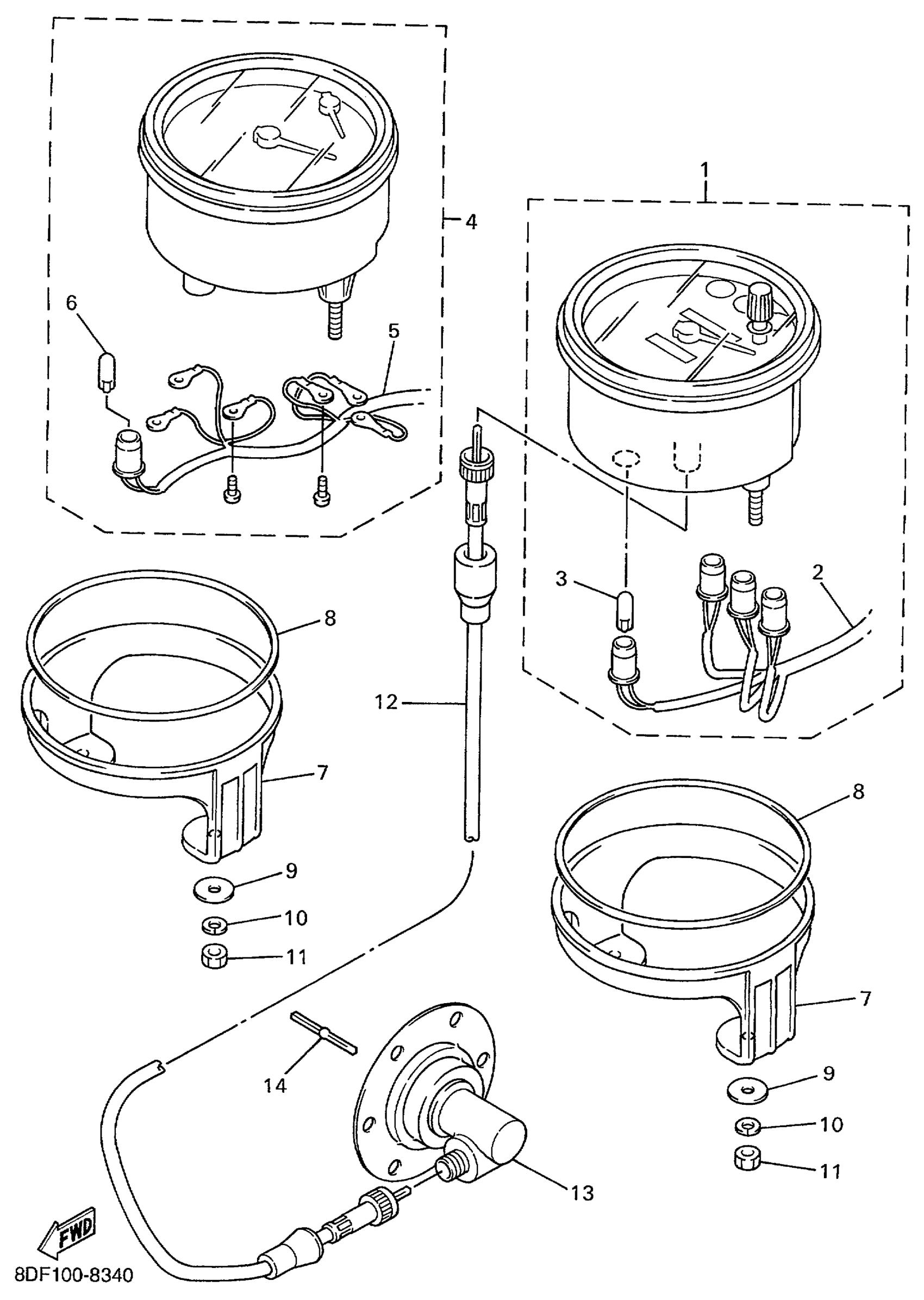

Yamaha VX500ERC (VMAX 500 DELUXE) 8DT2 1999 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY (MILE/H)

8DF-83510-40-00

Unavailable

2

. SOCKET CORD ASSY

8DF-83509-40-00

Unavailable

3

BULB (12V-1.7W)

3GM-83517-00-00

$7.99

4

TACHOMETER ASSY

8CJ-83540-41-00

Unavailable

5

SOCKET CORD ASSY

8DF-83509-10-00

Unavailable

6

BULB (12V-1.7W)

3GM-83517-00-00

$7.99

7

BRACKET, METER

8DF-83519-40-00

Unavailable

8

DAMPER

8DF-83523-40-00

Unavailable

9

WASHER, PLATE 8221447500

90201-06057-00

$5.60

10

WASHER, SPRING

92907-06100-00

$4.25

11

NUT(6TA)

95317-06600-00

$3.55

12

SPEEDOMETER CABLE ASSY

8CR-83550-10-00

$76.99

13

METER GEAR HOUSING COMP.

8CR-47700-00-00

$165.99

14

JOINT

8K4-47715-00-00

$5.60
