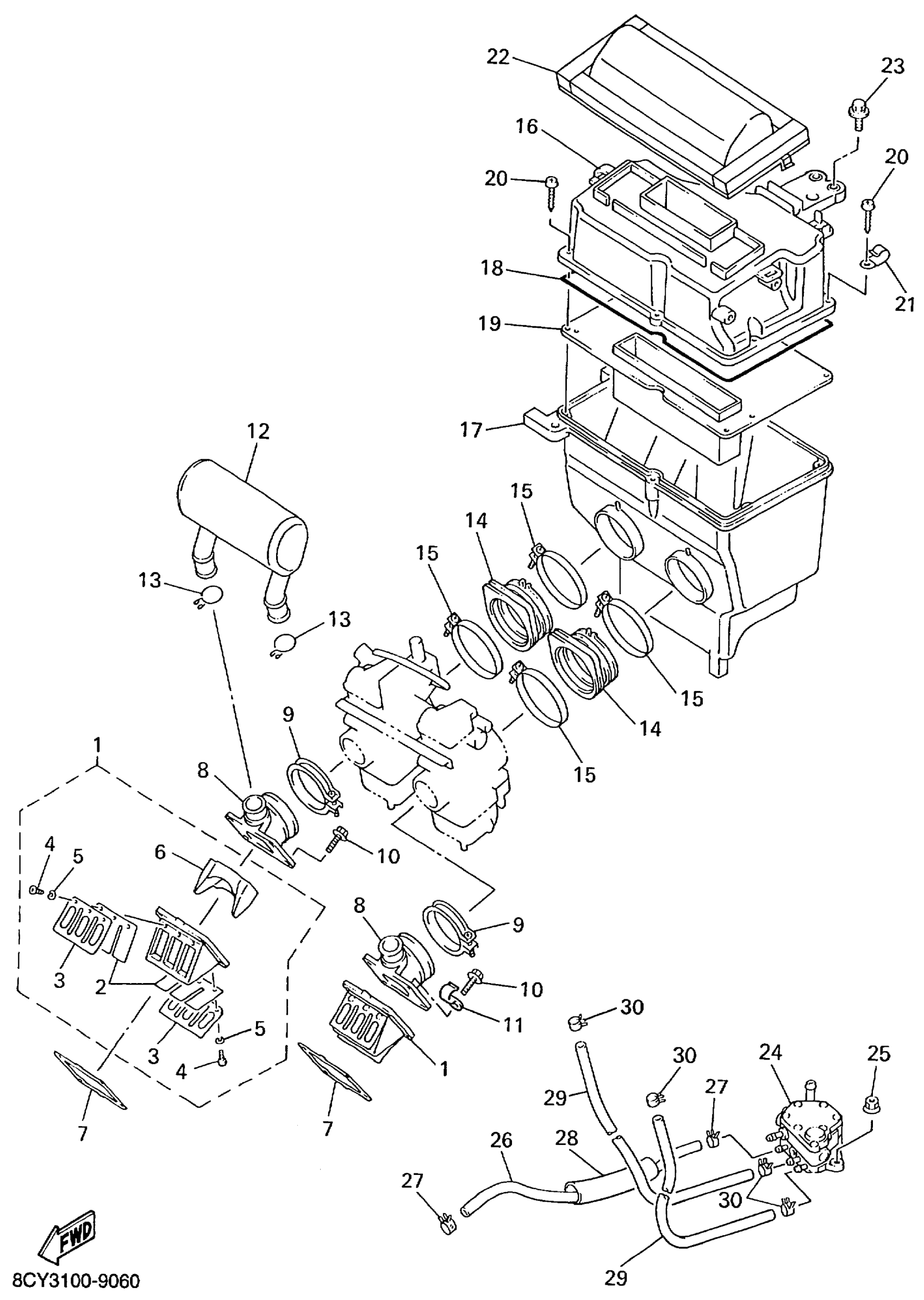

Yamaha VX500ERC (VMAX 500 DELUXE) 8DT2 1999 INTAKE Diagram
#
1
REED VALVE ASSY
4DA-13610-01-00
Unavailable
2
REED, VALVE
3SP-13613-01-00
$32.99
3
STOPPER, REED VALVE
8DJ-13616-00-00
$17.49
4
SCREW, PAN HEAD(3AC)
98517-03008-00
$2.97
5
WASHER, SPRING
92990-03100-00
$8.49
6
. SPACER, REED VALVE
4DA-13625-00-00
Unavailable
7
GASKET, VALVE SEAT
80L-13621-01-00
$10.99
8
MANIFOLD, INTAKE
8CR-13555-00-00
Unavailable
9
BAND
86M-13575-00-00
$19.49
10
BOLT, FLANGE
95817-06020-00
$3.81
11
CLAMP (4G0)
90462-08078-00
$5.60
12
CHAMBER, AIR
8CR-13581-00-00
Unavailable
13
CLIP(8V0)
90467-24096-00
$8.49
14
JOINT, AIR CLEANER 1
8CR-14453-00-00
Unavailable
15
CLAMP, HOSE (29L)
90460-68230-00
$16.99
16
SILENCER, INTAKE 1
8CR-14431-01-00
Unavailable
17
SILENCER, INTAKE 2
8CR-14441-01-00
Unavailable
18
SEAL
51Y-14462-00-00
Unavailable
19
PLATE
8CR-14477-00-00
Unavailable
20
SCREW, TAPPING(82M)
90167-05043-00
Unavailable
21
CLAMP
90465-08028-00
Unavailable
22
ELEMENT ASSY, AIR CLEANER
8CR-14450-00-00
Unavailable
23
BOLT, WITH WASHER(3FC)
90119-06163-00
Unavailable
24
FUEL PUMP ASSY
8CR-24410-01-00
Unavailable
25
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
26
HOSE (L400)
90445-116K9-00
Unavailable
27
CLIP (7K7)
90467-11044-00
Unavailable
28
HOSE (L150)
90445-226J7-00
Unavailable
29
HOSE (L420)
90445-092K1-00
Unavailable
30
CLIP (8A1)
90467-09026-00
Unavailable
