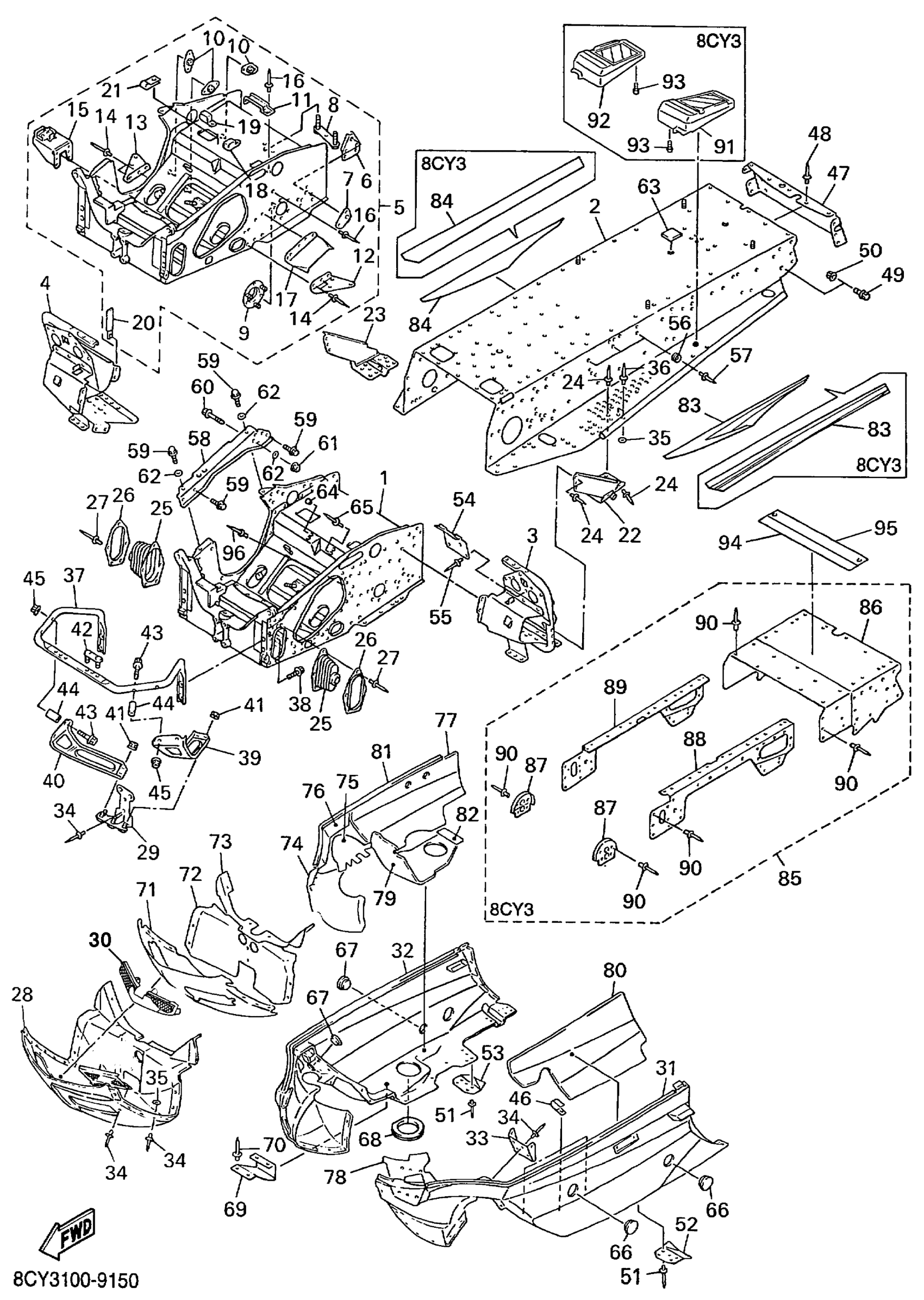

Yamaha VX500ERC (VMAX 500 DELUXE) 8DT2 1999 FRAME Diagram
#
1
FRONT FRAME COMP.
8CR-21940-07-00
Unavailable
2
REAR FRAME COMP.
8CR-21950-07-00
Unavailable
3
FOOTREST COMP. 1
8CR-21960-08-00
Unavailable
4
FOOTREST COMP. 2
8CR-21970-08-00
Unavailable
5
FRAME CONNECTION KIT
8CR-W2195-03-00
Unavailable
6
BRACKET, MAIN TRACK 1
8CR-21943-01-00
$6.99
7
BRACKET, MAIN TRACK 2
8CR-21953-00-00
$2.24
8
BRACKET 3
8CR-2196F-00-00
Unavailable
9
. HOUSING, REINF SUB-ASSY (LH)
8CR-21920-00-00
Unavailable
10
BRACKET, CHAIN HOUSING
8CR-21939-01-00
$5.49
11
CLAMP, FUEL PIPE
8CR-21977-00-00
Unavailable
12
PANEL, SUB FRAME 6
8CR-21917-00-00
Unavailable
13
PANEL, SUB-FRAME 7
8CR-21918-00-00
Unavailable
14
RIVET, BLIND
90267-48016-00
$10.49
15
STAY, MUFFER
8CR-2194J-00-00
Unavailable
16
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
16
RIVET, BLIND
90267-47197-00
Unavailable
17
COVER 2
8CR-2198G-00-00
Unavailable
18
CLAMP(83R)
90461-08113-00
Unavailable
19
CLAMP(8CR)
90461-06142-00
Unavailable
20
CLAMP
90462-10236-00
Unavailable
21
CLAMP
90461-10148-00
Unavailable
22
PIPE, PIVOT 1
8DF-21941-00-00
Unavailable
23
PIPE, PIVOT 2
8DF-21951-00-00
Unavailable
24
RIVET
90269-07080-00
Unavailable
25
COVER 1
8CR-2198F-00-00
Unavailable
26
PLATE, STRG BRACKET 1
8CR-2195E-00-00
Unavailable
27
RIVET, BLIND
90267-47197-00
Unavailable
28
PANEL, SUB FRAME 1
8CR-21912-31-00
Unavailable
29
PLATE, BACK UP
8CR-23788-11-00
Unavailable
30
STAY 4
8CR-77128-00-00
Unavailable
31
FRAME UNDER 1
8CR-2196A-32-00
Unavailable
32
FRAME, UNDER 2
8CR-2196E-32-00
Unavailable
33
BRACKET, GUARD FITTING
8CR-21972-00-00
Unavailable
34
RIVET, BLIND
90267-48018-00
Unavailable
35
WASHER PLATE 829771780000
90201-05033-00
Unavailable
36
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
37
BUMPER, FRONT 2
8CR-77512-00-00
Unavailable
38
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
39
BRACKET, FRONT
8CR-21949-10-00
Unavailable
40
BRACKET, FRONT BUMPER
8CR-21959-10-00
Unavailable
41
NUT, SELF-LOCKING
90185-08169-00
Unavailable
42
BRACKET, 5
8CR-2196M-00-00
Unavailable
43
BOLT, FLANGE
95817-08040-00
Unavailable
44
COLLAR(8CR)
90387-0810F-00
Unavailable
45
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
46
CLAMP(4MX)
90465-06376-00
Unavailable
47
REINEFORCEMENT, FRAME REAR 1
8CR-21923-02-00
Unavailable
48
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
48
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
49
BOLT, SMALL FLANGE
95027-08016-00
Unavailable
50
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
51
RIVET, BLIND
90267-48018-00
Unavailable
52
PROTECTOR, FRAME
8CR-21978-00-00
Unavailable
53
PROTECTOR, FRAME
8CR-2197B-00-00
Unavailable
54
HOOK
8CR-21973-00-00
Unavailable
55
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
56
BUTT0N
81K-2471F-00-00
Unavailable
57
RIVET, BLIND(81K)
90267-40135-00
Unavailable
58
REINEFORCEMENT, FRAME REAR 1
8CR-21921-01-00
Unavailable
59
BOLT, FLANGE
95817-10020-00
Unavailable
60
BOLT,FLANGE
95817-10065-00
Unavailable
61
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
62
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
63
COVER 3
8CR-2198J-00-00
Unavailable
64
PLUG (17J)
90338-10132-00
Unavailable
65
RIVET, BLIND
90267-48177-00
Unavailable
66
PLUG
90338-44269-00
Unavailable
67
PLUG
90338-30267-00
Unavailable
68
SPACER
8DF-21998-10-00
Unavailable
69
PROTECTOR, FRAME 3
8CS-2197C-00-00
Unavailable
70
RIVET, BLIND
90267-48018-00
Unavailable
71
LINING, SHROUD 1
8CR-77261-00-00
Unavailable
72
LINING, SHROUD 2
8CR-77262-00-00
Unavailable
73
LINING, SHROUD 3
8CR-77263-00-00
Unavailable
74
LINING, SHROUD 4
8CR-77264-00-00
Unavailable
75
LINING, SHROUD 5
8CR-77265-00-00
Unavailable
76
LINING, SHROUD 6
8CR-77266-00-00
Unavailable
77
LINING, SHROUD 7
8CR-77267-01-00
Unavailable
78
LINING,SHROUD 8
8CR-77268-00-00
Unavailable
79
LINING, SHROUD 9
8CR-77269-00-00
Unavailable
80
DAMPER, NOISE 11
8CR-77271-00-00
Unavailable
81
TAPE, 5
8CR-7717J-00-00
Unavailable
82
TRIM 1
8CR-77165-00-00
Unavailable
83
EMBLEM 1
8DG-77351-00-00
Unavailable
83
EMBLEM 1
8EB-77351-00-00
Unavailable
84
EMBLEM 2
8DG-77352-00-00
Unavailable
84
EMBLEM 2
8EB-77352-00-00
Unavailable
85
PANEL, SUB-FRAME KIT
8CW-W2196-02-00
Unavailable
86
PANEL,SUB-FRAME5
8CW-21916-02-00
Unavailable
87
BRACKET, MAIN TRACK 1
8CW-21943-00-00
Unavailable
88
PATCH 4
8CW-21964-02-00
Unavailable
89
PATCH 5
8CW-21965-02-00
Unavailable
90
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
91
FOOTREST, REAR 1
8DM-27431-03-00
Unavailable
92
FOOTREST, REAR 2
8DM-27441-03-00
Unavailable
93
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
94
EMBLEM 1
8DX-77141-00-00
Unavailable
95
LABEL, WARNING 2
8CY-77762-00-00
Unavailable
96
RIVET, BLIND
90267-48177-00
Unavailable
