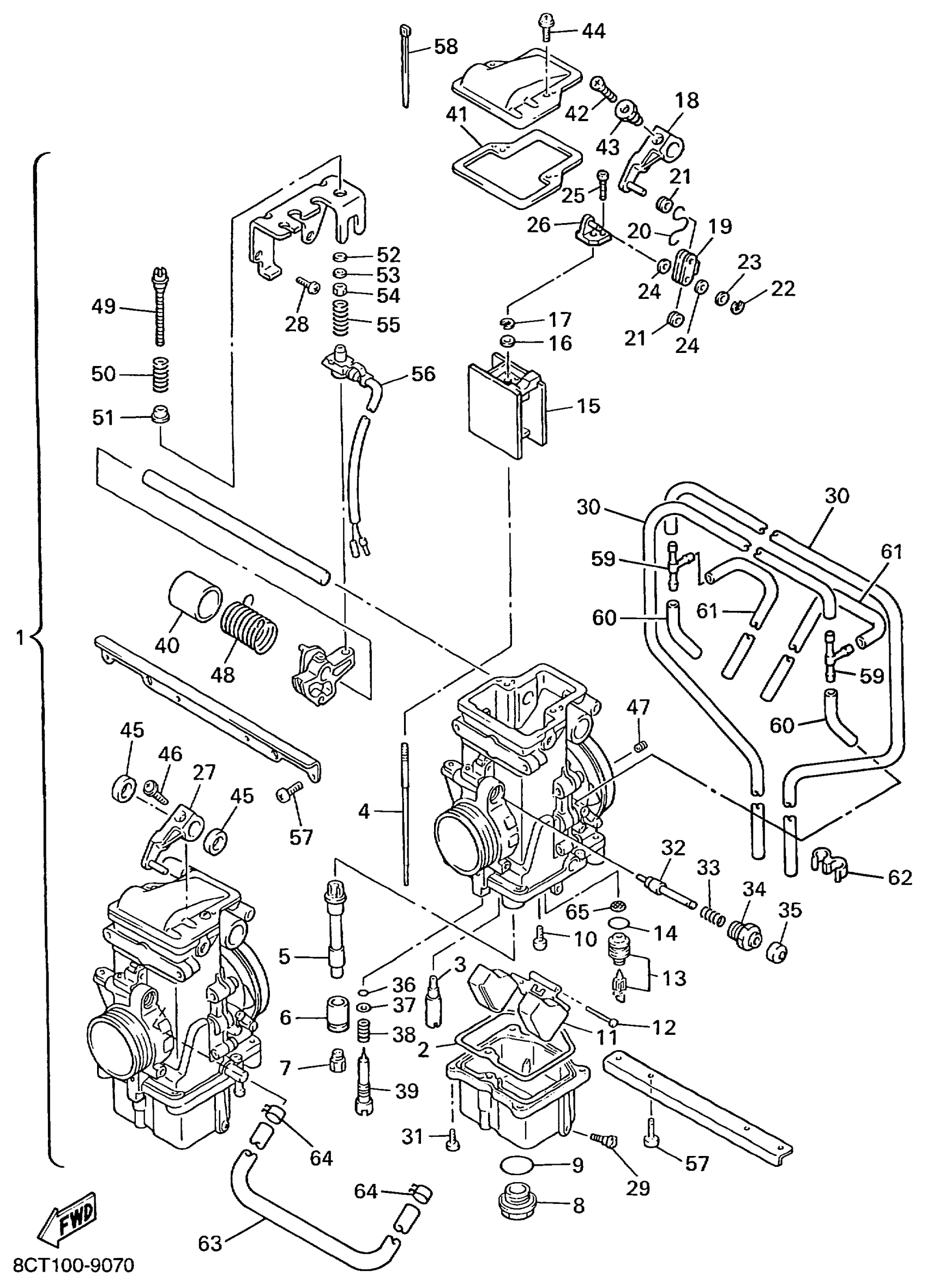

Yamaha VX500ERC (VMAX 500 DELUXE) 8DT2 1999 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

8CJ-14100-10-00

Unavailable

2

O-RING

8AY-14147-00-00

$10.65

3

JET, PILOT (# 45)

3H1-14142-45-00

$11.48

3

JET, PILOT (# 50)

3H1-14142-50-00

$14.25

4

. NEEDLE

8CA-14116-A3-00

Unavailable

5

. NOZZLE, MAIN

8AY-14141-56-00

Unavailable

6

. RING

8CA-14194-00-00

Unavailable

7

JET, MAIN (#140)

3G2-14231-28-00

$11.09

7

JET, MAIN (#145)

3G2-14231-29-00

$11.83

7

JET, MAIN (#150)

3G2-14231-30-A0

$10.72

7

JET, MAIN (#155)

3G2-14231-31-00

$9.63

7

JET,MAIN #142.5

3G2-1423A-79-00

$8.02

7

JET,MAIN #147.5

3G2-1423A-80-A0

$10.52

7

JET,MAIN #152.5

3G2-1423A-81-00

$18.31

7

JET, MAIN (#138.8)

3G2-1423E-55-00

$12.09

7

JET, MAIN (#141.3)

3G2-1423E-56-00

$10.45

7

JET MAIN (#143.8)

3G2-1423E-57-00

$12.58

7

JET, MAIN (#146.3)

3G2-1423E-58-00

$11.71

7

JET, MAIN #148.8

3G2-1423E-59-00

$11.08

7

JET, MAIN (#151.3)

3G2-1423E-60-00

$11.98

7

JET, MAIN (#153.8)

3G2-1423E-61-00

$10.29

7

JET, MAIN (#156.3)

3G2-1423E-62-00

$12.02

8

PLUG, SCREW

500-14115-00-00

$25.29

9

O-RING (541)

558-14147-00-00

$7.54

10

SCREW

2LN-14565-00-00

$5.50

11

. FLOAT

8AY-14185-10-00

Unavailable

12

PIN, FLOAT

537-14186-00-00

$7.28

13

NEEDLE VALVE ASSY

1AE-14190-15-00

$42.76

14

O-RING

8F2-14147-00-00

$2.83

15

. VALVE, THROTTLE 1

8CJ-14112-30-00

Unavailable

16

WASHER

8AB-14227-00-00

$3.54

17

CLIP

256-14919-00-00

$6.17

18

LEVER, STARTER

8CW-14905-00-00

Unavailable

19

. PLATE

8AY-14243-00-00

Unavailable

20

. CLIP

8CD-14137-00-00

Unavailable

21

. RING

8CC-14918-00-00

Unavailable

22

CLIP

3MA-14937-00-00

$0.54

23

GASKET

620-14198-00-00

$3.49

24

GASKET

3GF-14126-00-00

$0.63

25

. SCREW

8CC-14216-00-00

Unavailable

26

CONNECTOR

8CD-14188-00-00

$17.48

27

LEVER,STARTER

8CW-14905-10-00

Unavailable

28

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.52

29

PLUG, DRAIN

3FV-14191-00-00

$21.37

30

. PIPE 1

8CJ-14348-00-00

Unavailable

31

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.78

32

. PLUNGER, STARTER

8CW-14171-00-00

Unavailable

33

. SPRING, PLUNGER

256-14135-00-00

Unavailable

34

. CAP, PLUNGER

1FN-14174-00-00

Unavailable

35

. COVER, PLUNGER CAP

302-14173-00-00

Unavailable

36

O-RING, PILOT SCREW

3H1-14147-00-00

$7.51

37

WASHER, PILOT SCREW

3H1-14962-00-00

$6.43

38

SPRING

5K7-14134-00-00

$10.34

39

SCREW, ADJ.

89A-14565-00-00

$17.83

40

. COLLAR

8AY-14265-00-00

Unavailable

41

. GASKET

8AY-14199-00-00

Unavailable

42

. SCREW, FLAT HEAD (98701-05018-00)

98703-05018-00

Unavailable

43

. RING

8AY-14918-00-00

Unavailable

44

SCREW, PAN HEAD WITH WASHER

97607-04108-00

$5.49

45

. SPACER

583-14264-00-00

Unavailable

46

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.40

47

. PILOT JET, AIR (06)

239-14172-06-00

Unavailable

47

. PILOT JET, AIR (08)

239-14172-08-00

Unavailable

48

SPRING

8CJ-14275-00-00

Unavailable

49

SCREW, THROTTLE

8CC-14122-00-00

$30.68

50

SPRING

8X0-14500-00-00

$17.91

51

RING

8X0-14184-00-00

$20.43

52

WASHER, PLUG SCREW

22F-14117-00-00

$6.38

53

. WASHER

1UF-14952-00-00

Unavailable

54

NUT

89A-14594-00-00

$6.80

55

SPRING, THROTTLE STOP

8X0-14133-00-00

$15.40

56

SWITCH, CARBURETOR

87S-8259A-01-00

$73.57

57

SCREW,PAN HEAD

98502-05014-00

$1.90

58

CLIP, PIPE

35H-14139-00-00

$4.68

59

NIPPLE

4N0-14251-00-00

$8.91

60

. PIPE 1

8CH-14348-00-00

Unavailable

61

HOSE

89A-14987-00-00

$12.62

62

CLIP

87M-14137-00-00

$11.91

63

. PIPE

8CJ-14348-10-00

Unavailable

64

CLIP (3G0)

90467-10039-00

$6.57

65

NET, FILTER

1J7-14994-00-00

$21.52
