- VX500DXW (VMAX 500 DX) 1996
TRACK SUSPENSION 1

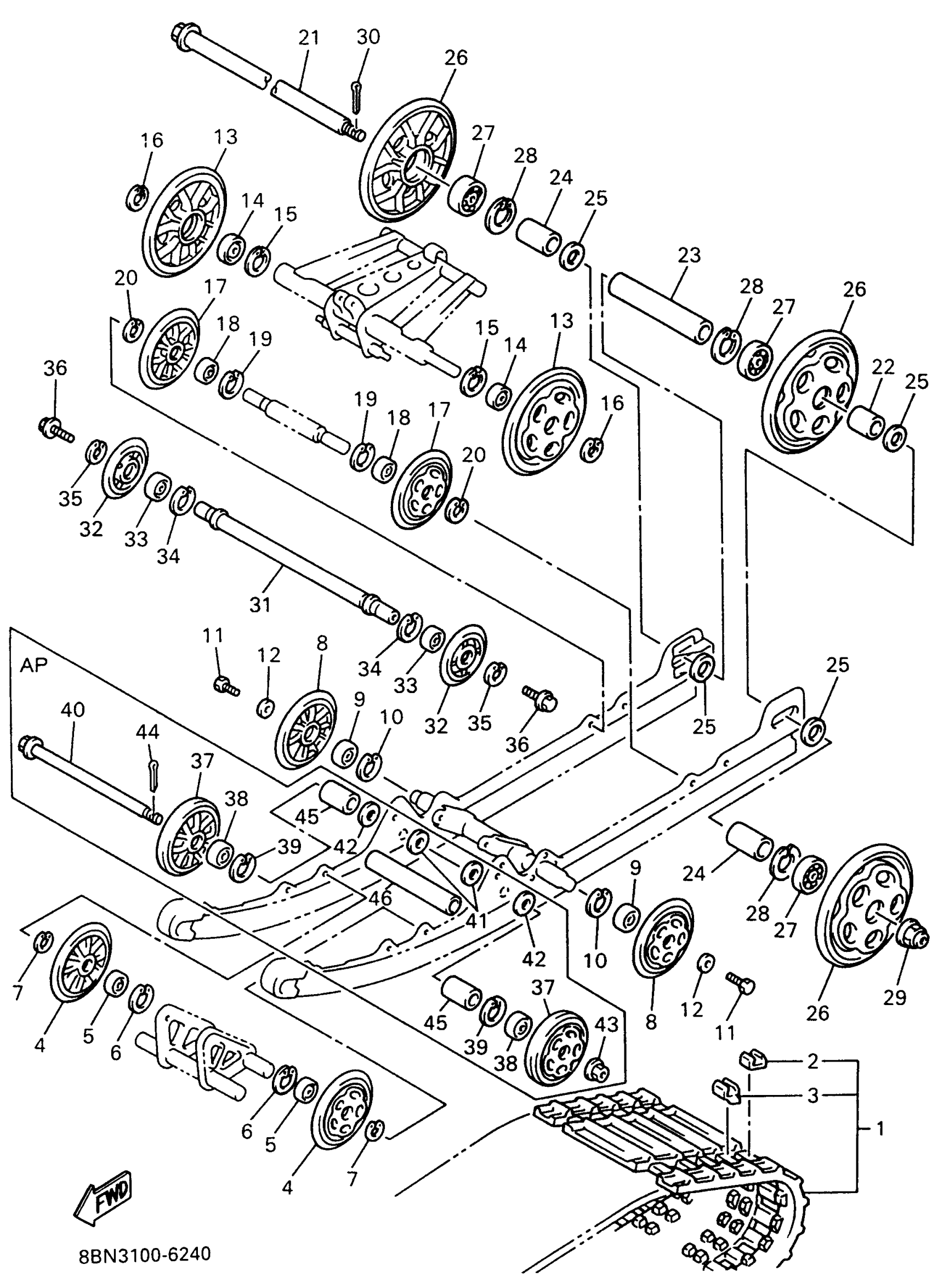

Yamaha VX500DXW (VMAX 500 DX) 1996 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASY
8BN-47110-10-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
89A-47115-01-00
Unavailable
4
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
5
BEARING(8AB)
93306-00444-00
$41.99
6
CIRCLIP(5U8)
99009-42500-00
$8.49
7
CIRCLIP(1AR)
99009-20400-00
$8.49
8
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
9
BEARING(8AB)
93306-00444-00
$41.99
10
CIRCLIP(5U8)
99009-42500-00
$8.49
11
BOLT (8K2)
90109-08559-00
$8.49
12
WASHER (8G1)
90201-08681-00
$7.49
13
SUSPENSION WHEEL COMP.
88R-47320-00-00
Unavailable
14
BEARING(8AB)
93306-00444-00
$41.99
15
CIRCLIP(5U8)
99009-42500-00
$8.49
16
CIRCLIP(1AR)
99009-20400-00
$8.49
17
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
18
BEARING(8AB)
93306-00444-00
$41.99
19
CIRCLIP(5U8)
99009-42500-00
$8.49
20
CIRCLIP(1AR)
99009-20400-00
$8.49
21
REAR AXLE COMP.
8L8-47520-02-00
Unavailable
22
COLLAR
90387-204R3-00
Unavailable
23
COLLAR
90387-20023-00
Unavailable
24
COLLAR
90387-20022-00
Unavailable
25
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
26
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
27
BEARING(8AE)
93306-20469-00
Unavailable
28
CIRCLIP(48Y)
99009-47500-00
Unavailable
29
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
30
PIN, COTTER
91490-30030-00
Unavailable
31
IDLER
89A-47461-01-00
Unavailable
32
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
33
BEARING(8AB)
93306-00444-00
$41.99
34
CIRCLIP(5U8)
99009-42500-00
$8.49
35
CIRCLIP(1AR)
99009-20400-00
$8.49
36
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
37
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
38
BEARING(8AB)
93306-00444-00
$41.99
39
CIRCLIP(5U8)
99009-42500-00
$8.49
40
SHAFT 5
82M-47487-00-00
Unavailable
41
WASHER, PLATE
90201-164P0-00
Unavailable
42
WASHER, PLATE(33Y)
90201-164H4-00
Unavailable
43
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
44
PIN, COTTER
91490-30030-00
Unavailable
45
COLLAR
90387-166M8-00
Unavailable
46
COLLAR
90387-160M7-00
Unavailable
