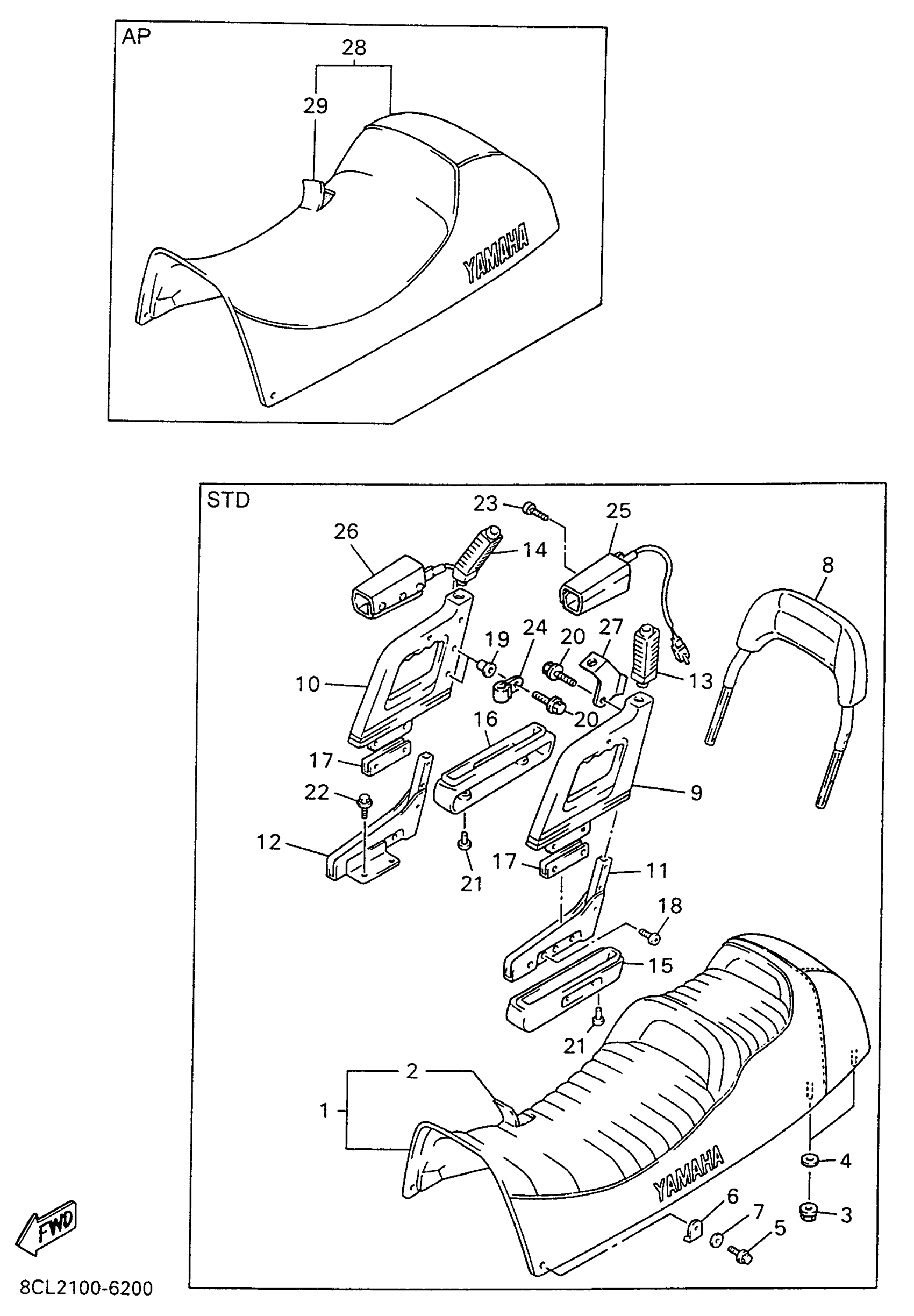

Yamaha VX500DXW (VMAX 500 DX) 1996 SEAT Diagram
#
1
DOUBLE SEAT ASY
8CL-24730-01-00
Unavailable
2
COVER,SEAT
8CL-2470F-01-00
Unavailable
3
NUT, NYLON
95717-08300-00
$2.70
4
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
5
BOLT, SMALL FLANGE
95027-06025-00
$4.16
6
WASHER, CLAW
90214-14068-00
Unavailable
7
WASHER, PLATE(36Y)
90201-063J2-00
$5.60
8
SEAT BACK ASSEMBLY
8BB-24790-00-00
Unavailable
9
ASSIST, GRIP
8Y7-2474A-01-00
Unavailable
10
ASSIST, GRIP 2
8Y7-2474W-01-00
Unavailable
11
BRACKET, ASSIST GRIP 1
8CL-2474H-00-00
Unavailable
12
BRACKET, ASSIST GRIP 2
8CL-2474J-00-00
Unavailable
13
PROTECTOR, 1
8Y7-2476U-00-00
Unavailable
14
PROTECTOR, 2
8Y7-2476V-00-00
Unavailable
15
COVER 1
8Y7-24796-01-00
$187.99
16
COVER, 2
8Y7-2475X-01-00
Unavailable
17
WASHER, SEAT
8Y7-24746-00-00
Unavailable
18
SCREW, BINDING
98907-08016-00
Unavailable
19
COLLAR(88T)
90387-074X6-00
Unavailable
20
BOLT, FLANGE
95817-06025-00
Unavailable
21
RIVET
90269-06001-00
Unavailable
22
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
23
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
24
CLAMP
90465-08028-00
Unavailable
25
ASSIST GRIP WARMER ASSEMBLY 1
88T-2474B-00-00
Unavailable
26
ASSIST GRIP WARMER ASSEMBLY 2
88T-2474C-00-00
Unavailable
27
BRACKET, SEAT
8CL-24718-00-00
Unavailable
28
SINGLE SEAT ASY
8AB-24710-10-00
Unavailable
29
COVER,SEAT
8AB-2470F-10-00
Unavailable
