RADIATOR - HOSE

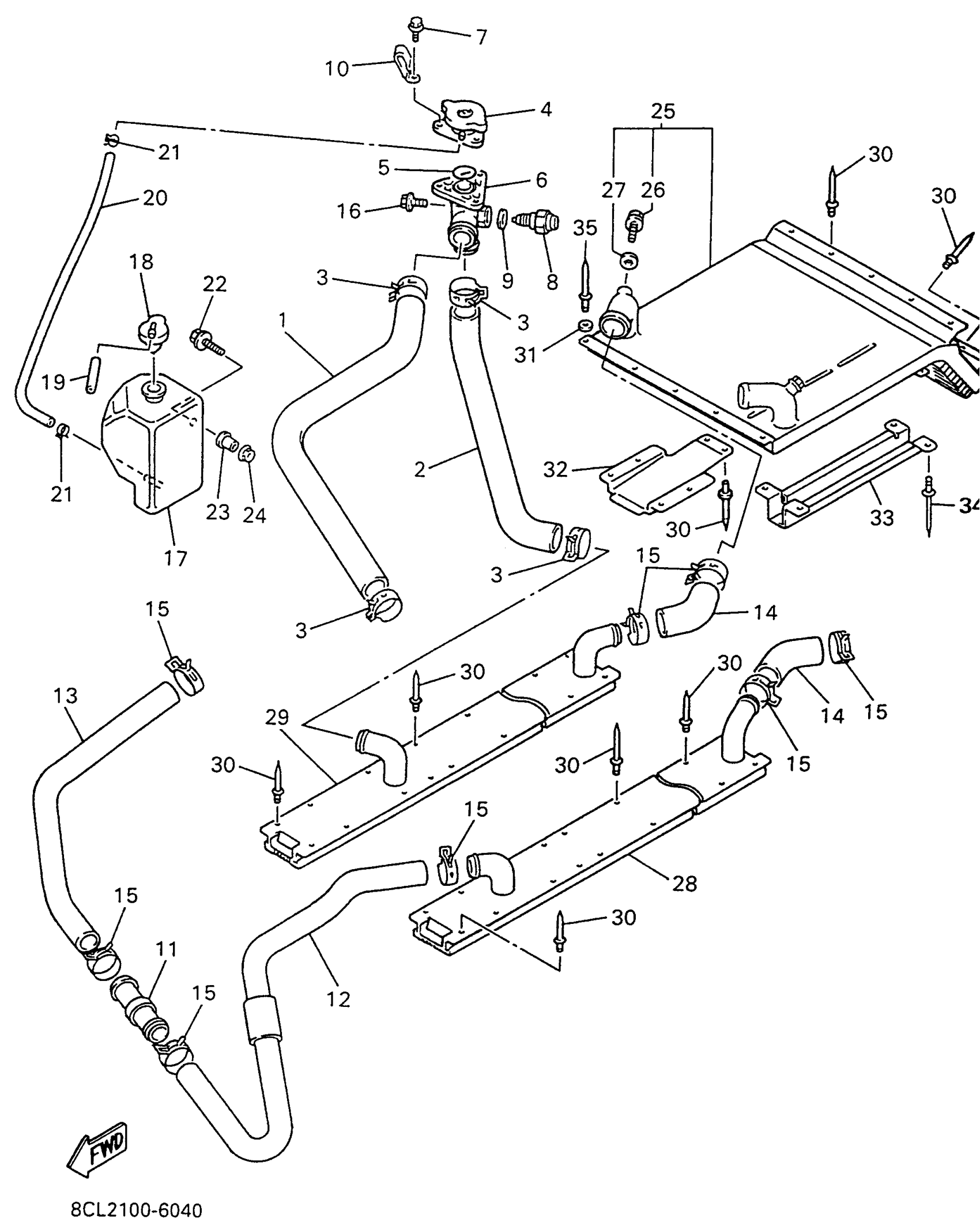

Yamaha VX500DXW (VMAX 500 DX) 1996 RADIATOR - HOSE Diagram
#
1
PIPE 2
8AB-12482-00-00
Unavailable
2
PIPE 3
8AB-12483-00-00
Unavailable
3
CLIP (8M6)
90467-28046-00
$16.99
4
SUPT, FILLER NECK
1FK-12591-00-00
Unavailable
5
O-RING(1KT)
93210-27778-00
$8.49
6
JOINT, HOSE 1
86M-12581-00-00
Unavailable
7
BOLT, FLANGE
95817-06016-00
$2.75
8
THERMO SWITCH ASSEMBLY
83M-82560-01-00
Unavailable
9
GASKET
90430-16048-00
Unavailable
10
CLAMP(51Y)
90465-08277-00
Unavailable
11
JOINT, HOSE 1
8M6-12581-00-00
Unavailable
12
PIPE 4
8AB-12484-10-00
Unavailable
13
PIPE 5
8AB-12485-10-00
Unavailable
14
PIPE 6
89L-12476-00-00
Unavailable
15
CLIP (8M6)
90467-28046-00
$16.99
16
BOLT, FLANGE
95817-06016-00
$2.75
17
TANK, RECOVERY
8AB-21871-00-00
Unavailable
18
CAP
89A-21815-00-00
Unavailable
19
HOSE (L70)
90445-112E0-00
Unavailable
20
HOSE (L600)
90445-083J5-00
Unavailable
21
CLIP (16G)
90467-08021-00
Unavailable
22
BOLT, FLANGE
95817-06020-00
Unavailable
23
COLLAR(3SX)
90387-065X7-00
Unavailable
24
NUT (21W)
90179-06403-00
Unavailable
25
HEAT EXCHANGER ASY
89L-12440-01-00
Unavailable
26
BOLT, FLANGE
95817-06012-00
Unavailable
27
GASKET (4V2)
90430-06166-00
Unavailable
28
HEAT EXCHANGER
8AB-1240E-02-00
Unavailable
29
HEAT EXCHANGER
8AB-1240F-02-00
Unavailable
30
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
31
WASHER, PLATE
90201-05023-00
Unavailable
32
PROTECTOR
8BN-12498-01-00
Unavailable
33
PROTECTOR, FRAME
89L-21978-00-00
Unavailable
34
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
35
RIVET, BLIND(3LC)
90267-48147-00
Unavailable
