Description

Price

1

IGNITION COIL ASSY

8AB-82310-07-00

$85.99

2

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

3

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

8DG-82370-00-00

$49.99

6

C.D.I. UNIT ASSEMBLY

8AB-85540-00-00

Unavailable

7

NUT, FLANGE(4MV)

95707-06500-00

$1.23

8

BOLT, FLANGE

95817-06016-00

$2.75

9

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

10

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

11

BOLT, FLANGE

95817-06016-00

$2.75

12

WIRE HARNESS ASSEMBLY

8AB-82590-10-00

Unavailable

13

WIRE, LEAD

8AB-8471G-00-00

Unavailable

14

CLAMP

90464-20031-00

Unavailable

15

BAND

341-26397-01-00

Unavailable

16

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

Unavailable

17

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

18

NUT, FLANGE(4MV)

95707-06500-00

$1.23

19

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

20

CAP, KEY

526-82579-00-00

Unavailable

21

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

22

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable

23

SWITCH

8JD-82917-00-00

Unavailable

24

BUZZER

8CL-83383-00-00

Unavailable

25

NUT,SELF-LOCKING

95607-06200-00

Unavailable

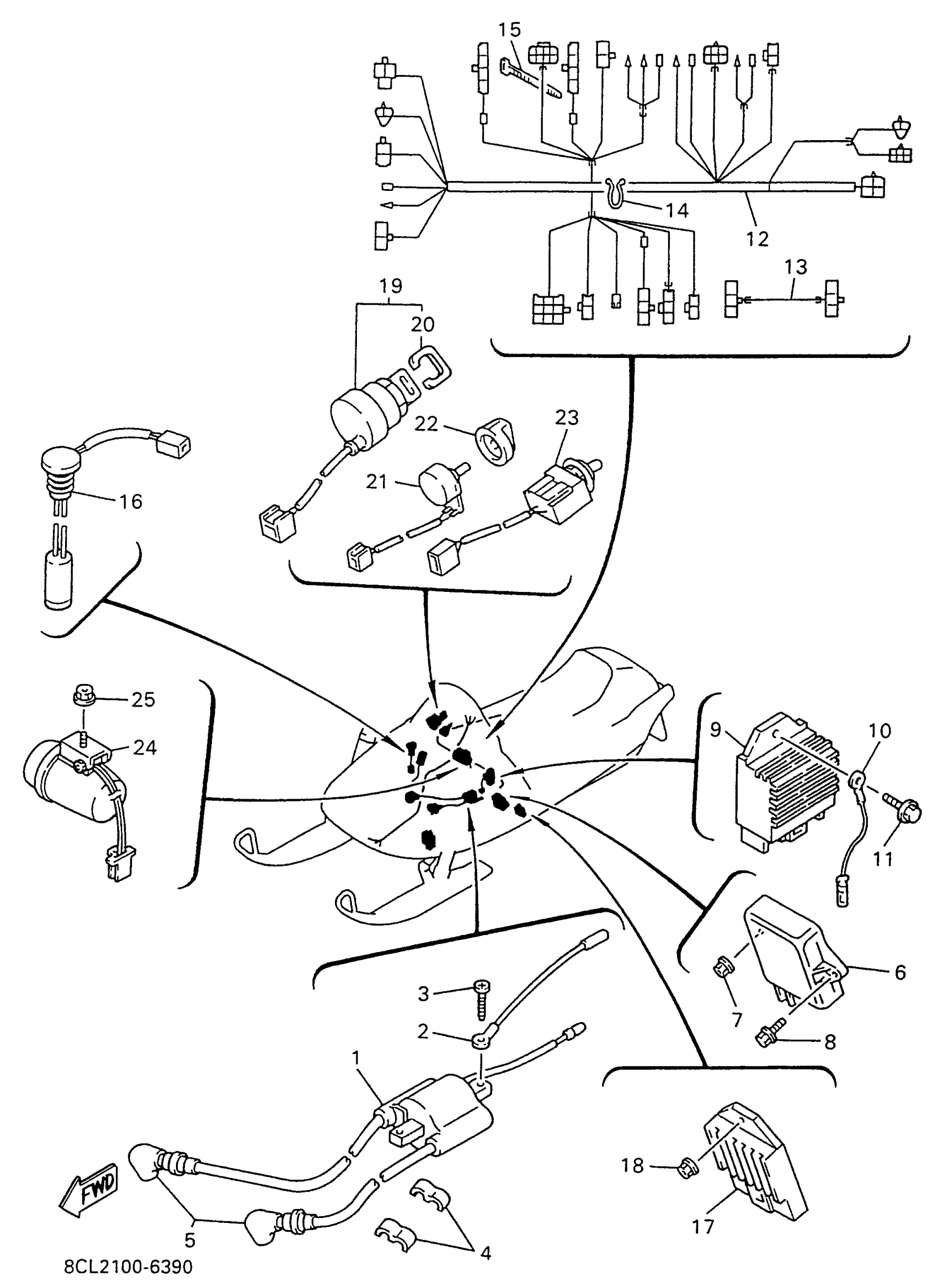

Yamaha VX500DXW (VMAX 500 DX) 1996 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

WIRE, SUB-LEAD

SCREW, TAPPING(65J)

CLAMP, CORD

PLUG CAP ASSY

C.D.I. UNIT ASSEMBLY

NUT, FLANGE(4MV)

BOLT, FLANGE

RECTIFIER & REGULATOR ASSY

WIRE, SUB-LEAD

BOLT, FLANGE

WIRE HARNESS ASSEMBLY

WIRE, LEAD

CLAMP

BAND

OIL LEVEL GAUGE ASSY

VOLTAGE REGULATOR ASSY

NUT, FLANGE(4MV)

MAIN SWITCH ASSY

CAP, KEY

RESISTOR, VARIABLE

KNOB, VARIABLE RESISTOR

SWITCH

BUZZER

NUT,SELF-LOCKING
