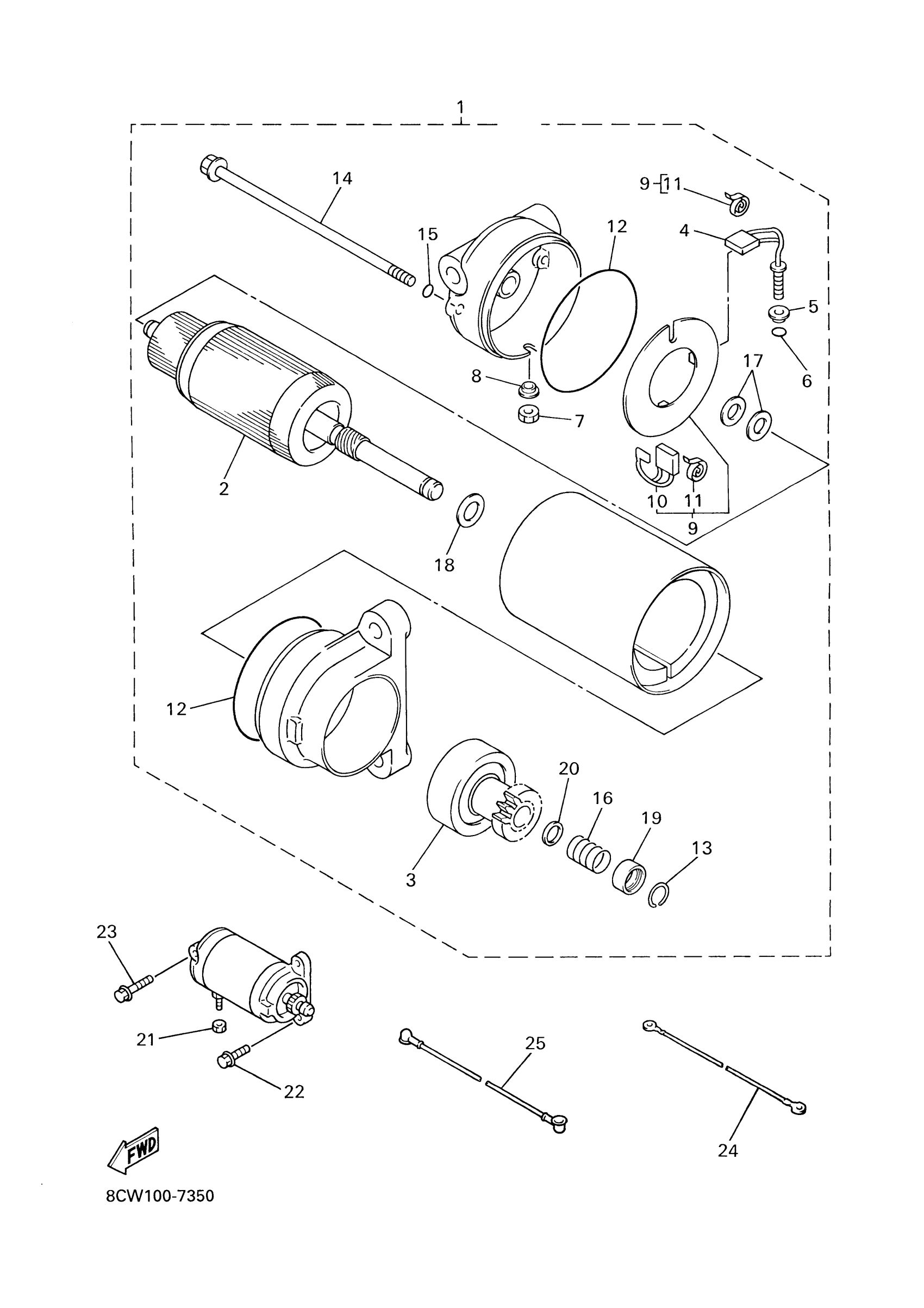

Yamaha VX500DXF (VMAX 500 DELUXE (ELEC START)) 8DT4 2001 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR ASSY

8CW-81800-01-00

Unavailable

2

. ARMATURE ASSY

8CW-81850-00-00

Unavailable

3

. CLUTCH, OVER RUN

8CW-81832-00-00

Unavailable

4

. BRUSH 1

7GA-81811-50-00

Unavailable

5

. GROMMET

73A-81829-50-00

Unavailable

6

. O-RING

73A-81847-00-00

Unavailable

7

NUT

4H7-81872-00-00

Unavailable

8

. GROMMET

73A-81829-00-00

Unavailable

9

BRUSH HOLDER ASSY

4H7-81840-01-00

$82.99

10

.. BRUSH 2

8CW-81812-00-00

Unavailable

11

SPRING, BRUSH

8L6-81813-50-00

Unavailable

12

O-RING

4H7-81844-00-00

Unavailable

13

RING

8L6-81834-50-00

$2.60

14

BOLT

3GD-81826-00-00

$28.99

15

O-RING

8L6-81847-50-00

$3.28

16

. SPRING, LEVER

8CW-81836-00-00

Unavailable

17

WASHER 1

4H7-81843-50-00

Unavailable

18

WASHER

8L6-81835-50-00

Unavailable

19

. RING, STOP

8CW-81833-00-00

Unavailable

20

WASHER, PLATE

8BB-8185A-00-00

Unavailable

21

NUT(6TA)

95317-06600-00

Unavailable

22

BOLT, SMALL FLANGE

95027-08030-00

Unavailable

23

BOLT, FLANGE(4ES)

95027-08080-00

Unavailable

24

WIRE, MINUS LEAD

8CY-82116-00-00

Unavailable

25

. WIRE, LEAD

8DY-82117-00-00

Unavailable
