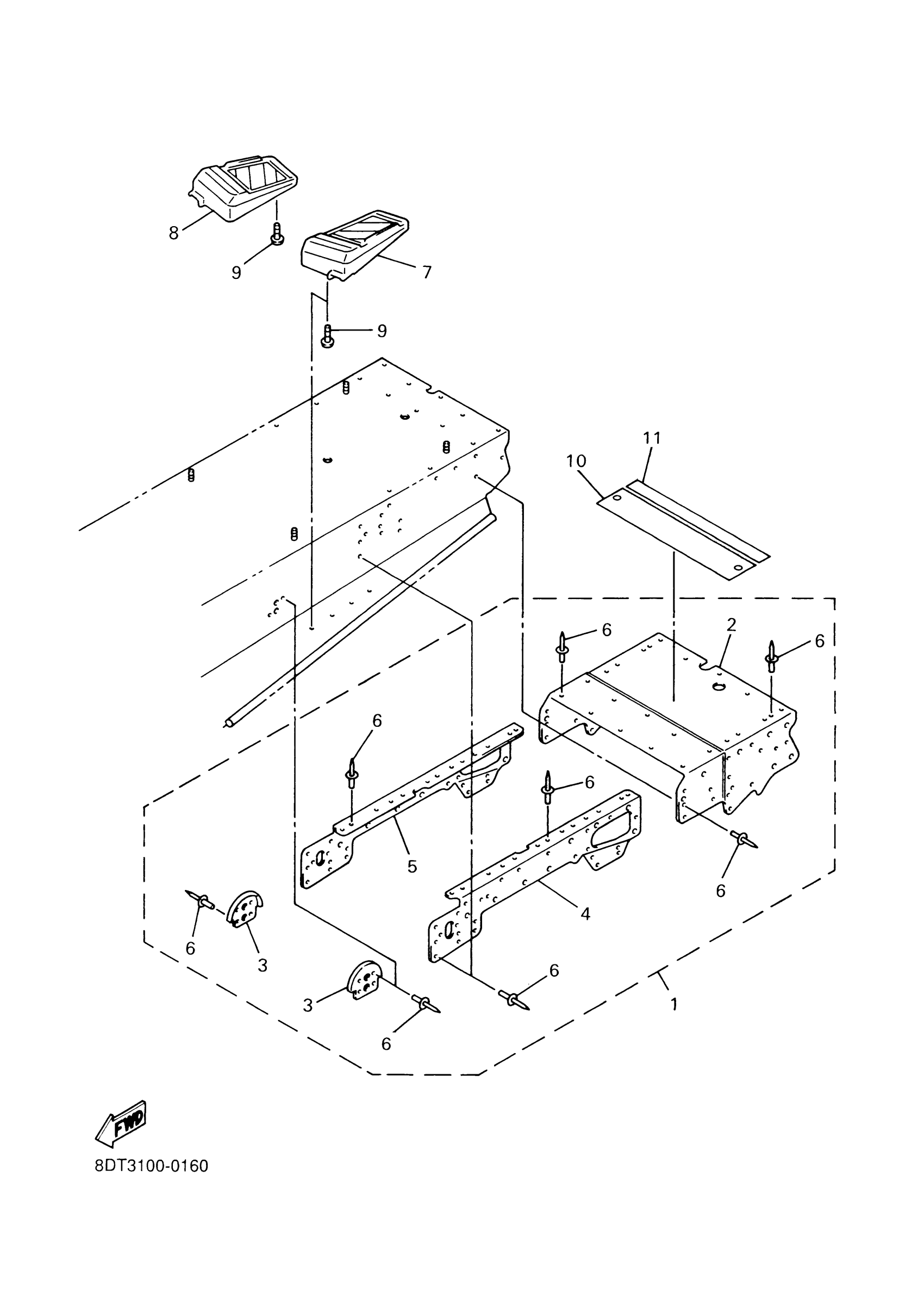

Yamaha VX500DXF (VMAX 500 DELUXE (ELEC START)) 8DT4 2001 FRAME 2 Diagram

#

Description

Price

1

PANEL, SUB-FRAME KIT

8CW-W2196-10-00

Unavailable

2

. PANEL, SUB FRAME 5

8CW-21916-10-00

Unavailable

3

BRACKET, MAIN TRACK 1

8CW-21943-00-00

$3.12

4

PATCH 4

8CW-21964-02-00

Unavailable

5

PATCH 5

8CW-21965-02-00

Unavailable

6

RIVET, BLIND(8CR)

90267-47186-00

$2.97

7

FOOTREST, REAR 1

8DM-27431-03-00

Unavailable

8

FOOTREST, REAR 2

8DM-27441-03-00

$34.99

9

SCREW, TAPPING(4TV)

90167-05078-00

$8.49

10

EMBLEM 1

8DX-77141-00-00

Unavailable

11

LABEL, WARNING 2

8CY-77762-00-00

Unavailable
