- VX500DXF (VMAX 500 DELUXE (ELEC START)) 8DT4 2001
ELECTRICAL 1

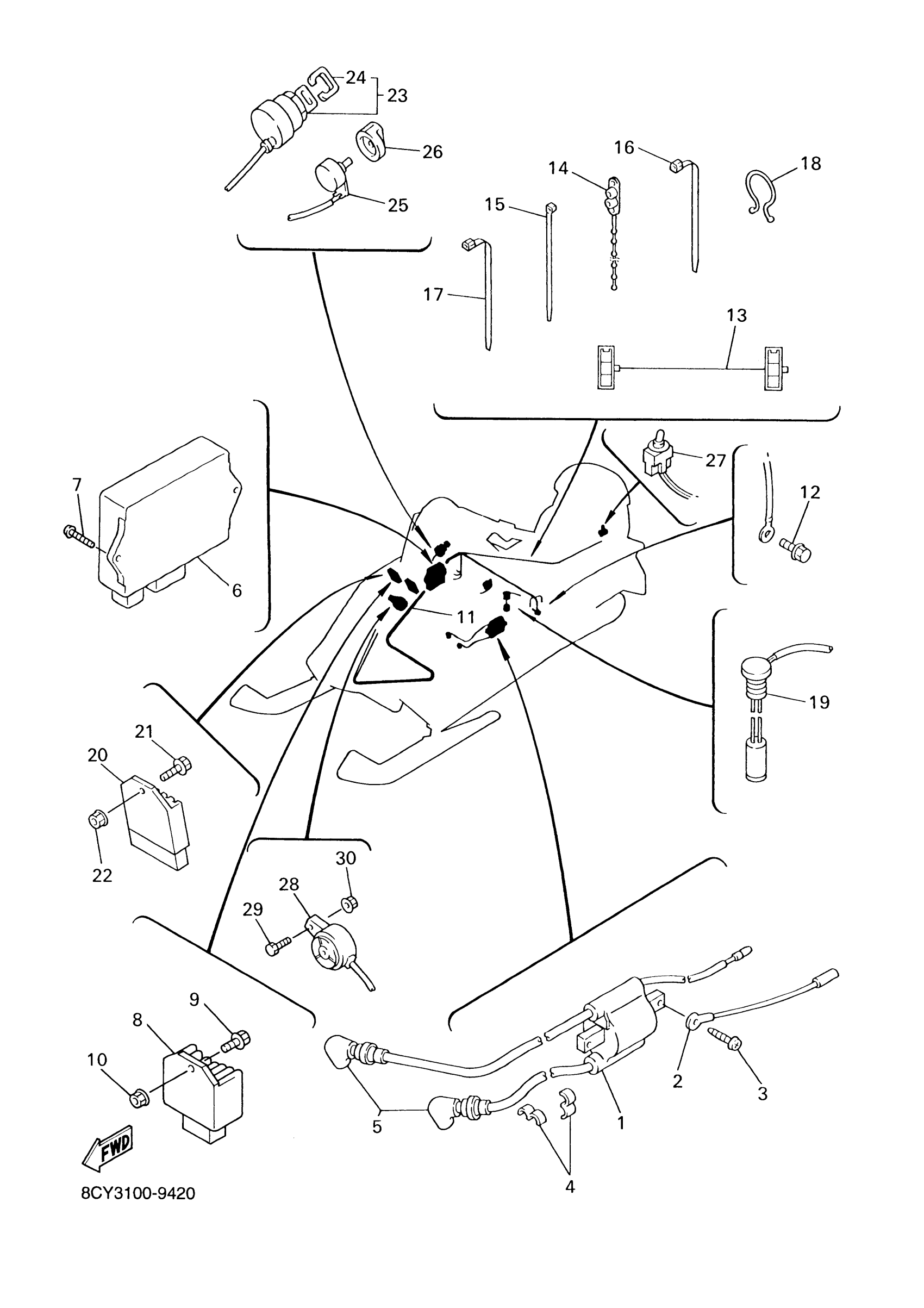

Yamaha VX500DXF (VMAX 500 DELUXE (ELEC START)) 8DT4 2001 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8AB-82310-07-00
$85.99
2
WIRE, SUB-LEAD
87D-82318-00-00
Unavailable
3
SCREW, TAPPING(65J)
97780-60625-00
Unavailable
4
CLAMP, CORD
861-82361-00-00
Unavailable
5
PLUG CAP ASSY
8DG-82370-00-00
$49.99
6
C.D.I. UNIT ASSY
8CJ-85540-01-00
Unavailable
7
SCREW, TAPPING(65J)
97780-60625-00
Unavailable
8
RECTIFIER & REGULATOR ASSY
8DX-81960-00-00
Unavailable
9
BOLT, FLANGE
95817-06016-00
$2.75
10
NUT, FLANGE(4MV)
95707-06500-00
$1.23
11
WIRE HARNESS ASSY
8CJ-82590-10-00
Unavailable
12
BOLT, FLANGE
95817-06010-00
$4.73
13
WIRE, LEAD
8CR-8471G-00-00
Unavailable
14
CLAMP
90464-20031-00
Unavailable
15
CLAMP(4FM)
90464-15195-00
$4.41
16
CLAMP(4FM)
90464-15195-00
$4.41
17
CLAMP
90464-13077-00
Unavailable
18
CLAMP
90464-25267-00
Unavailable
19
OIL LEVEL GAUGE ASSY
8CR-85720-02-00
Unavailable
20
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
21
BOLT, FLANGE
95817-06016-00
$2.75
22
NUT, FLANGE(4MV)
95707-06500-00
$1.23
23
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
24
CAP, KEY
526-82579-00-00
Unavailable
25
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
26
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
27
. SWITCH
8CY-82917-00-00
Unavailable
28
BUZZER
8CW-83383-00-00
Unavailable
29
BOLT(3JK)
97027-05020-00
Unavailable
30
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
