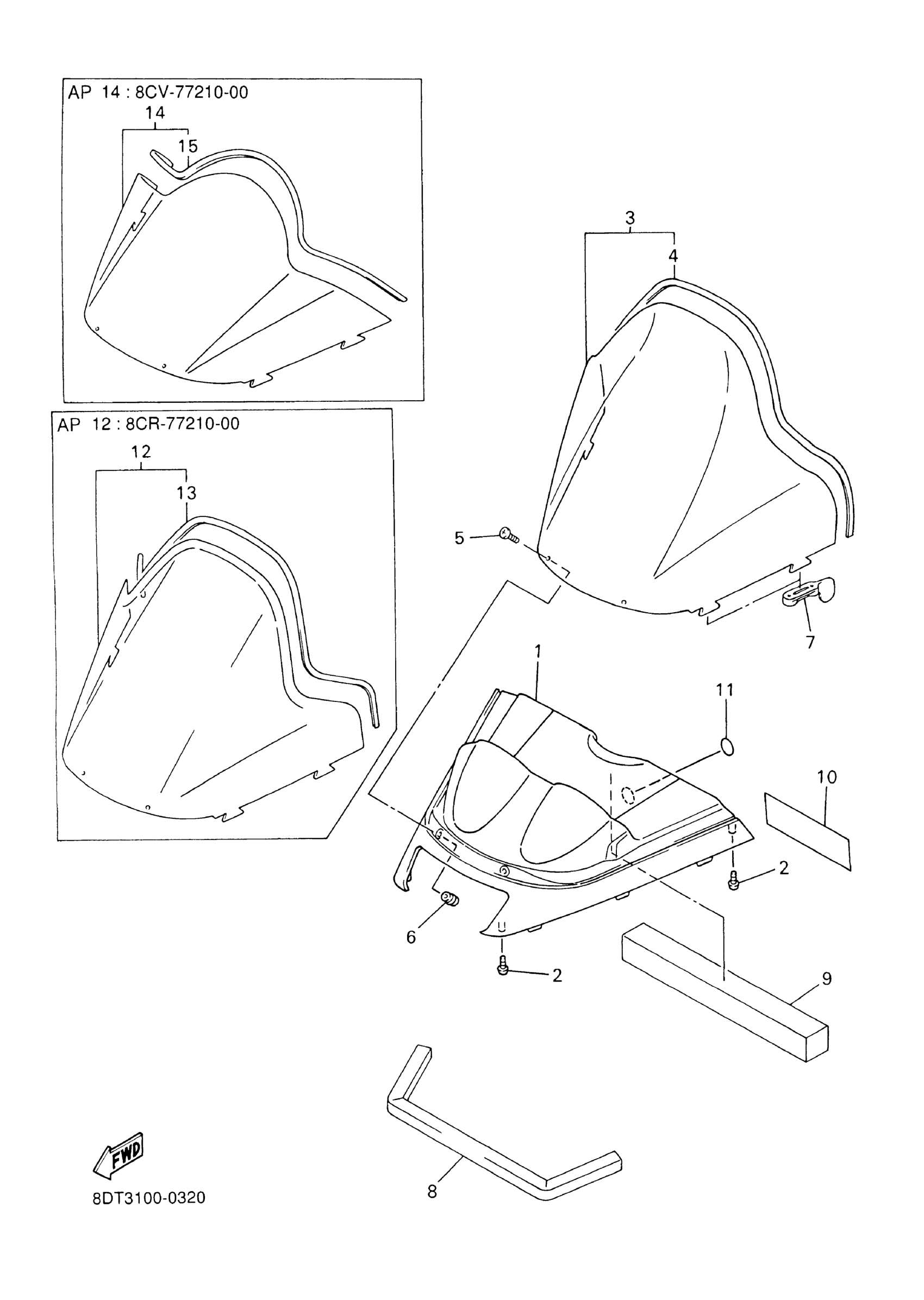

Yamaha VX500DXD (VMAX 500 DELUXE (ELEC START)) 8DT3 2000 WINDSHIELD Diagram

COVER, HEADLIGHT

8DF-77251-01-00

Unavailable

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

WINDSHIELD COMP.

8DM-77210-00-00

Unavailable

TRIM, UPPER

8DM-77213-00-00

Unavailable

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

NUT(1KT)

90179-05523-00

$8.49

FASTNER

82H-77223-00-00

$9.99

DAMPER, NOISE 19

8CR-77279-00-00

Unavailable

SHIELD, NOISE 2

8CR-2199J-00-00

$59.99

LABEL, WARNING 1

8DM-77761-00-00

Unavailable

. LABEL, WARNING

8DY-77761-00-00

Unavailable

EMBLEM

4XV-2341B-00-00

$28.99

WINDSHIELD, VMAX

8CR-77210-00-XX

Unavailable

TRIM,UPPER

87K-77213-00-00

Unavailable

WINDSHIELD COMP. (8CV-77210-00-00)

8CV-77210-00-XX

Unavailable

TRIM,UPPER

87K-77213-00-00

Unavailable
