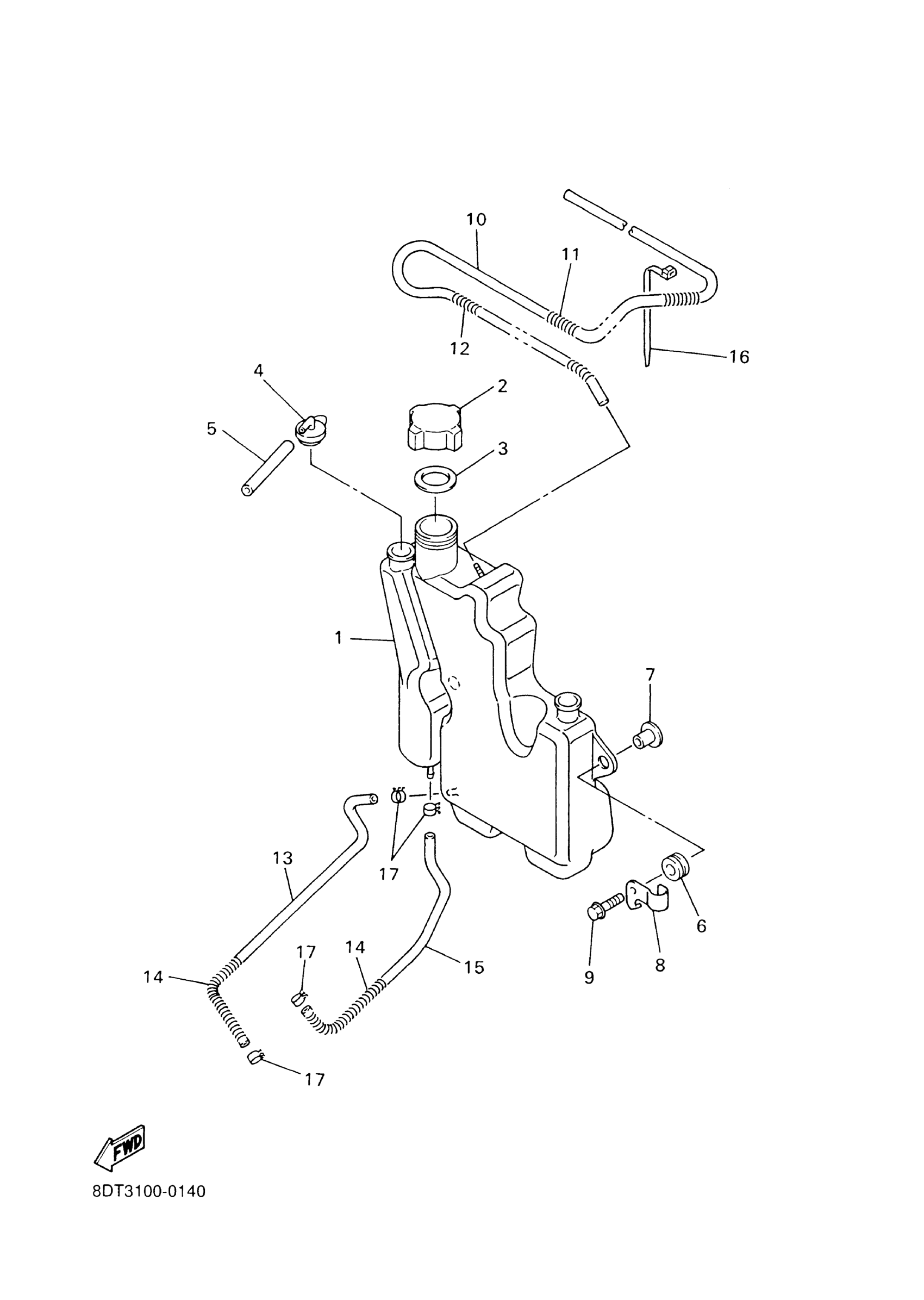

Yamaha VX500DXD (VMAX 500 DELUXE (ELEC START)) 8DT3 2000 OIL TANK Diagram

TANK, OIL

8CR-21751-10-00

Unavailable

BODY, CAP

8LU-21771-00-00

$31.99

GASKET, TANK (867)

90430-31003-00

$10.49

CAP

89A-21815-00-00

$24.99

HOSE (L70)

90445-112E0-00

$8.49

GROMMET 839774310000

90480-14023-00

$7.49

COLLAR(52E)

90387-063G3-00

$8.49

CLAMP

90462-08244-00

Unavailable

BOLT, FLANGE

95817-06025-00

Unavailable

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

SPRING, COMPRESSION (10L)

90501-08668-00

$11.49

SPRING, COMPRESSION(3JK)

90501-101J5-00

$19.99

TUBE, FLEXIBLE VINYL

91A30-05033-00

Unavailable

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

HOSE (L600)

90445-083J5-00

$10.49

CLAMP(4FM)

90464-15195-00

Unavailable

CLIP (8A1)

90467-09026-00

Unavailable
