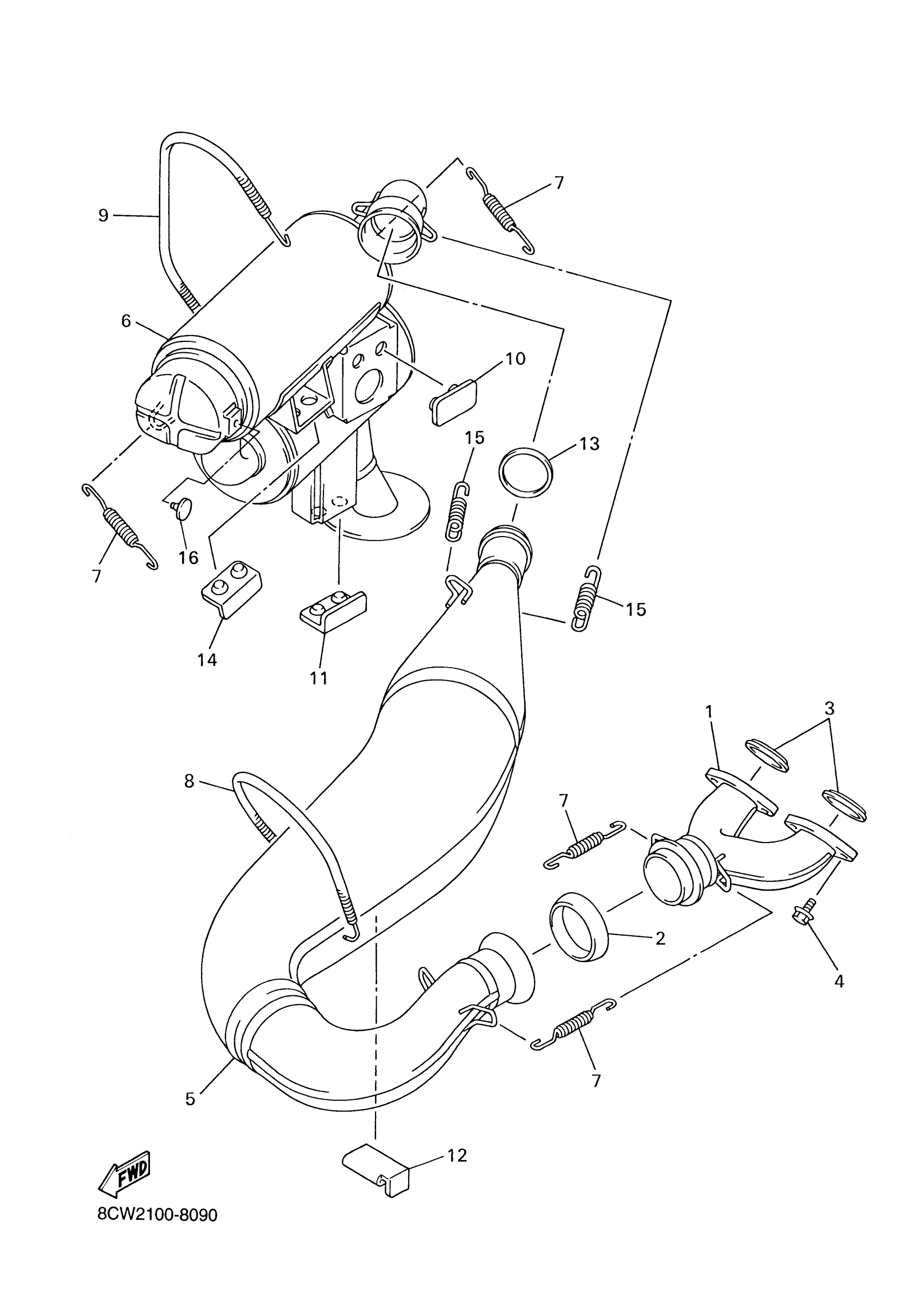

Yamaha VX500DXD (VMAX 500 DELUXE (ELEC START)) 8DT3 2000 EXHAUST Diagram

EXHAUST PIPE ASSY 1

8CR-14610-00-00

Unavailable

GASKET, MUFFLER

8CA-14714-00-00

$61.99

GASKET, EXHAUST PIPE

8CR-14613-00-00

$29.99

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

EXHAUST PIPE ASSY 2

8CR-14620-01-00

Unavailable

SECOND SILENCER,MUFFLER

8CR-14640-01-00

Unavailable

SPRING, TENSION (8R7)

90506-20272-00

$11.49

SPRING, TENSION

90506-16335-00

Unavailable

SPRING, TENSION

90506-16504-00

Unavailable

PROTECTOR, MUFFLER 2

8A5-14728-02-00

Unavailable

PROTECTOR, MUFFLER 2

83R-14728-01-00

$33.99

PROTECTER, MUFFLER 3

8CR-14738-00-00

Unavailable

RING

8CH-14633-00-00

$14.49

PROTECTOR, MUFFLER 2

8CR-14728-00-00

Unavailable

SPRING, TENSION (8M6)

90506-20093-00

$9.49

PLUG

90338-09265-00

Unavailable
