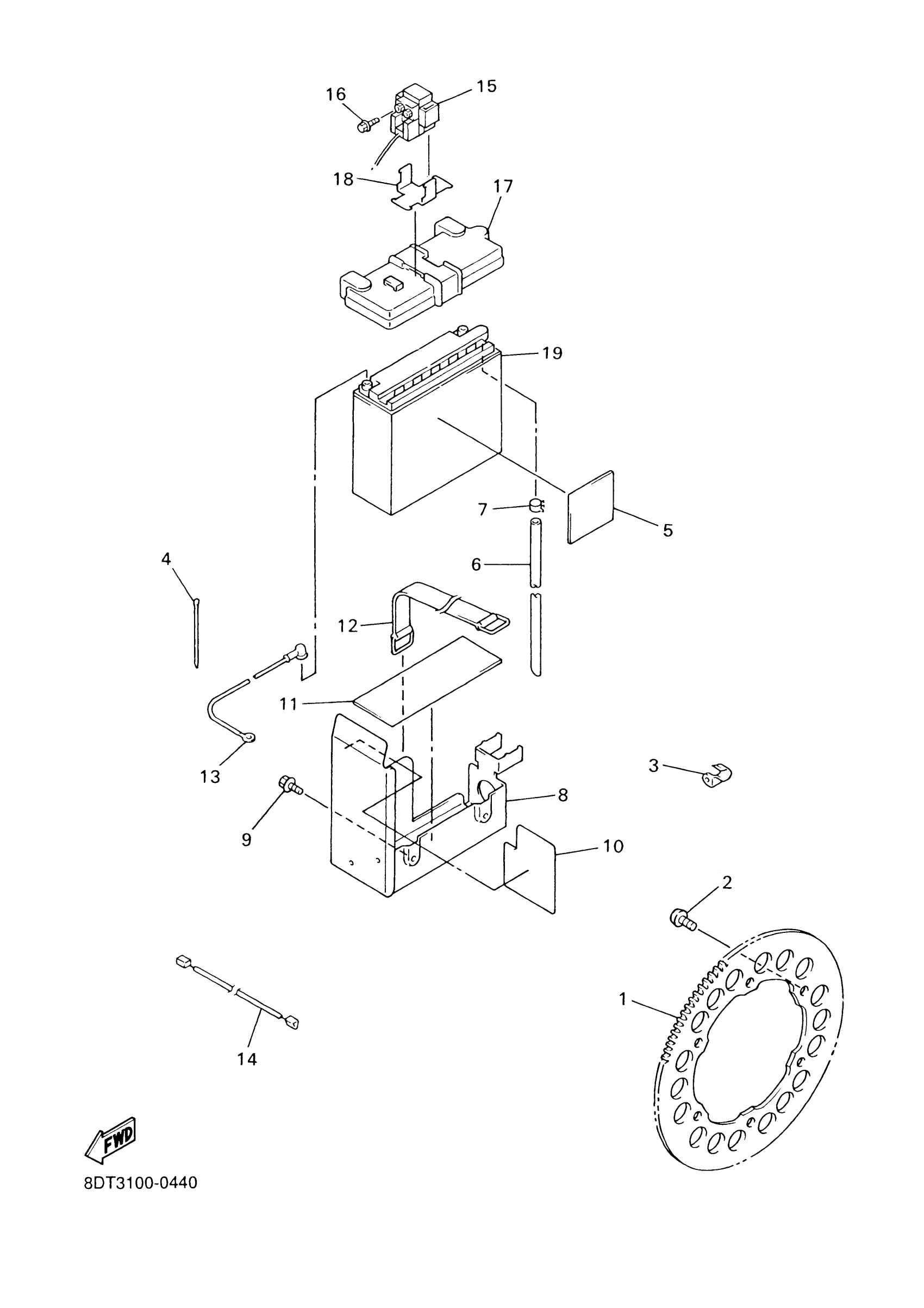

Yamaha VX500DXD (VMAX 500 DELUXE (ELEC START)) 8DT3 2000 ELECTRICAL 2 Diagram

GEAR 1

8DM-1760A-18-00

Unavailable

BOLT,CAP

8DV-17617-10-00

$4.63

. CLAMP

90465-10381-00

Unavailable

CLAMP(4FM)

90464-15195-00

$4.41

DAMPER

8CW-82176-00-00

Unavailable

PIPE (L320)

8CW-8235W-01-00

Unavailable

CLIP(41W)

90467-08092-00

$9.49

. BRACKET, BATTERY

8CW-2199G-00-00

Unavailable

BOLT, FLANGE

95817-06014-00

Unavailable

. SHIELD, HEAT

8CW-2199H-00-00

Unavailable

SEAT, BATTERY

84N-82122-00-00

$6.99

BAND, BATTERY

8CY-82131-00-00

$12.99

WIRE, PLUS LEAD

8DY-82115-00-00

Unavailable

. WIRE, SUB LEAD

8DY-82509-00-00

Unavailable

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

$28.99

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

COVER, BATTERY

8DX-82129-01-00

Unavailable

. HOLDER, RELAY

8CY-81952-00-00

Unavailable

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable
