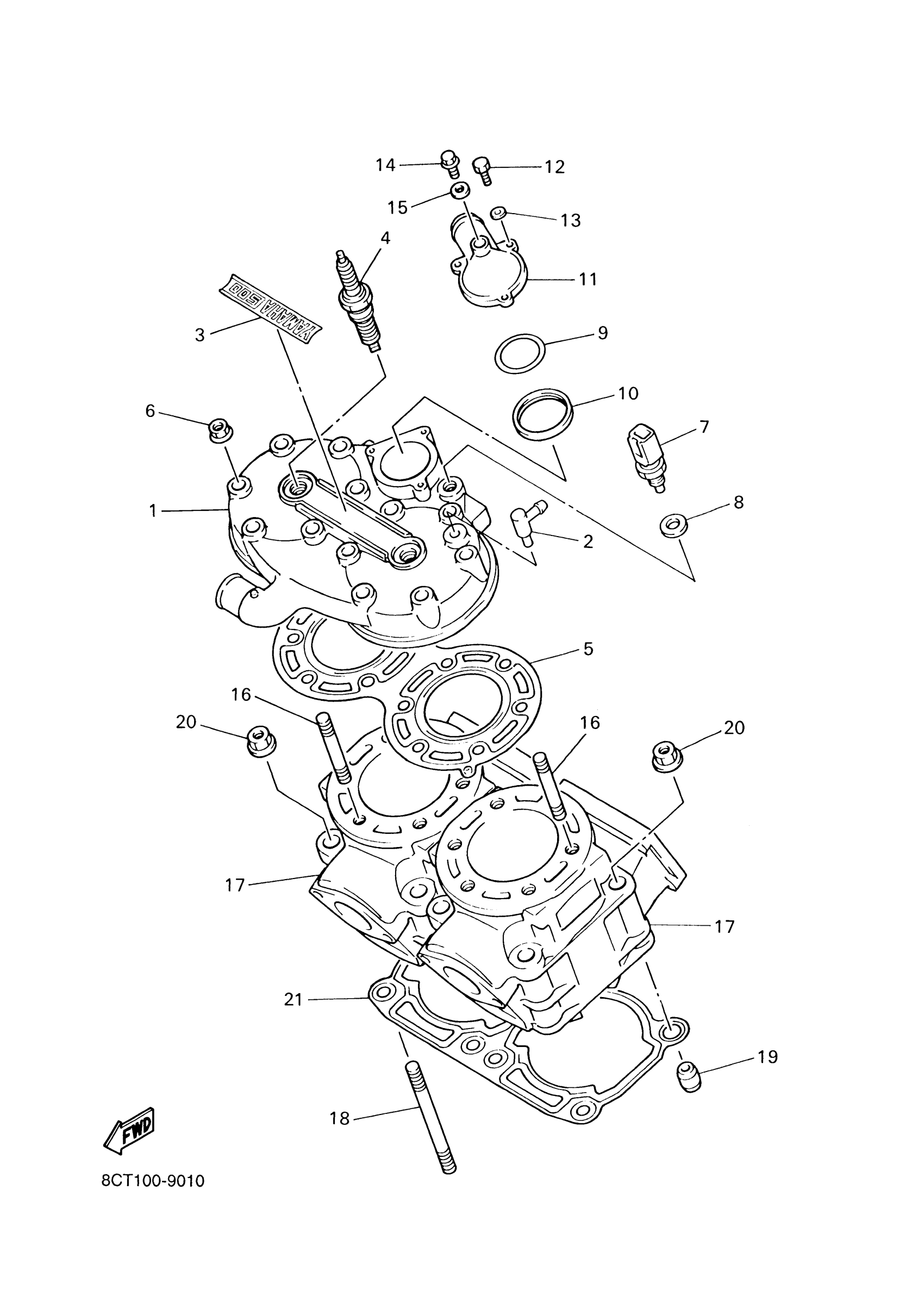

Yamaha VX500D (VMAX 500) 8CJ4 2000 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

8CJ-11111-11-00

Unavailable

2

JOINT 1

8CH-12469-00-00

Unavailable

3

EMBLEM

8CJ-1111K-00-00

Unavailable

4

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

Unavailable

5

GASKET, CYLINDER HEAD 1

8CJ-11181-00-00

Unavailable

6

NUT, FLANGE(JN5)

95707-08500-00

$3.13

7

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

8

WASHER, PLATE

90201-12790-00

$9.49

9

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

10

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

11

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

WASHER(6TA)

92907-06600-00

$2.72

14

BOLT, FLANGE

95817-06012-00

$1.43

15

GASKET (4V2)

90430-06166-00

$3.76

16

BOLT, STUD (5X4)

90116-08392-00

Unavailable

17

CYLINDER 1

8CJ-11311-00-00

Unavailable

18

BOLT, STUD(8AB)

90116-10574-00

Unavailable

19

PIN, DOWEL

99530-14016-00

Unavailable

20

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

21

GASKET, CYLINDER

8CR-11351-00-00

Unavailable
