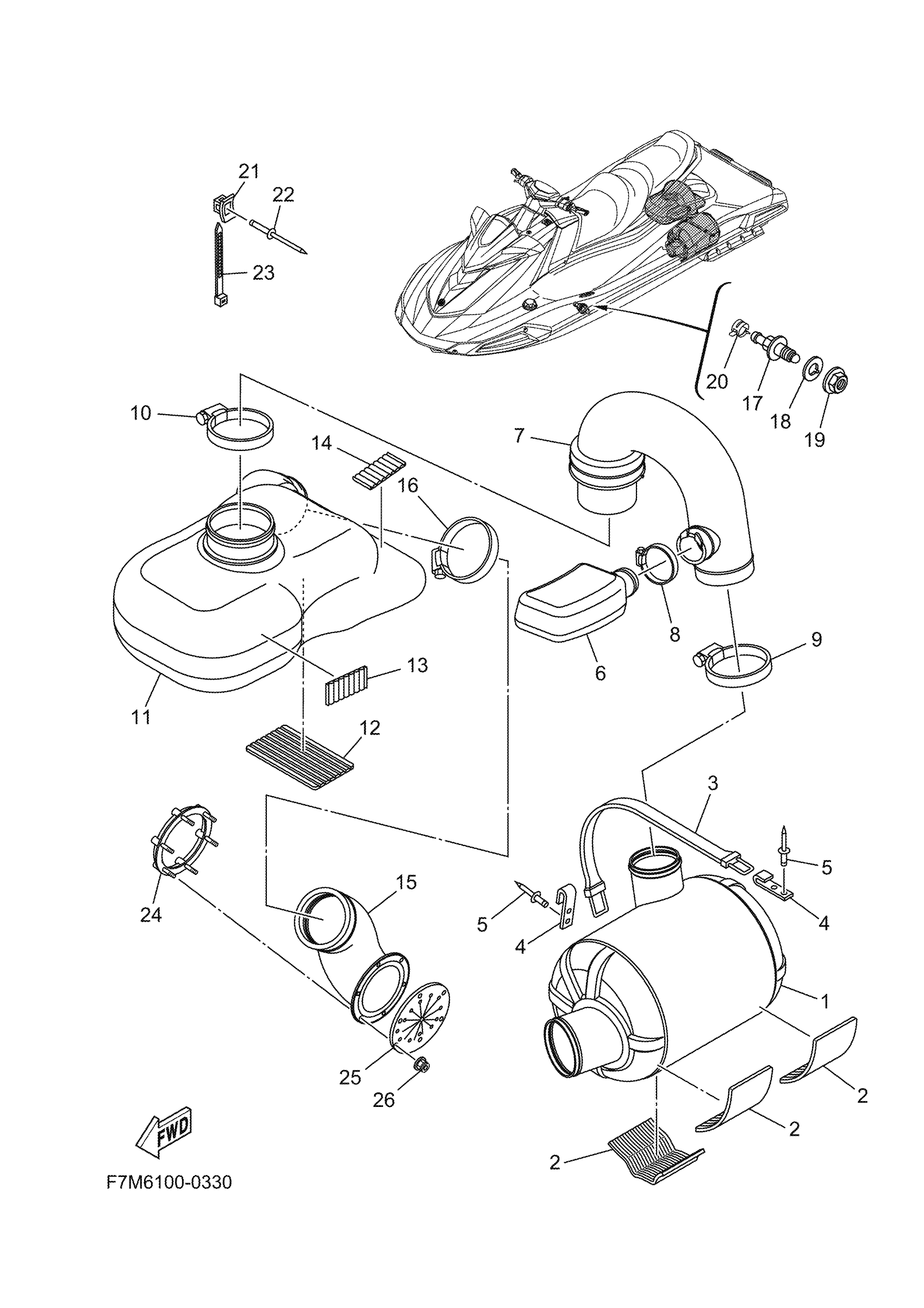

Yamaha VX1900CB (VX CRUISER HO) F7M6 2025 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F4P-U7550-00-00

$313.22

2

PAD, BATTERY

F1S-U8221-00-00

$2.88

3

BAND, FUEL TANK

EW2-67821-00-00

Unavailable

4

HOOK A

GA7-65772-00-00

$8.81

5

RIVET (EU0)

90267-48938-00

$4.85

6

RESONATOR 1

F7K-U753C-01-00

$14.69

7

HOSE, EXHAUST

F7L-U7555-01-00

$64.69

8

BAND, HOSE 70

90601-170UG-00

$5.96

9

HOSE CLAMP ASSY

90450-99801-00

$4.01

10

HOSE CLAMP ASSY

90450-99804-00

$4.51

11

TANK, WATER

F7L-U4261-00-00

$94.10

12

PAD, BATTERY

F1S-U8221-00-00

$2.88

13

MAT 2

F1K-U759C-00-00

$1.80

14

MAT 2

F1K-U759C-00-00

$1.80

15

HOSE,EXHAUST 3

F7K-U758D-00-00

$24.25

16

HOSE CLAMP ASSY

90450-99801-00

$4.01

17

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

18

PLATE

F1S-U757B-01-00

Unavailable

19

NUT, LOCK

F2N-U142L-00-00

$1.43

20

PILOT, WATER

F2C-U753B-01-00

$2.58

21

GASKET

F2C-U7564-02-00

$4.63

22

NUT

F2C-U2733-00-00

$2.00

23

CLIP

90467-150A5-00

$2.56

24

BASE, CLAMP

F1W-U828M-00-00

$1.29

25

RIVET, BLIND

90267-48806-00

$2.16

26

CLAMP

90464-32801-00

$1.29
