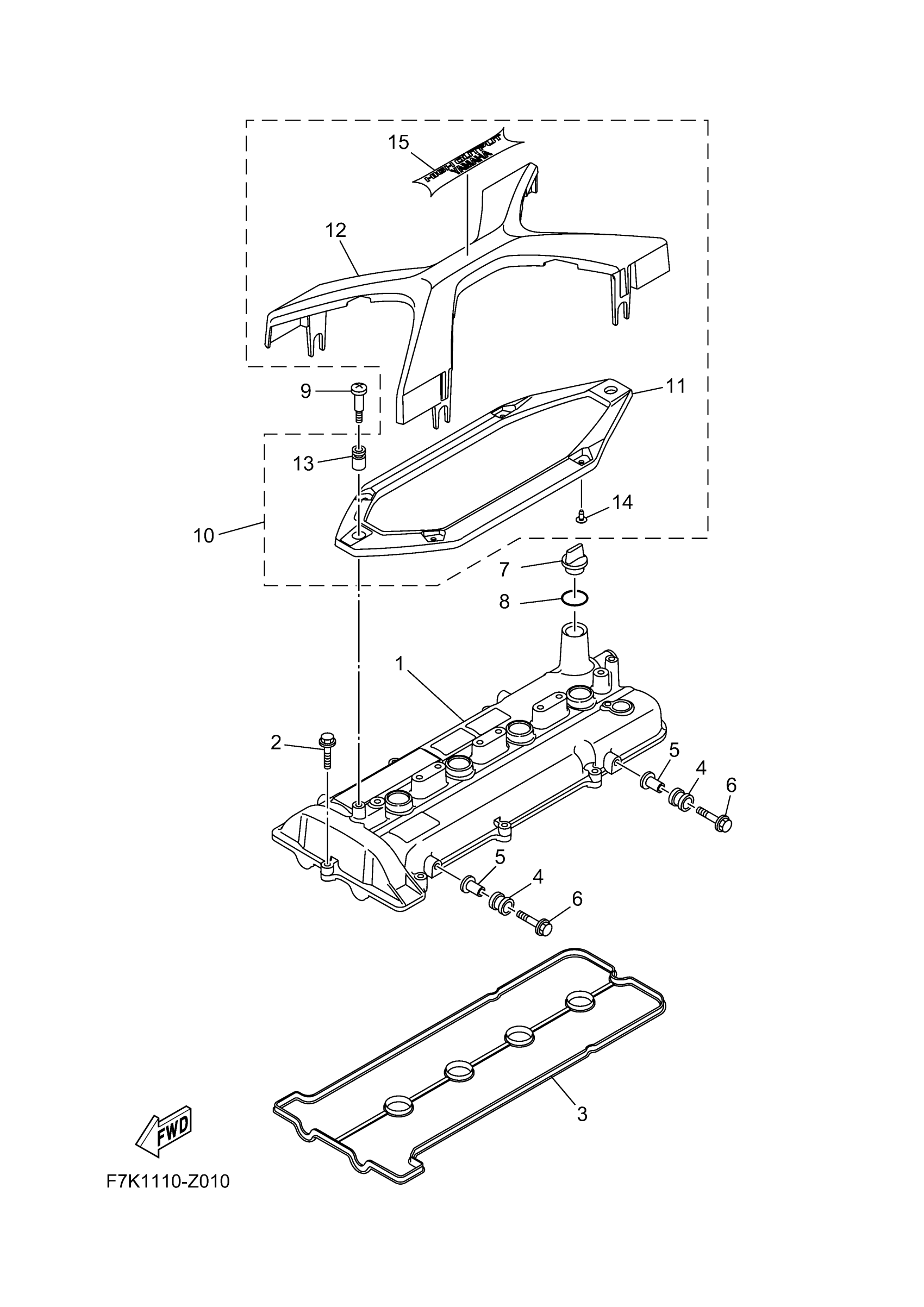

Yamaha VX1900CB (VX CRUISER HO) F7M6 2025 CYLINDER 1 Diagram

#

Description
Price

1

COVER, CYLINDER HE

6LE-11191-00-00

$407.56

2

BOLT, FLANGE

90105-06028-00

$2.80

3

GASKET, HEAD COVER

6LE-11193-00-00

$89.38

4

DAMPER, IGNITION COIL

68V-82317-01-00

$5.57

5

. COLLAR

90387-06119-00

$4.37

6

BOLT, FLANGE

95814-06025-00

Unavailable

7

PLUG, OIL

3Y1-15363-10-00

$15.94

8

O-RING (646)

93210-19123-00

Unavailable

9

BOLT, COVER MOUNTING

6S5-E118E-02-00

$1.37

10

COVER ASSY 1

6LE-1110M-00-00

$165.14

11

. COVER 1

6LE-1111M-00-00

Unavailable

12

COVER 2

6LE-1111N-00-00

$57.56

13

. GROMMET, ANODE

6LE-11328-00-00

$2.71

14

. SCREW

90149-05050-00

Unavailable

15

EMBLEM

6LE-1111K-00-00

Unavailable
