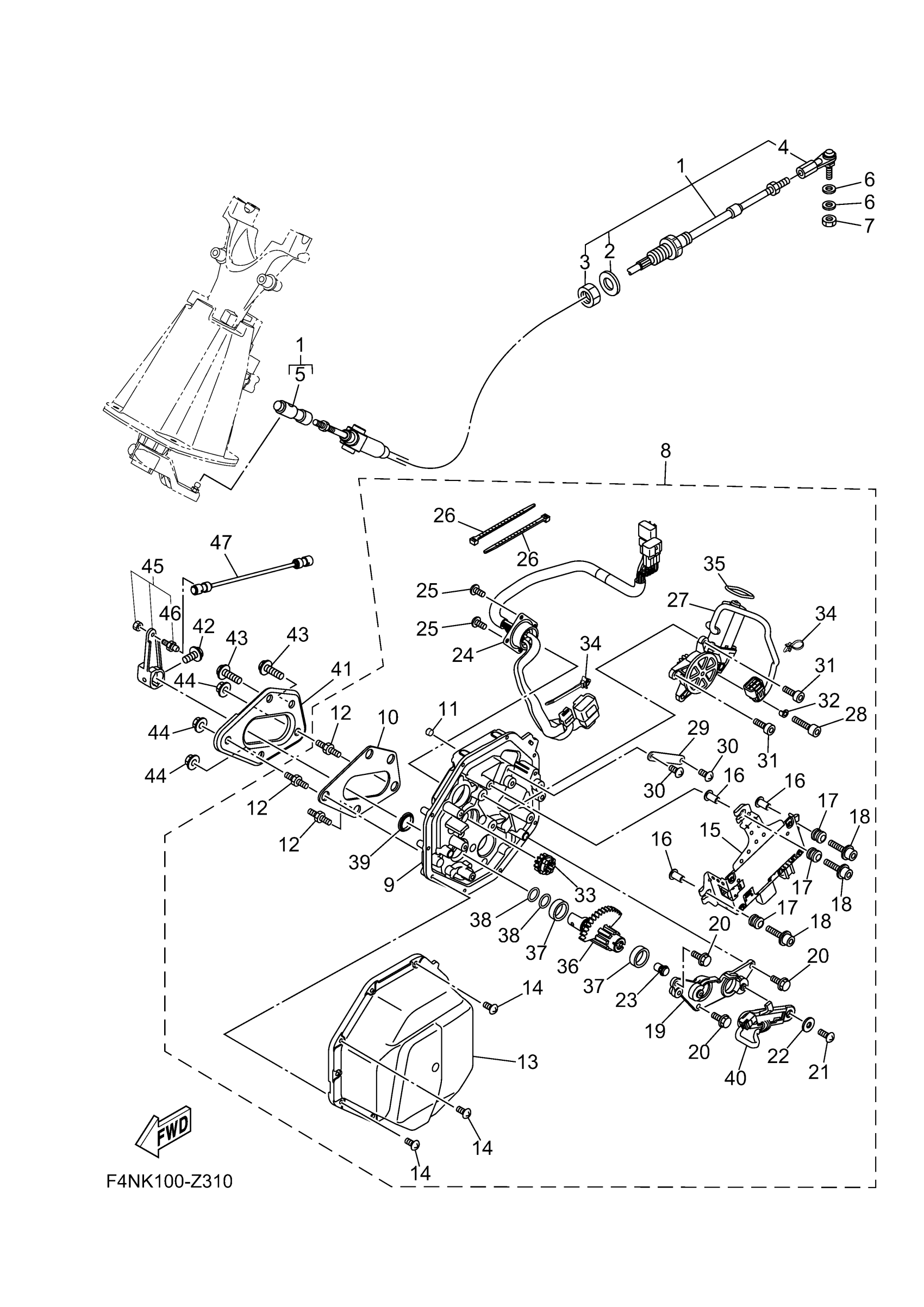

Yamaha VX1900CB (VX CRUISER HO) F7M6 2025 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F4N-61481-01-00

$478.77

2

. PACKING C

F1B-61438-00-00

$2.72

3

NUT

F1B-6151S-01-00

$14.31

4

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

5

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.01

8

MOTOR ASSY

F4S-6140B-03-00

$507.50

9

. HOUSING

F4S-6152K-00-00

$295.44

10

. SEAL

F4P-63262-00-00

$27.13

11

. PLUG

F3J-613D0-00-00

$11.99

12

. BOLT, STUD

F3J-67369-00-00

$6.36

13

. COVER

F3Y-6143J-00-00

$52.99

14

. SCREW

F3Y-68198-00-00

$3.64

15

CONTROL UNIT

F4S-68197-01-00

$860.59

16

. COLLAR

90387-06119-00

$4.37

17

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

18

. BOLT

F3J-613B4-20-00

$4.55

19

. PLATE

F4P-61256-00-00

$62.11

20

. BOLT, HEXAGON

F3Y-613B3-00-00

$4.55

21

. SCREW

F3J-68198-20-00

$3.64

22

. WASHER, PLAIN

F3J-613C3-10-00

$3.70

23

. MAGNET, SENSOR

F3J-60428-00-00

$25.49

24

. WIRE HARNESS ASSY

F4P-68270-00-00

$233.32

25

. SCREW

F3J-68198-00-00

$2.95

26

. CLAMP, WIRE

F3J-68273-00-00

$3.18

27

. MOTOR

F4S-68352-00-00

$175.74

28

. BOLT

F3J-613B4-00-00

$4.55

29

. PLATE

F3Y-61348-00-00

$4.55

30

. SCREW

F3J-68198-20-00

$3.64

31

. BOLT

F3J-613B4-10-00

$2.19

32

. SPACER

F3J-61492-00-00

$7.27

33

. GEAR 1

F4P-60211-00-00

$116.65

34

. CLAMP

F4P-68273-00-00

$4.09

35

. O-RING

F4P-613A5-10-00

$4.55

36

SHAFT, 1

F3Y-60221-10-00

$23.67

37

. BUSH

F3Y-61344-00-00

$3.70

38

O-RING

F4P-613A5-00-00

$3.64

39

. BUSH

F4P-61344-00-00

$5.45

40

. SENSOR ANGLE

F4S-85887-00-00

Unavailable

41

PLATE

F4P-U8285-00-00

$14.38

42

BOLT, WITH WASHER

90119-06894-00

$1.37

43

BOLT, WITH WASHER

90119-08852-00

$3.79

44

NUT, LOCK

F3Y-U142L-00-00

$2.52

45

SHIFT ARM ASSY

F3Y-6150F-00-00

$49.42

46

. BOLT, JOINT

6R7-42316-00-00

$34.49

47

ROD ASSY 2

F3J-6150D-00-00

$38.52
