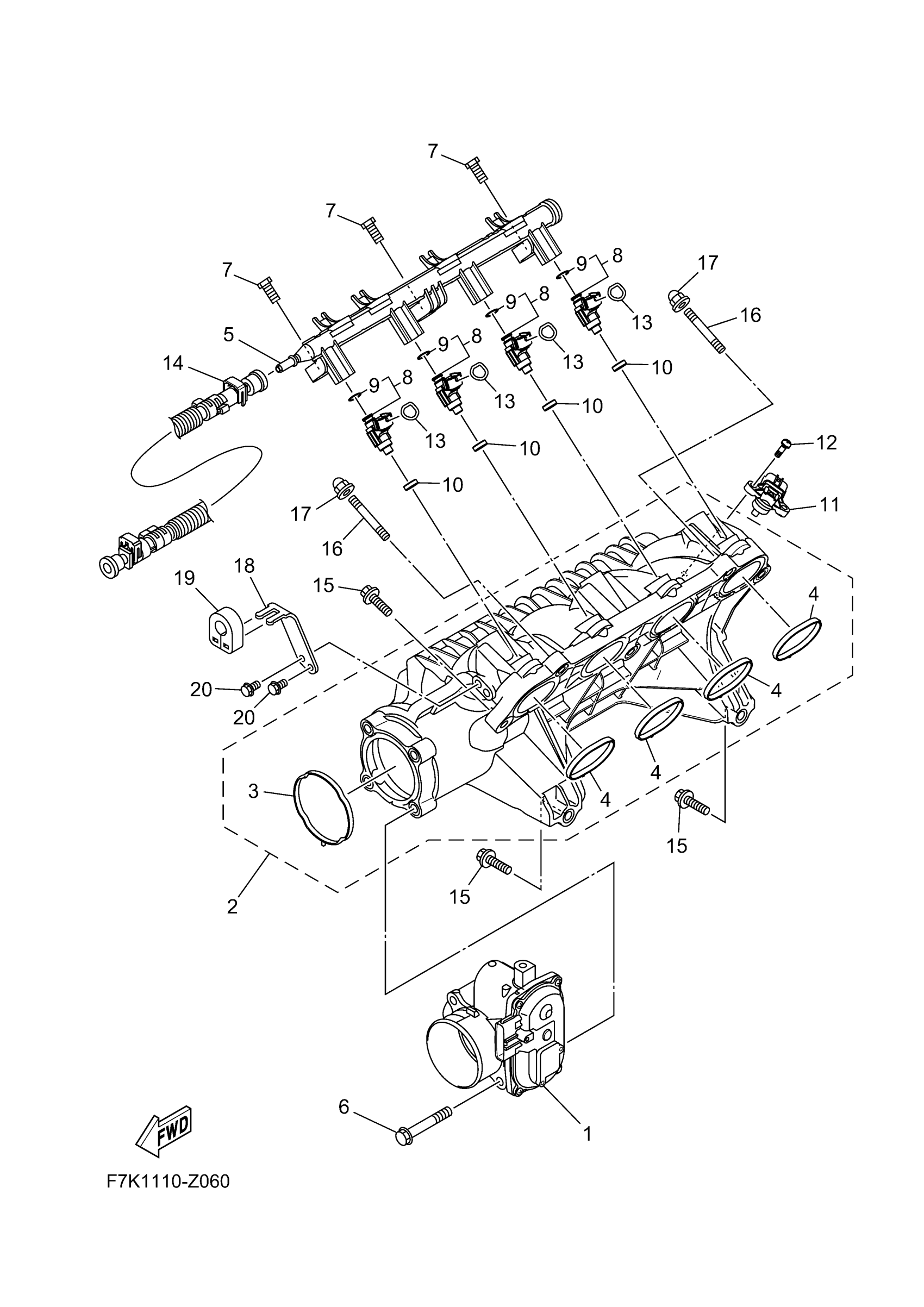

Yamaha VX1900CA (VX CRUISER HO WAUD_VX CRUISER HO) F7M3 2024 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6LE-13750-01-00

Unavailable

2

MANIFOLD, INTAKE 1

6LE-13641-00-00

Unavailable

3

GASKET, INSULATING

6LE-14156-00-00

$97.99

4

GASKET

6LE-14126-00-00

$41.99

5

DELIVERY PIPE

6LE-12880-00-00

$329.99

6

BOLT, FLANGE

90105-08243-00

Unavailable

7

BOLT

6CS-14446-00-00

Unavailable

8

INJECTOR

6S5-13761-10-00

Unavailable

9

. O-RING

68V-1416A-00-00

Unavailable

10

. GASKET, MANIFOLD

8FP-13556-10-00

Unavailable

11

SENSOR ASSY

6LE-83688-00-00

$6.99

12

SCREW 3

6D3-81147-00-00

Unavailable

13

O-RING

93210-13003-00

$1.70

14

FUEL HOSE ASSY

6AN-2450B-10-00

Unavailable

15

BOLT, WITH WASHER

97513-08535-00

Unavailable

16

BOLT, STUD

90116-08032-00

Unavailable

17

NUT, CROWN(4BR)

90176-08080-00

Unavailable

18

PLATE, STAY

6LE-14572-00-00

Unavailable

19

GROMMET

6CS-14445-01-00

Unavailable

20

BOLT, FLANGE D/R (

95E33-06012-00

Unavailable
