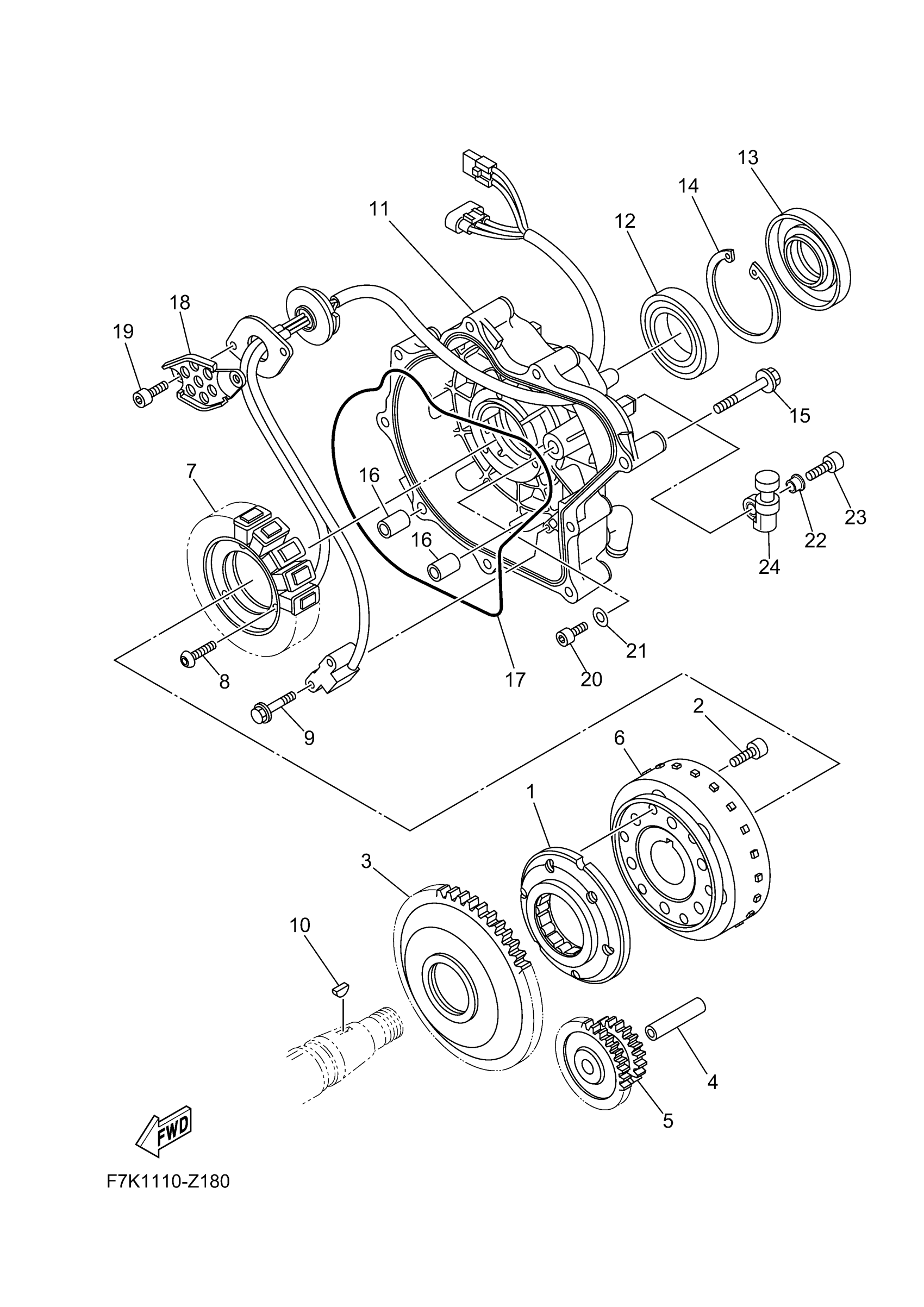

Yamaha VX1900CA (VX CRUISER HO WAUD_VX CRUISER HO) F7M3 2024 GENERATOR Diagram

#

Description
Price

1

STARTER ONE-WAY ASSY

6S5-15590-00-00

$224.14

2

BOLT, SOCKET

91317-08020-00

$2.19

3

GEAR 3

6LE-15515-00-00

$259.34

4

SHAFT 1

6S5-15521-00-00

$10.49

5

GEAR, IDLER 2

6S5-15517-00-00

$153.02

6

ROTOR ASSY

6LE-81450-00-00

$589.38

7

STATOR ASSY

6ET-81410-00-00

$335.70

8

SCREW

90149-06182-00

$6.58

9

BOLT, WITH WASHER

97513-05514-00

$3.64

10

KEY, WOODRUFF(1WG)

90280-03047-00

$4.54

11

COVER, FLYWHEEL

6S5-81337-31-00

$263.62

12

BEARING

93306-00809-00

$56.30

13

OIL SEAL

6LE-81167-00-00

$54.57

14

CIRCLIP (70R)

93420-72065-00

$8.32

15

BOLT, FLANGE

90105-08249-00

$2.04

16

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

17

. O-RING

6S5-81168-00-00

$32.18

18

CLAMP

6S5-81328-00-00

$4.67

19

BOLT,SOCKET

91317-06014-00

Unavailable

20

BOLT, SOCKET

91317-05010-00

Unavailable

21

WASHER, PLATE (7N7)

90201-052E8-00

Unavailable

22

COLLAR

90387-06M05-00

$6.45

23

. BOLT

91380-06020-00

$1.86

24

. GROMMET

6S5-81364-11-00

$5.00
