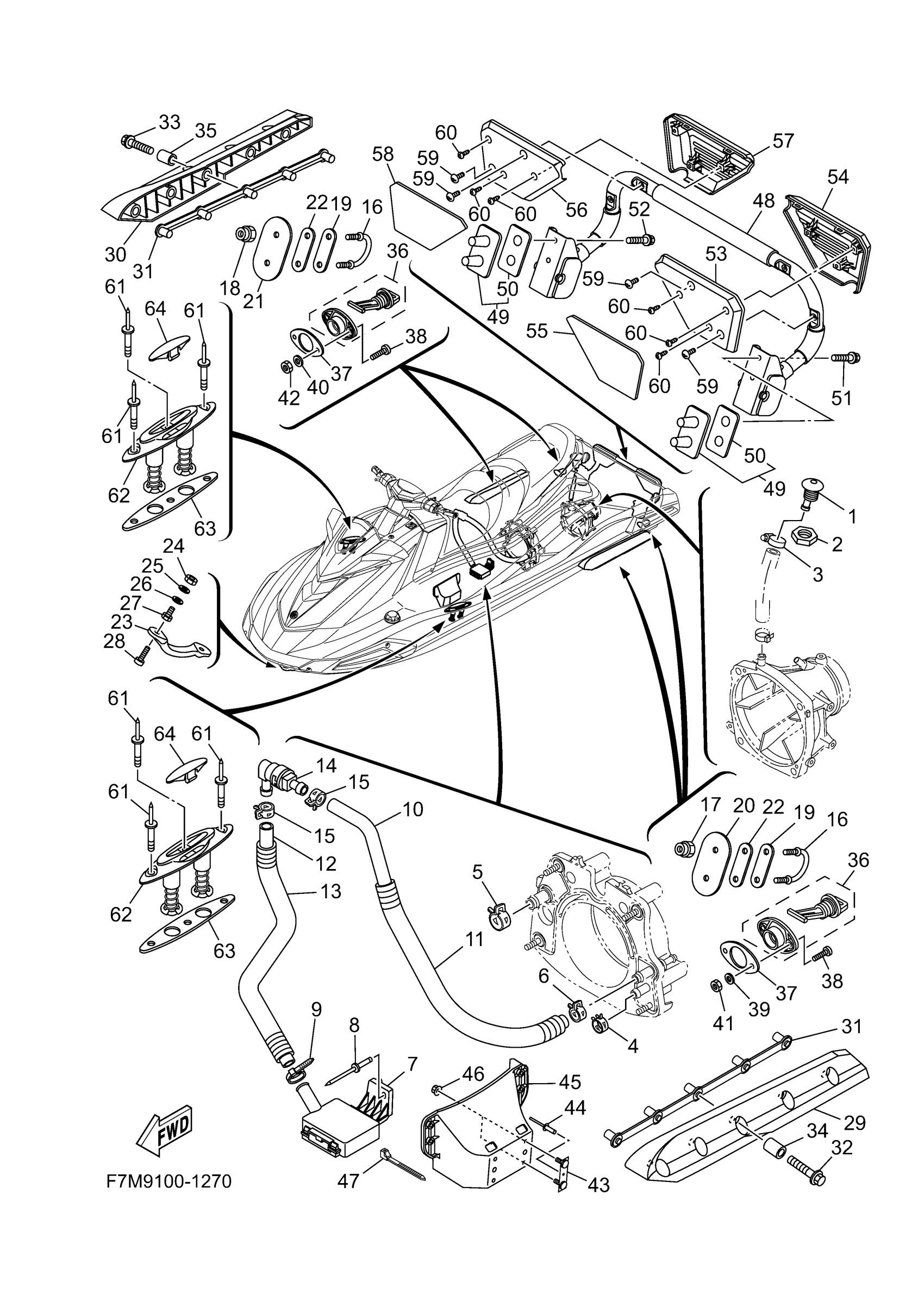

Yamaha VX1900C-C (VX CRUISER HO) F7M9 2026 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

$1.80

2

NUT

EU0-61652-00-00

$11.48

3

BAND, HOSE 18

90601-118UF-00

$2.07

4

CLIP

90467-200A3-00

$5.92

5

CLIP

90467-240A3-00

$2.69

6

CLIP

90467-190A2-00

$3.18

7

STRAINER, BILGE

F1B-U761D-02-00

$5.15

8

RIVET, BLIND

90267-489U8-00

$0.99

9

CLAMP

90465-10098-00

$1.68

10

HOSE (L860)

90445-20804-00

$12.86

11

TUBE,2

6EX-U773E-00-00

$6.06

12

HOSE (L500)

90445-20800-00

$12.86

13

TUBE

6EX-U773D-00-00

$3.73

14

JOINT, HOSE

68N-5112T-00-00

$48.96

15

CLIP

90467-190A2-00

$3.18

16

STERN EYE

F2N-U1628-10-00

Unavailable

17

NUT, NYLON (6J8)

95780-08300-00

$10.55

18

NUT, NYLON (6J8)

95780-08300-00

$10.55

19

PLATE A

GP7-U4953-10-00

$3.52

20

PLATE A

F7M-U4953-20-00

Unavailable

21

PLATE A

F7M-U4953-20-00

Unavailable

22

PACKING

F1B-U1653-03-00

Unavailable

23

BOW EYE 1

F1K-61624-00-00

$42.60

24

NUT.HEX.(COARS)

99780-12600-00

$2.80

25

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

26

WASHER

F0X-61637-00-00

$1.29

27

NUT

F0X-61652-01-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

29

STABILIZER LH

F1S-U883N-01-00

$33.32

30

STABILIZER RH

F1S-U883P-01-00

$33.32

31

BRACKET,STABILIZER

F1X-U883T-02-00

$43.92

32

BOLT,WASHER BASED

90105-088F9-00

$2.91

33

BOLT,WASHER BASED

90105-088F9-00

$2.91

34

SPACER

F2N-U8169-10-00

$1.15

35

SPACER

F2N-U8169-10-00

$1.15

36

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

37

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

38

SCREW, PAN HEAD

9788R-05025-00

$2.52

39

WASHER

9299R-05200-00

$3.16

40

WASHER

9299R-05200-00

$3.16

41

NUT, FLANGE

9572R-05300-00

$1.43

42

NUT, FLANGE

9572R-05300-00

$1.43

43

BRACKET

F1K-U826C-03-00

$12.86

44

RIVET (EU0)

90267-48938-00

$5.00

45

BRACKET 2

F4P-U8572-00-00

$46.95

46

NUT, LOCK

F3Y-U142L-00-00

$2.52

47

CLAMP

90464-32801-00

$1.23

48

LADDER, STEP ASSY

F4N-U278A-00-00

$234.83

49

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

50

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

51

BOLT, WITH WASHER

90119-08844-00

$1.29

52

BOLT, WITH WASHER

90119-08844-00

$1.29

53

STEP

F4N-U882F-00-00

Unavailable

54

PLATE, STEP 1

F4N-U884R-00-00

$6.36

55

MAT, STEP 7

F4N-U351R-00-00

$3.79

56

STEP

F4N-U882F-10-00

Unavailable

57

PLATE, STEP 1

F4N-U884R-10-00

Unavailable

58

MAT, STEP 8

F4N-U351S-00-00

$3.79

59

BOLT, WITH WASHER

90119-06830-00

Unavailable

60

BOLT

90109-06832-00

$2.44

61

RIVET, BLIND

90267-489U2-00

$1.43

62

CLEAT ASSY.

F4G-U163A-02-00

Unavailable

63

PACKING

F4G-U2284-10-00

$2.87

64

COVER

F1X-U826D-01-00

$1.87
