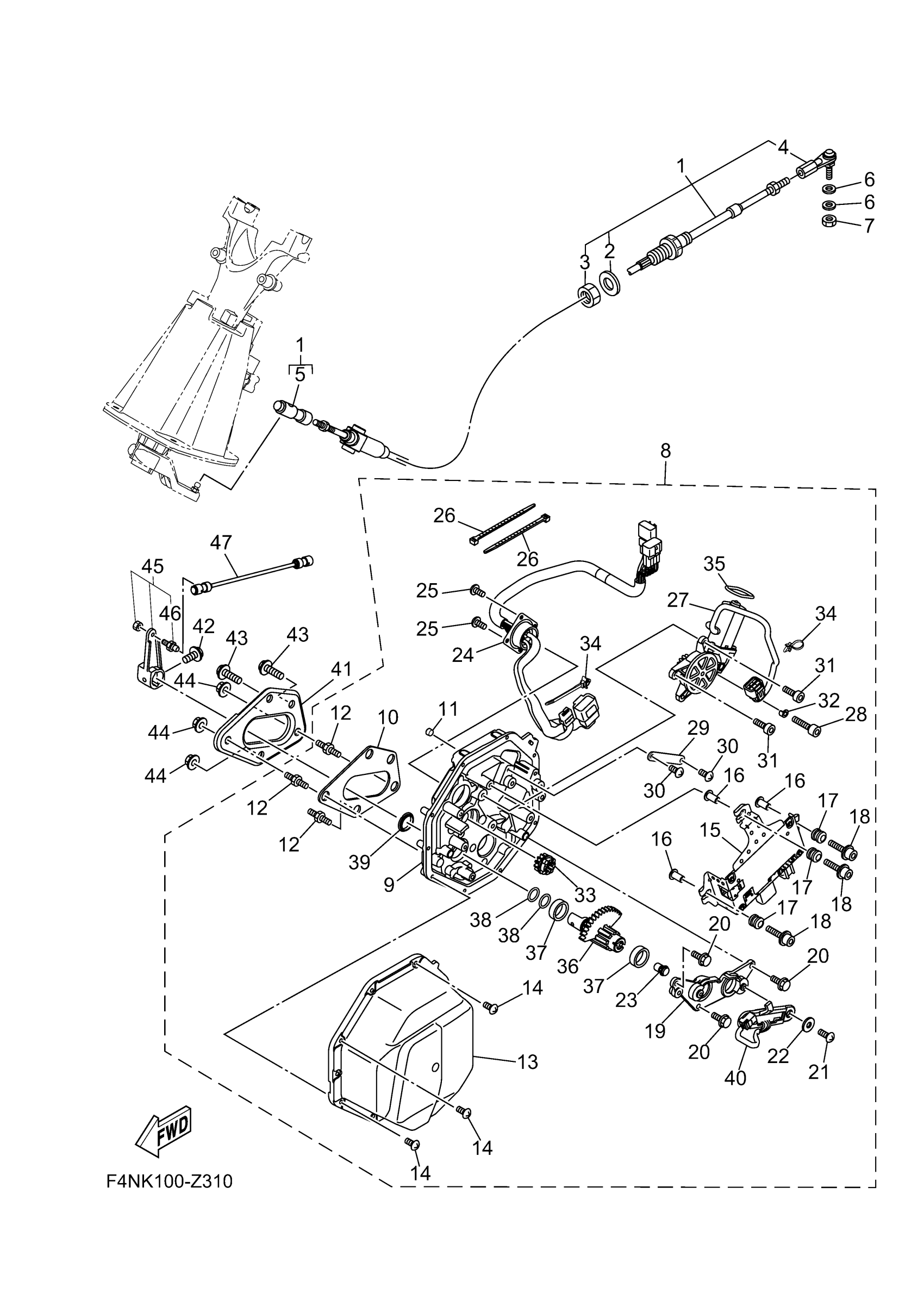

Yamaha VX1900BC (VX CRUISER HO WAUDIO) F7M8 2026 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F4N-61481-01-00

$471.63

2

. PACKING C

F1B-61438-00-00

$2.47

3

NUT

F1B-6151S-01-00

$13.63

4

. STUD, JOINT BALL

F1B-61461-02-00

$90.48

5

. BALL JOINT ASSY

F2N-61460-00-00

$47.75

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.07

8

MOTOR ASSY

F4S-6140B-03-00

$499.93

9

. HOUSING

F4S-6152K-00-00

$291.03

10

. SEAL

F4P-63262-00-00

$25.83

11

. PLUG

F3J-613D0-00-00

$11.93

12

. BOLT, STUD

F3J-67369-00-00

$6.27

13

. COVER

F3Y-6143J-00-00

$52.22

14

. SCREW

F3Y-68198-00-00

$3.58

15

CONTROL UNIT

F4S-68197-01-00

$847.75

16

. COLLAR

90387-06119-00

$4.60

17

DAMPER, IGNITION C

6A0-82317-01-00

$6.68

18

. BOLT

F3J-613B4-20-00

$4.48

19

. PLATE

F4P-61256-00-00

$61.18

20

. BOLT, HEXAGON

F3Y-613B3-00-00

$4.48

21

. SCREW

F3J-68198-20-00

$3.58

22

. WASHER, PLAIN

F3J-613C3-10-00

$3.79

23

. MAGNET, SENSOR

F3J-60428-00-00

$19.37

24

. WIRE HARNESS ASSY

F4P-68270-00-00

$229.84

25

. SCREW

F3J-68198-00-00

$3.03

26

. CLAMP, WIRE

F3J-68273-00-00

$3.13

27

. MOTOR

F4S-68352-00-00

$173.12

28

. BOLT

F3J-613B4-00-00

$4.48

29

. PLATE

F3Y-61348-00-00

$4.48

30

. SCREW

F3J-68198-20-00

$3.58

31

. BOLT

F3J-613B4-10-00

$2.19

32

. SPACER

F3J-61492-00-00

$7.16

33

. GEAR 1

F4P-60211-00-00

$114.91

34

. CLAMP

F4P-68273-00-00

$4.03

35

. O-RING

F4P-613A5-10-00

$4.48

36

SHAFT, 1

F3Y-60221-10-00

$22.97

37

. BUSH

F3Y-61344-00-00

$3.79

38

O-RING

F4P-613A5-00-00

$3.43

39

. BUSH

F4P-61344-00-00

$4.55

40

. SENSOR ANGLE

F4S-85887-00-00

Unavailable

41

PLATE

F4P-U8285-00-00

$14.16

42

BOLT, WITH WASHER

90119-06894-00

$1.43

43

BOLT, WITH WASHER

90119-08852-00

$4.01

44

NUT, LOCK

F3Y-U142L-00-00

$2.66

45

SHIFT ARM ASSY

F3Y-6150F-00-00

$64.16

46

. BOLT, JOINT

6R7-42316-00-00

$34.31

47

ROD ASSY 2

F3J-6150D-00-00

$39.51
