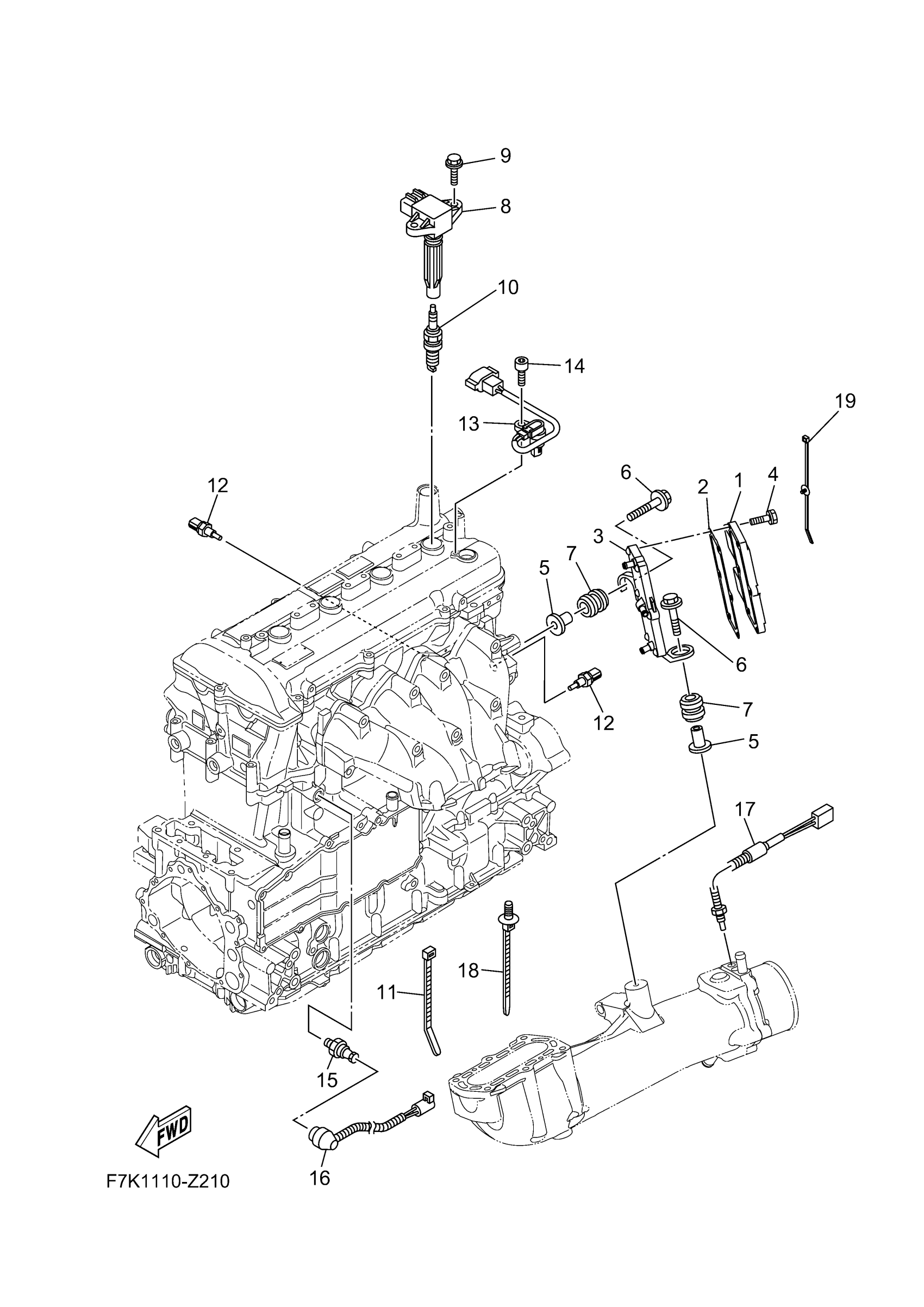

Yamaha VX1900BB (VX CRUISER HO WAUD) F7M5 2025 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

6EK-81960-10-00

$197.13

2

PLATE, RECTIFIER FITTING

6ET-81975-01-00

$6.36

3

COVER, RECTIFIER

6LE-81972-00-00

$203.02

4

BOLT, WITH WASHER

90119-06MA4-00

$3.26

5

COLLAR

90387-08M37-00

$9.81

6

BOLT, WITH WASHER

90119-08187-00

$3.17

7

GROMMET

90480-22M15-00

$10.18

8

IGNITION COIL ASSY

6S5-82310-10-00

$263.06

9

BOLT,FLANGE (EW2)

90105-06903-00

$5.00

10

PLUG, SPARK (NGK LFR6A-00)

LFR-6A000-00-00

$7.43

11

BAND

1UA-82591-00-00

$3.85

12

THERMO UNIT

52B-H3591-00-00

Unavailable

13

SENSOR, CAM POSITION

60E-85896-02-00

$159.08

14

BOLT,SOCKET

91380-06016-00

$4.85

15

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

16

LEAD WIRE ASSY

6S5-81315-01-00

$51.50

17

THERMOSENSOR ASSY

6AA-85790-00-00

$104.60

18

CLAMP

90464-20005-00

$2.11

19

CLAMP

90464-31002-00

Unavailable
