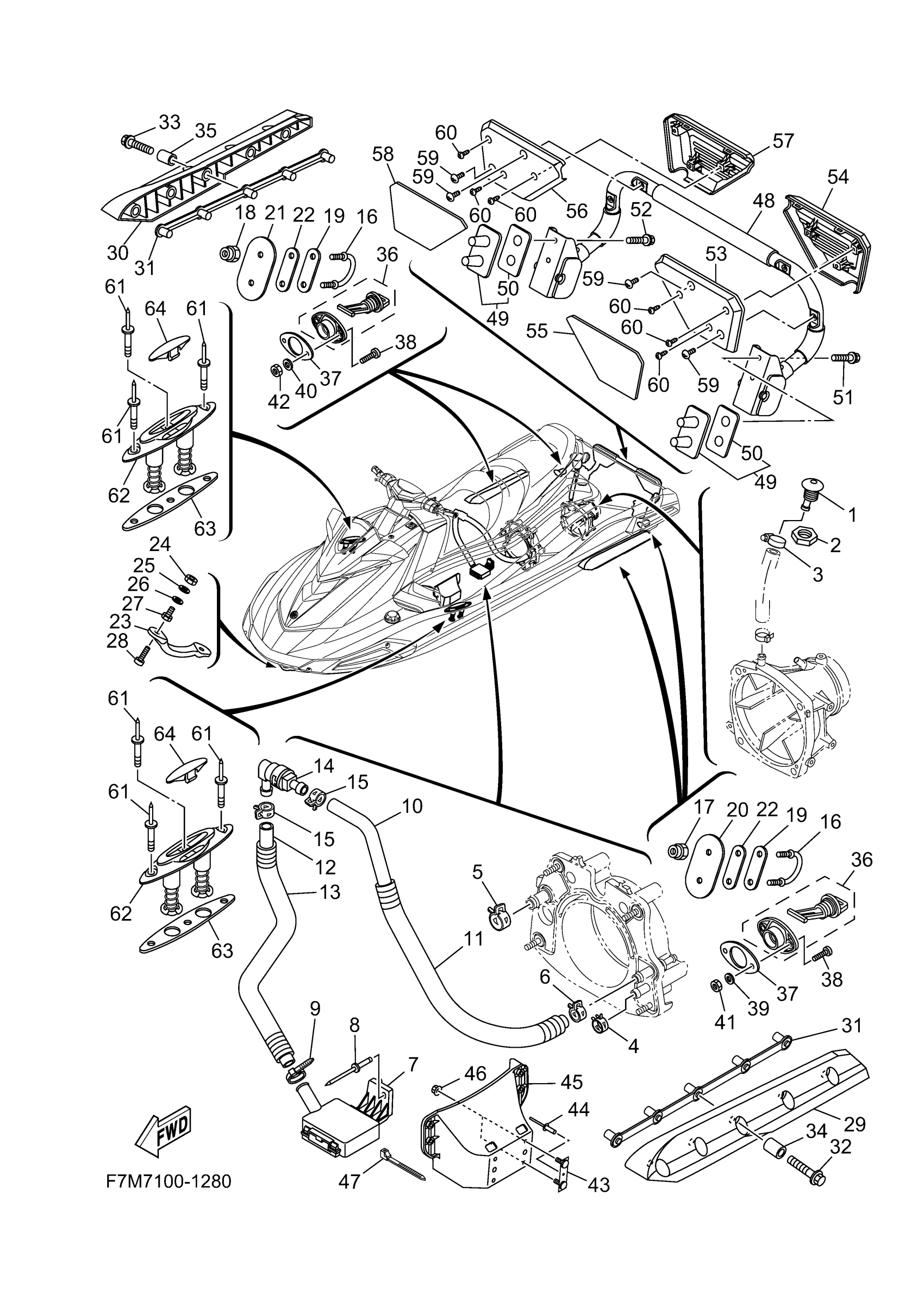

Yamaha VX1900AC (VX LIMITED HO WAUDIO) F7M7 2026 HULL & DECK Diagram
#
1
SPOUT
F1W-U269B-00-00
Unavailable
2
NUT
EU0-61652-00-00
Unavailable
3
BAND, HOSE 18
90601-118UF-00
Unavailable
4
CLIP
90467-200A3-00
Unavailable
5
CLIP
90467-240A3-00
Unavailable
6
CLIP
90467-190A2-00
Unavailable
7
STRAINER, BILGE
F1B-U761D-02-00
Unavailable
8
RIVET, BLIND
90267-489U8-00
Unavailable
9
CLAMP
90465-10098-00
Unavailable
10
HOSE (L860)
90445-20804-00
Unavailable
11
TUBE,2
6EX-U773E-00-00
Unavailable
12
HOSE (L500)
90445-20800-00
Unavailable
13
TUBE
6EX-U773D-00-00
Unavailable
14
JOINT, HOSE
68N-5112T-00-00
Unavailable
15
CLIP
90467-190A2-00
Unavailable
16
STERN EYE
F2N-U1628-10-00
Unavailable
17
NUT, NYLON (6J8)
95780-08300-00
Unavailable
18
NUT, NYLON (6J8)
95780-08300-00
Unavailable
19
PLATE A
GP7-U4953-10-00
Unavailable
20
PLATE A
F7M-U4953-20-00
Unavailable
21
PLATE A
F7M-U4953-20-00
Unavailable
22
PACKING
F1B-U1653-03-00
Unavailable
23
BOW EYE 1
F1K-61624-00-00
Unavailable
24
NUT.HEX.(COARS)
99780-12600-00
Unavailable
25
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
26
WASHER
F0X-61637-00-00
Unavailable
27
NUT
F0X-61652-01-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD
90110-06280-00
Unavailable
29
STABILIZER LH
F1S-U883N-01-00
Unavailable
30
STABILIZER RH
F1S-U883P-01-00
Unavailable
31
BRACKET,STABILIZER
F1X-U883T-02-00
Unavailable
32
BOLT,WASHER BASED
90105-088F9-00
Unavailable
33
BOLT,WASHER BASED
90105-088F9-00
Unavailable
34
SPACER
F2N-U8169-10-00
Unavailable
35
SPACER
F2N-U8169-10-00
Unavailable
36
DRAIN PLUG ASSY
F1S-U2280-02-00
Unavailable
37
PACKING, DRAIN
F1S-U2285-01-00
Unavailable
38
SCREW, PAN HEAD
9788R-05025-00
Unavailable
39
WASHER
9299R-05200-00
Unavailable
40
WASHER
9299R-05200-00
Unavailable
41
NUT, FLANGE
9572R-05300-00
Unavailable
42
NUT, FLANGE
9572R-05300-00
Unavailable
43
BRACKET
F1K-U826C-03-00
Unavailable
44
RIVET (EU0)
90267-48938-00
Unavailable
45
BRACKET 2
F4P-U8572-00-00
Unavailable
46
NUT, LOCK
F3Y-U142L-00-00
Unavailable
47
CLAMP
90464-32801-00
Unavailable
48
LADDER, STEP ASSY
F4N-U278A-00-00
Unavailable
49
BRACKET, LADDER LH
F2S-U278F-01-00
Unavailable
50
PACKING, BRKT. 1
F2S-U278H-01-00
Unavailable
51
BOLT, WITH WASHER
90119-08844-00
Unavailable
52
BOLT, WITH WASHER
90119-08844-00
Unavailable
53
STEP
F4N-U882F-00-00
Unavailable
54
PLATE, STEP 1
F4N-U884R-00-00
Unavailable
55
MAT, STEP 7
F4N-U351R-10-00
Unavailable
56
STEP
F4N-U882F-10-00
Unavailable
57
PLATE, STEP 1
F4N-U884R-10-00
Unavailable
58
MAT, STEP 8
F4N-U351S-10-00
Unavailable
59
BOLT, WITH WASHER
90119-06830-00
Unavailable
60
BOLT
90109-06832-00
Unavailable
61
RIVET, BLIND
90267-489U2-00
Unavailable
62
CLEAT ASSY.
F4G-U163A-02-00
Unavailable
63
PACKING
F4G-U2284-10-00
Unavailable
64
COVER
F1X-U826D-01-00
Unavailable
