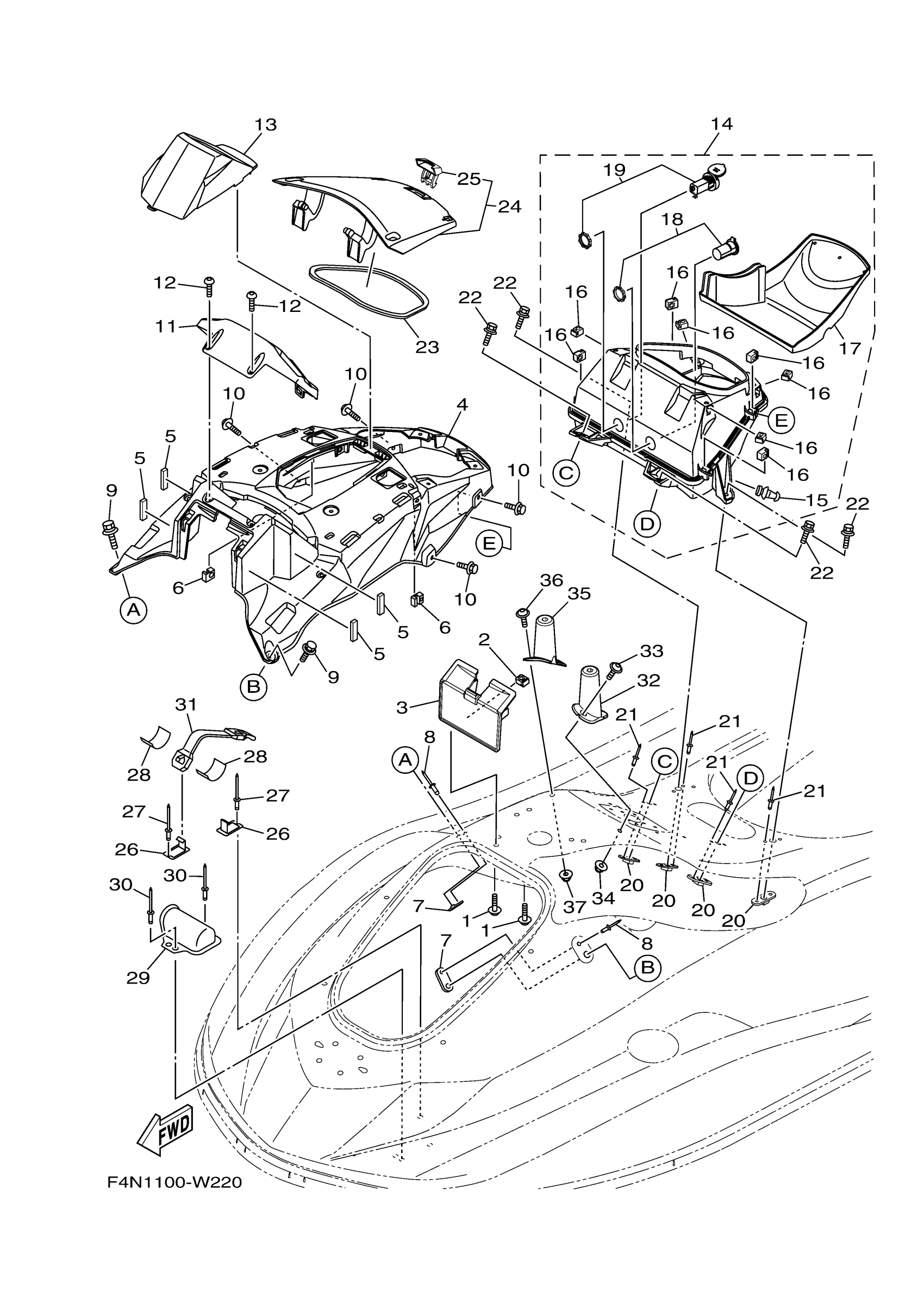

Yamaha VX1900AC (VX LIMITED HO WAUDIO) F7M7 2026 ENGINE HATCH 2 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06880-00

$3.52

2

NUT

F3X-U517E-00-00

$1.23

3

HOOK,LID LOCK

F4P-U517F-00-00

$21.20

4

COVER, CENTER

F4N-U5554-00-00

$111.88

5

. PACKING 3

F1K-U266B-00-00

$1.15

6

NUT

F3X-U517E-00-00

$1.23

7

PLATE, FIX

F2X-U5175-00-00

$1.80

8

RIVET (EU0)

90267-48938-00

$5.00

9

BOLT, WITH WASHER

90119-06878-00

$3.43

10

BOLT

F4P-U1355-00-00

$0.86

11

COVER METER

F4N-U8262-00-00

$18.17

12

SCREW

F2S-U13C1-00-00

$2.36

13

COVER, FRONT

F4N-U513M-00-00

$14.35

14

GLOVE BOX HATCH ASSY

F7M-U1708-10-00

Unavailable

15

. SEAL

F3X-U2723-00-00

$2.16

16

NUT

F3X-U517E-00-00

$1.23

17

INNER, CASE

F4N-U591L-00-00

Unavailable

18

. TERMINAL COMP

F7M-H254B-01-00

Unavailable

19

. PLUG, USB

F7M-H21E1-10-00

Unavailable

20

BRACKET

F2C-U826C-00-00

$3.79

21

RIVET 1

F4P-U516R-01-00

$4.87

22

BOLT, WITH WASHER

90119-08828-00

$2.30

23

PACKING CASE

F4N-U519D-02-00

$46.95

24

GLOVE BOX COVER ASSY

F4N-U4705-01-00

$41.63

25

. LOCK

F4N-U2875-00-00

$3.95

26

HOOK A

F1K-U5772-04-00

$6.29

27

RIVET (EU0)

90267-48938-00

$5.00

28

MAT 2

F1K-U759C-00-00

$1.72

29

BOX, FIRE EXTINGUISHER

F2X-U5983-00-00

$4.39

30

RIVET, BLIND

90267-48802-00

$1.98

31

BAND 1

F2P-U828K-00-00

$5.87

32

RFM.,DASH BOARD 1

F4N-U974A-00-00

$12.86

33

SCREW

F3X-U7823-12-00

$1.25

34

NUT, LOCK

F2N-U142L-00-00

$1.00

35

RFM.,DASH BOARD 2

F4N-U974B-00-00

$12.86

36

SCREW

F3X-U7823-12-00

$1.25

37

NUT, LOCK

F2N-U142L-00-00

$1.00
