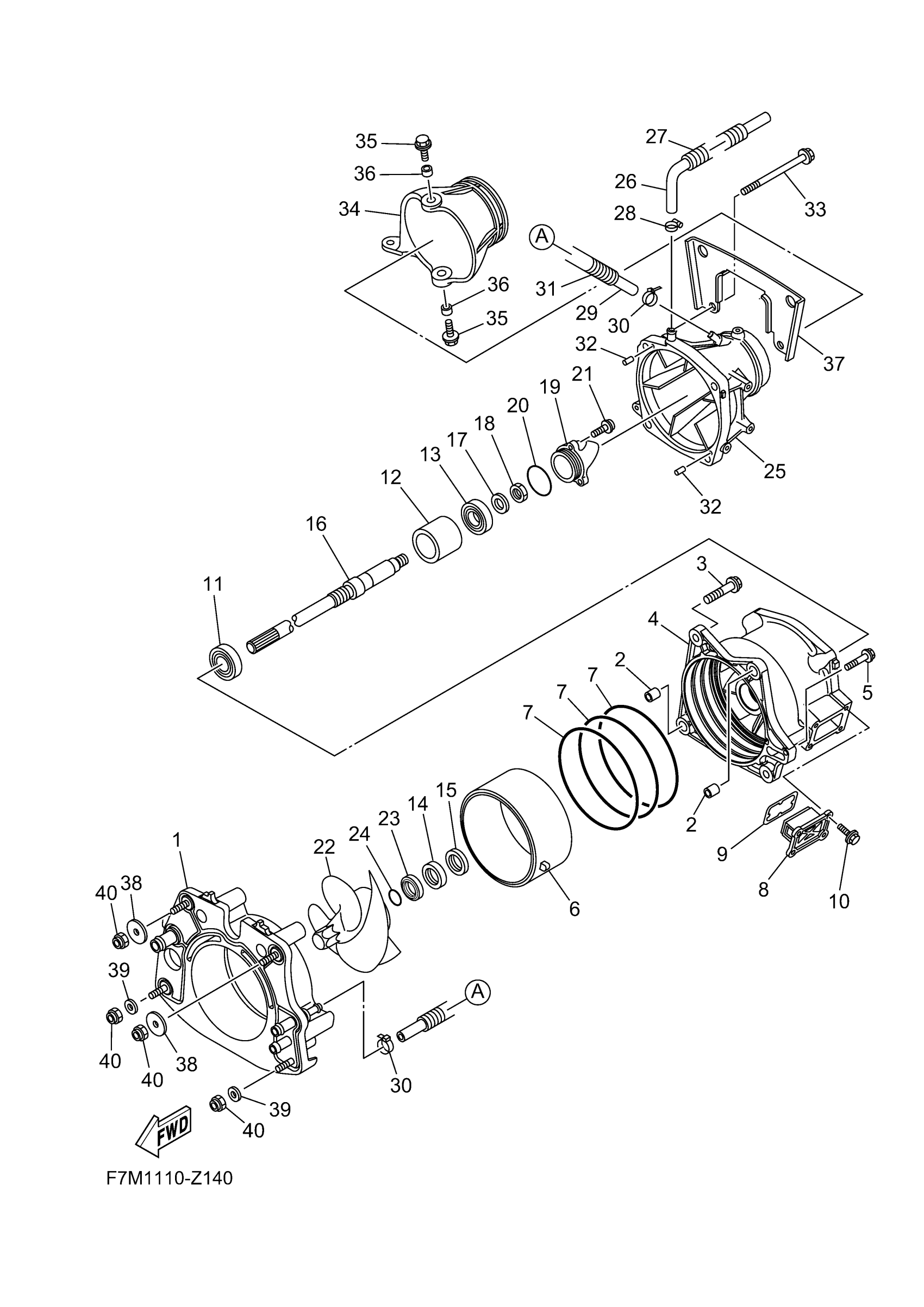

Yamaha VX1900AB (VX LIMITED HO) F7M4 2025 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6CS-G5831-20-00

$120.57

2

PIN, DOWEL(4JT)

99590-14016-00

$3.69

3

BOLT, WITH WASHER

90119-10811-00

$1.43

4

HOUSING, IMPELLER

6HM-R1312-10-00

Unavailable

5

BOLT, WITH WASHER

90119-06894-00

$1.43

6

SLEEVE, IMPELLER

6HH-R1337-00-00

$101.95

7

O-RING

93211-65801-00

$3.59

8

FILTER

6GN-G6882-00-00

$12.20

9

. O-RING

66V-42414-00-00

$5.31

10

BOLT,WITH WASHER

90119-06890-00

$1.15

11

BEARING

93306-206Y7-00

$15.95

12

SPACER 1

6CS-G5538-00-00

$34.45

13

BEARING

93306-355Y0-00

Unavailable

14

. OIL SEAL

93102-31009-00

$68.82

15

. OIL SEAL

93101-31001-00

$28.21

16

SHAFT, DRIVE

6S5-G5511-00-00

Unavailable

17

WASHER

92990-20600-00

$4.17

18

NUT

95312-20700-00

Unavailable

19

CAP

6AN-R1326-00-00

$18.66

20

O-RING

93210-54010-00

$2.41

21

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.30

22

IMPELLER

6LE-R1321-00-00

Unavailable

23

SPACER

6BH-R1348-00-00

$22.63

24

O-RING (30X)

93210-30611-00

Unavailable

25

NOZZLE

6EX-R1318-01-00

$76.46

26

HOSE 1

6CN-U72M2-00-00

$5.75

27

HOSE (L175)

90446-24M46-00

$1.32

28

BAND, HOSE 18

90601-118UF-00

$2.22

29

HOSE (L355)

90445-14807-00

$1.69

30

CLAMP

90465-10098-00

$2.24

31

HOSE (L320)

90446-20MF5-00

$4.19

32

PIN, DOWEL (614)

93606-12019-00

Unavailable

33

BOLT, WITH WASHER

90119-10811-00

$1.43

34

NOZZLE, DEFLECTOR

6EX-R1313-00-00

$22.25

35

BOLT, WITH WASHER

90119-08841-00

$1.07

36

COLLAR(6R7)

90387-08M06-00

Unavailable

37

BRACKET

6EY-R1959-00-00

$15.07

38

WASHER

F1S-U725E-01-00

$8.61

39

WASHER, PLATE

90201-10801-00

$3.65

40

NUT, NYLON

9572R-10300-00

$3.52
