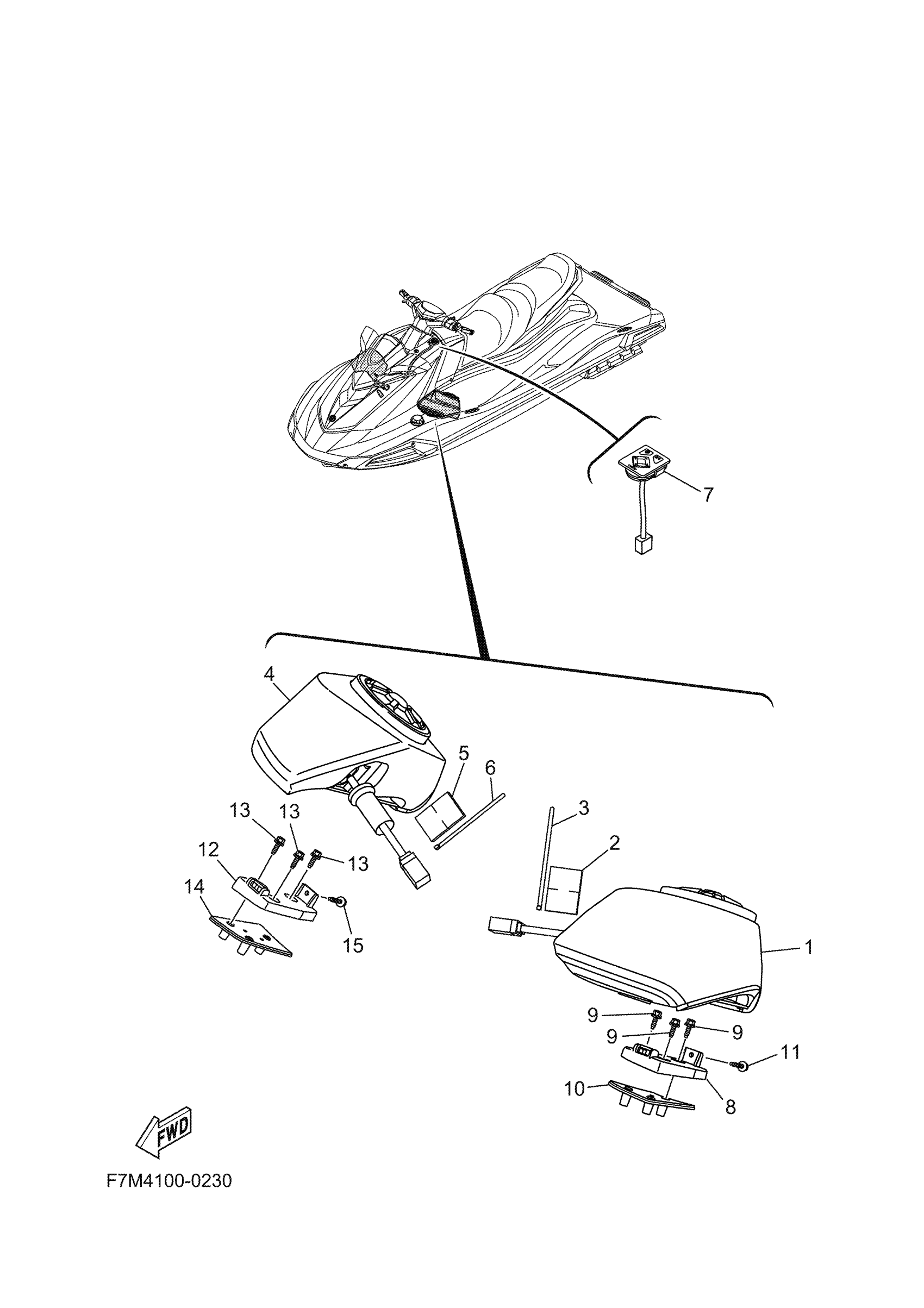

Yamaha VX1900AB (VX LIMITED HO) F7M4 2025 ELECTRICAL 4 Diagram

#

Description

Price

1

SPEAKER ASSY 1

F7M-U8102-00-00

$587.51

2

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

3

CLAMP

90464-32801-00

$1.23

4

SPEAKER ASSY 2

F7M-U8103-00-00

$819.05

5

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

6

CLAMP

90464-32801-00

$1.23

7

CONTROLLER, AUDIO

F7M-U81AJ-00-00

$69.68

8

BRACKET, SPEAKER 1

F7M-UE6GA-00-00

$24.98

9

BOLT, WITH WASHER

90119-06878-00

$3.43

10

BRACKET

F7M-U0392-00-00

$24.98

11

BOLT, WITH WASHER

90119-06880-00

$3.52

12

BRACKET, SPEAKER 1

F7M-UE6GA-10-00

$24.98

13

BOLT, WITH WASHER

90119-06878-00

$3.43

14

BRACKET

F7M-U0392-10-00

$21.95

15

BOLT, WITH WASHER

90119-06880-00

$3.52
