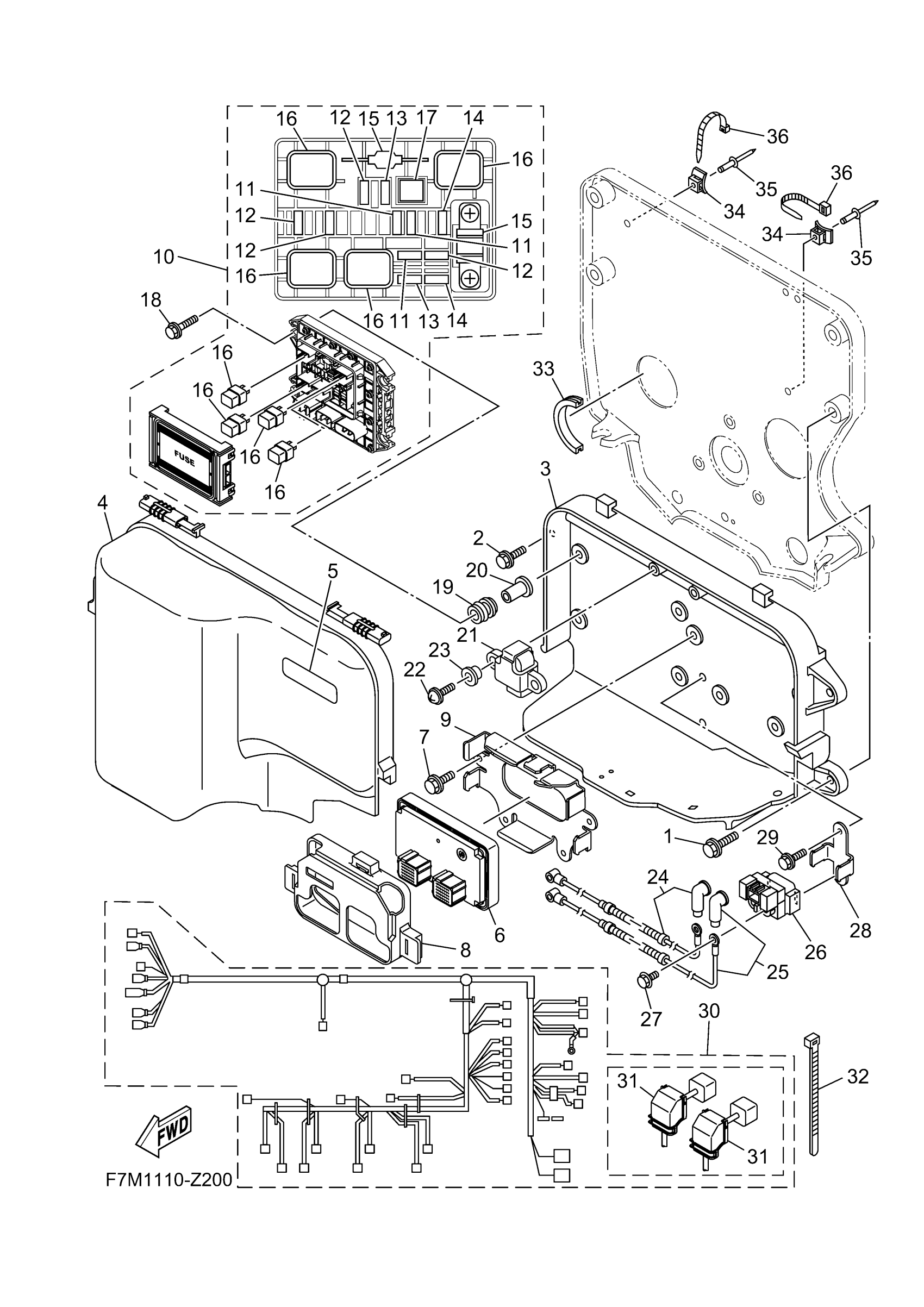

Yamaha VX1900AB (VX LIMITED HO) F7M4 2025 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

Unavailable

2

BOLT, WITH WASHER

90119-089UT-00

Unavailable

3

PLATE

6CS-81845-11-00

Unavailable

4

COVER

6S5-81942-21-00

Unavailable

5

LABEL, CAUTION 7

60E-83627-00-00

Unavailable

6

ENGINE CONTROL UNI

6ME-8591A-00-00

$2,571.99

7

BOLT, FLANGE

95814-06012-00

Unavailable

8

GROMMET, ECU

6EY-8591S-00-00

Unavailable

9

BRACKET

6ET-81948-00-00

Unavailable

10

FUSE BOX ASSY

6EX-82170-02-00

Unavailable

11

. FUSE (3A)

67F-82151-30-00

Unavailable

12

. FUSE (10A)

67F-82151-40-00

Unavailable

13

FUSE

5JJ-82151-20-00

$7.99

14

FUSE

5JJ-82151-60-00

$7.99

15

. FUSE (50A)

6EX-82151-00-00

Unavailable

16

. RELAY ASSY

6EX-8195A-00-00

Unavailable

17

. PULLER, FUSE

6EX-2812A-00-00

Unavailable

18

BOLT, WITH WASHER

90119-06311-00

Unavailable

19

DAMPER, IGNITION C

6A0-82317-01-00

Unavailable

20

. COLLAR

90387-06119-00

Unavailable

21

SENSOR, LEAN ANGLE

6ET-82576-00-00

Unavailable

22

SCREW, TAPPING

97780-60025-00

Unavailable

23

COLLAR

90387-06M05-00

Unavailable

24

WIRE, PLUS LEAD

6JP-82115-00-00

Unavailable

25

WIRE, LEAD

6CS-82117-00-00

Unavailable

26

STARTER RELAY ASSY (2768102-A)

1B7-81940-00-00

Unavailable

27

BOLT, HEXAGON W/W DEEP RECESS

97E95-06612-00

Unavailable

28

STAY, RELAY

6CS-81953-00-00

Unavailable

29

BOLT, FLANGE

95814-06012-00

Unavailable

30

WIRE HARNESS ASSY 1

6MD-8259L-02-00

Unavailable

31

. COVER, CONNECTOR

6EM-82599-00-00

Unavailable

32

CLAMP

90465-14M66-00

Unavailable

33

TRIM, 1

F4P-U828H-00-00

Unavailable

34

BASE, CLAMP

F1W-U828M-00-00

Unavailable

35

RIVET, BLIND

90267-48802-00

Unavailable

36

CLAMP

90464-32801-00

Unavailable
