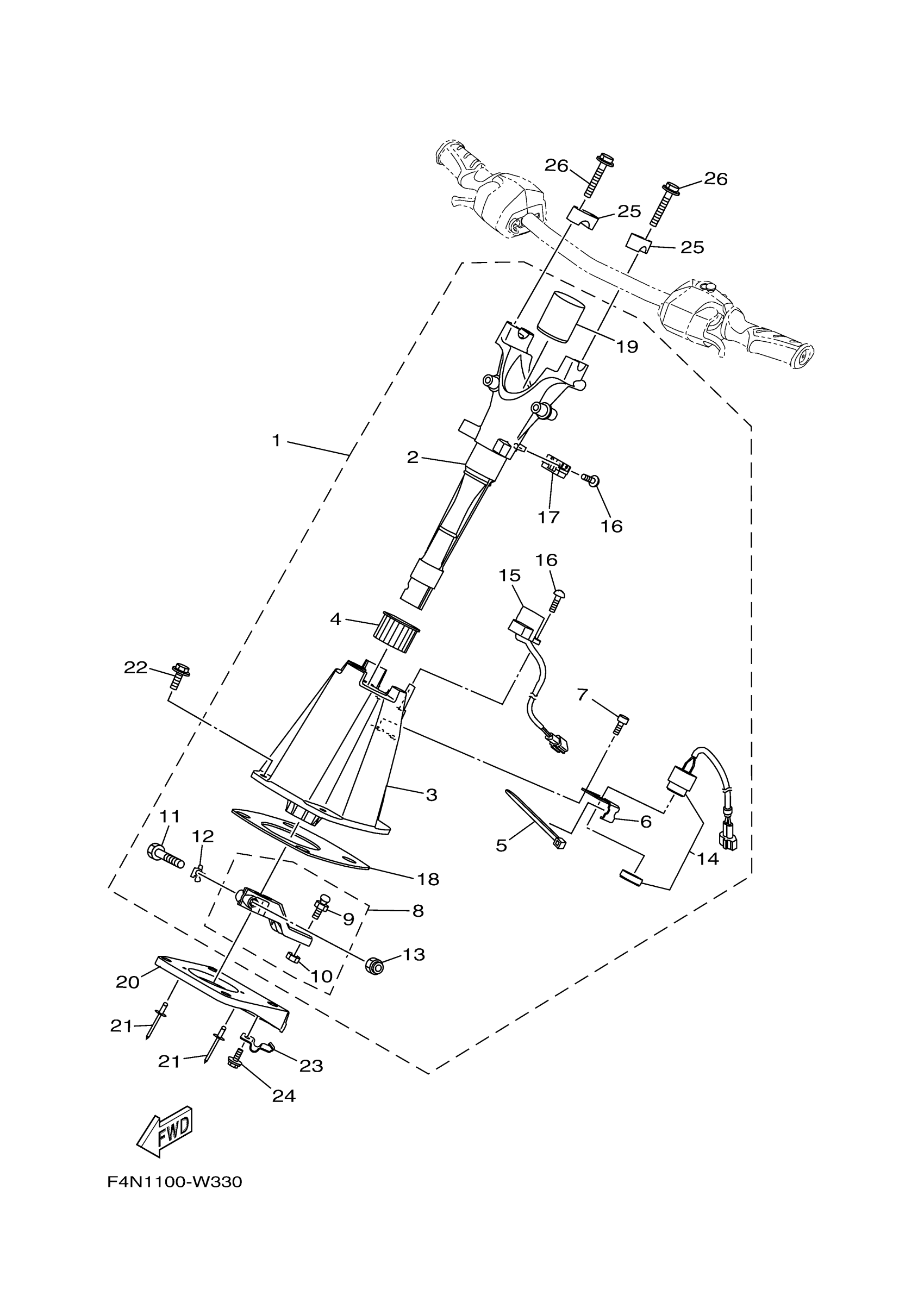

Yamaha VX1900AA (VX LIMITED HO) F7M1 2024 STEERING 2 Diagram

#

Description
Price

1

STEERING MASTER ASSY

F4N-61400-02-00

$650.73

2

. SHAFT

F3Y-6152D-00-00

$174.61

3

HOUSING ASSY

F2X-6152M-02-00

$147.75

4

. BUSH

F1K-6134M-00-00

$5.69

5

BAND

1UA-82591-00-00

$3.85

6

. SPACER, BRKT

F2P-6146H-00-00

$6.27

7

SCREW

F1B-613C1-10-00

Unavailable

8

ARM ASSY.

F1K-6153R-01-00

$134.31

9

STUD, JOINT BALL

EU0-61461-02-00

$14.16

10

NUT, SELF-LOCKING

95720-06300-00

$1.72

11

.. BOLT

F1K-61355-00-00

$17.15

12

. PLATE, RETAINING

F1K-6142B-00-00

$5.82

13

. NUT, SELF-LOCKING

95720-08300-00

$3.41

14

BUZZER

F1S-68341-00-00

$111.93

15

SENSOR, MAGNET

F2X-6838B-02-00

$132.82

16

. SCREW

F2X-613C1-00-00

$1.72

17

MAGNET

F2X-6838C-01-00

$26.10

18

. SEAL, RUBBER

F1K-6143C-00-00

$41.78

19

.. PIPE, SEAL

F2X-61435-00-00

$11.93

20

BRACKET,STOPPER CABLE

F3Y-U1467-00-00

$28.34

21

RIVET, BLIND

90267-489U2-00

$1.51

22

BOLT,WITH WASHER

90119-08870-00

$16.40

23

STOPPER, CABLE

F1K-U1468-03-00

$5.53

24

BOLT, WITH WASHER

90119-06830-00

Unavailable

25

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.09

26

BOLT, WITH WASHER

90119-08844-00

$1.37
