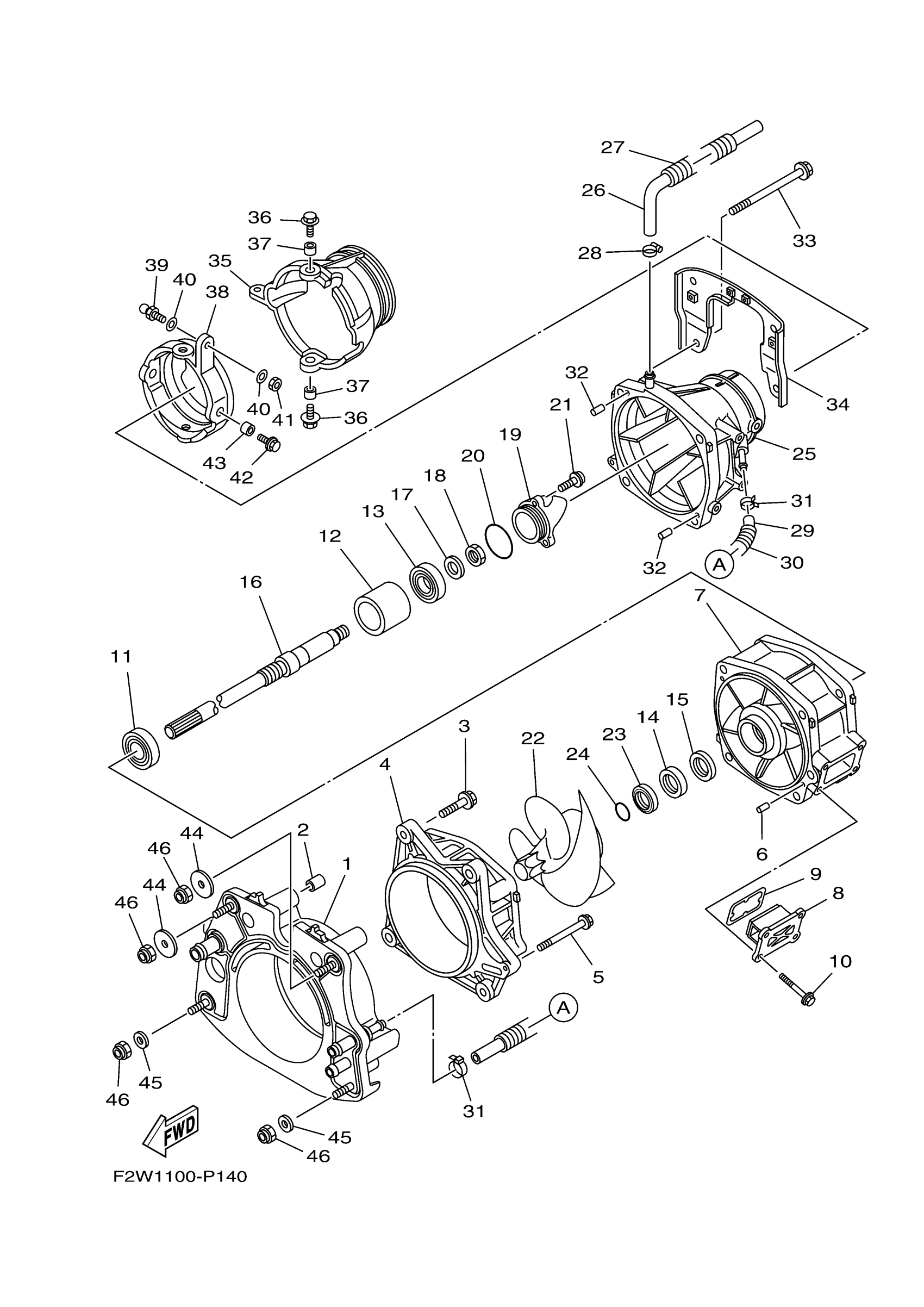

Yamaha VX1800R (VXS) F2W7 2016 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6CS-G5831-10-00

Unavailable

2

PIN, DOWEL(4JT)

99590-14016-00

$3.41

3

BOLT, WITH WASHER

90119-10811-00

$1.37

4

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

5

BOLT, WITH WASHER

90119-06894-00

$1.37

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

DUCT, IMPELLER

6CR-R1315-00-00

$93.30

8

FILTER

6EX-G6882-00-00

$6.59

9

. O-RING

66V-42414-00-00

$5.18

10

BOLT,WITH WASHER

90119-06890-00

$1.07

11

BEARING

93306-20654-00

$62.23

12

SPACER 1

6CS-G5538-00-00

$33.01

13

BEARING(3RR)

93306-30560-00

Unavailable

14

. OIL SEAL

93102-31009-00

$80.29

15

. OIL SEAL

93101-31001-00

$32.99

16

SHAFT, DRIVE

6S5-G5511-00-00

$276.63

17

WASHER

9290P-20600-00

$0.57

18

NUT

90170-20802-00

$14.35

19

CAP

6AN-R1326-00-00

$17.94

20

O-RING

93210-54010-00

$2.64

21

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

22

IMPELLER

6AP-R1321-20-00

$174.13

23

SPACER

6BH-51348-01-00

$61.99

24

O-RING (30X)

93210-30611-00

Unavailable

25

NOZZLE

6BH-R1318-01-00

$274.23

26

HOSE 1

6CN-U72M2-00-00

$5.44

27

TUBE

6ET-U773D-00-00

$2.50

28

BAND, HOSE 18

90601-118UF-00

$2.07

29

HOSE

6ET-U215E-00-00

$5.23

30

TUBE

6CN-U773D-00-00

$2.27

31

CLIP

90467-14803-00

$2.58

32

PIN, DOWEL (614)

93606-12019-00

$3.05

33

BOLT, WITH WASHER

90119-10807-00

$5.44

34

BRACKET 1

6EX-R1341-00-00

$15.14

35

NOZZLE, DEFLECTOR

6S5-R1313-01-00

$23.67

36

BOLT, WITH WASHER

90119-08852-00

$3.79

37

COLLAR(6R7)

90387-08M06-00

Unavailable

38

RING,TRIM

6AN-R1190-00-00

$21.53

39

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

40

WASHER,PLATE

90201-068M4-00

Unavailable

41

NUT

9538R-06700-00

$1.01

42

BOLT, WITH WASHER

90119-08852-00

$3.79

43

COLLAR(6R7)

90387-08M06-00

Unavailable

44

WASHER

F1S-U725E-01-00

$7.89

45

WASHER, PLATE

90201-10801-00

$3.52

46

NUT, NYLON

9572R-10300-00

$3.37
