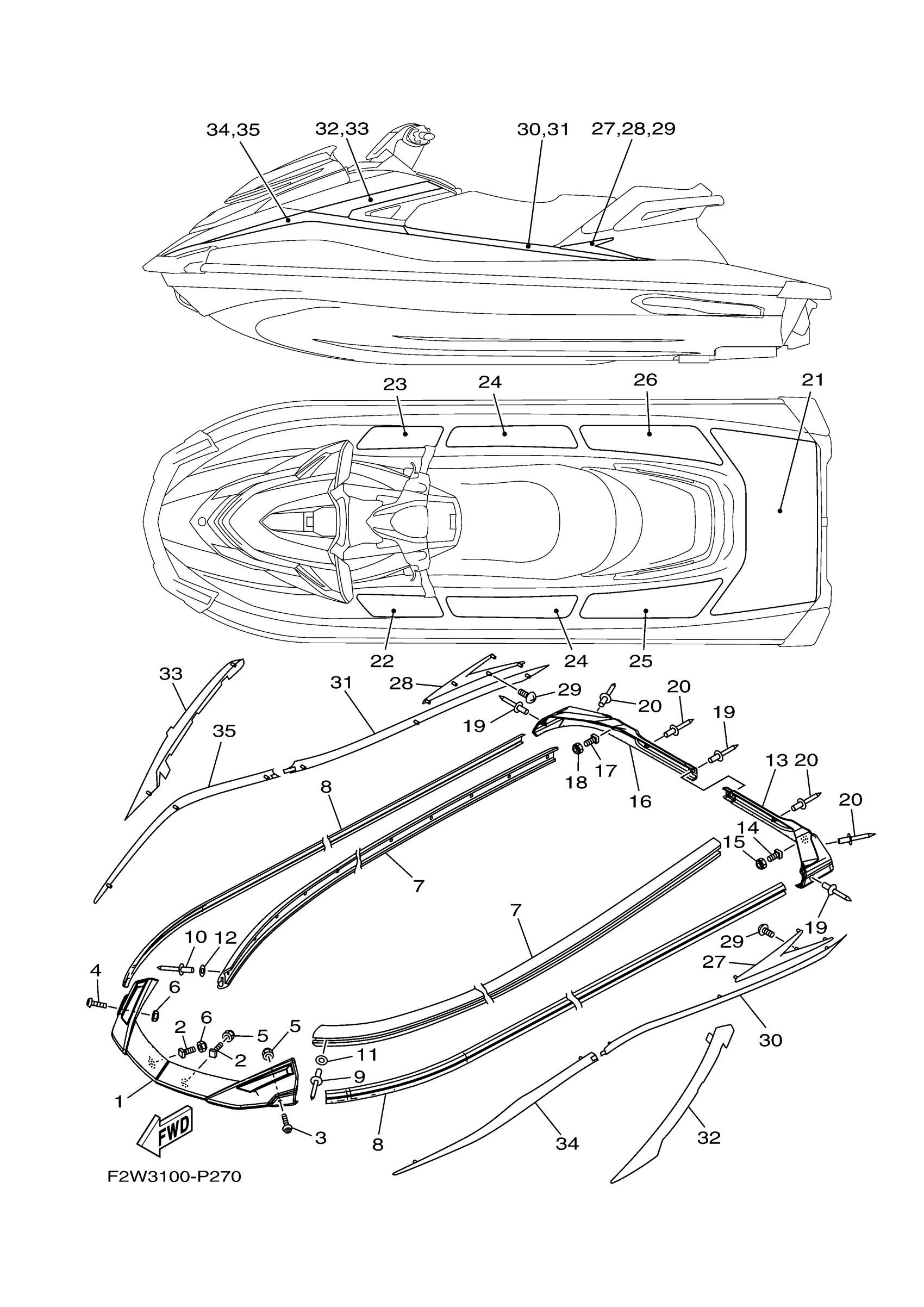

Yamaha VX1800R (VXS) F2W7 2016 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW (YB)

F2X-U2511-10-00

$48.05

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.30

4

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.30

5

NUT, LOCK

F2N-U142L-00-00

$1.43

6

NUT, LOCK

F2N-U142L-00-00

$1.43

7

GUNWALE, SIDE (YB)

F2X-U2512-10-00

$44.10

8

INNER,GUNWALE (RED)

F2X-U2519-40-00

$31.61

9

RIVET, BLIND

90267-489U8-00

$1.37

10

RIVET, BLIND

90267-489U8-00

$1.37

11

WASHER

9299R-05200-00

$4.60

12

WASHER

9299R-05200-00

$4.60

13

GUNWALE, STERN 1 (YB)

F2X-U251D-10-00

$18.37

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.43

16

GUNWALE, STERN 2 (YB)

F2X-U251E-10-00

$18.37

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

NUT, LOCK

F2N-U142L-00-00

$1.43

19

RIVET, BLIND

90267-48825-00

$2.16

20

RIVET, BLIND

90267-48825-00

$2.16

21

MAT, UPPER

F2X-U3581-01-00

$74.99

22

MAT, STEP 1

F2X-U351H-00-00

$20.57

23

MAT, STEP 2

F2X-U351J-00-00

$20.15

24

MAT, STEP 3

F2X-U351K-00-00

$17.22

25

MAT, STEP 4

F2X-U351M-00-00

$25.83

26

MAT, STEP 5

F2X-U351N-00-00

$25.83

27

ORNAMENT, LH

F2W-U517W-00-00

$172.04

28

ORNAMENT, RH

F2W-U517X-00-00

$37.32

29

SCREW

F2W-U13C1-01-00

Unavailable

30

ORNAMENT, STERN LH

F2X-U89A8-41-00

$85.28

31

ORNAMENT, STERN RH

F2X-U89A9-41-00

$197.04

32

ORNAMENT, MIDDLE LH

F2X-U89AA-41-00

$21.31

33

ORNAMENT, MIDDLE RH

F2X-U89AB-41-00

$157.34

34

ORNAMENT, BOW LH

F2X-U89AC-41-00

$251.46

35

ORNAMENT, BOW RH

F2X-U89AD-41-00

$166.16
