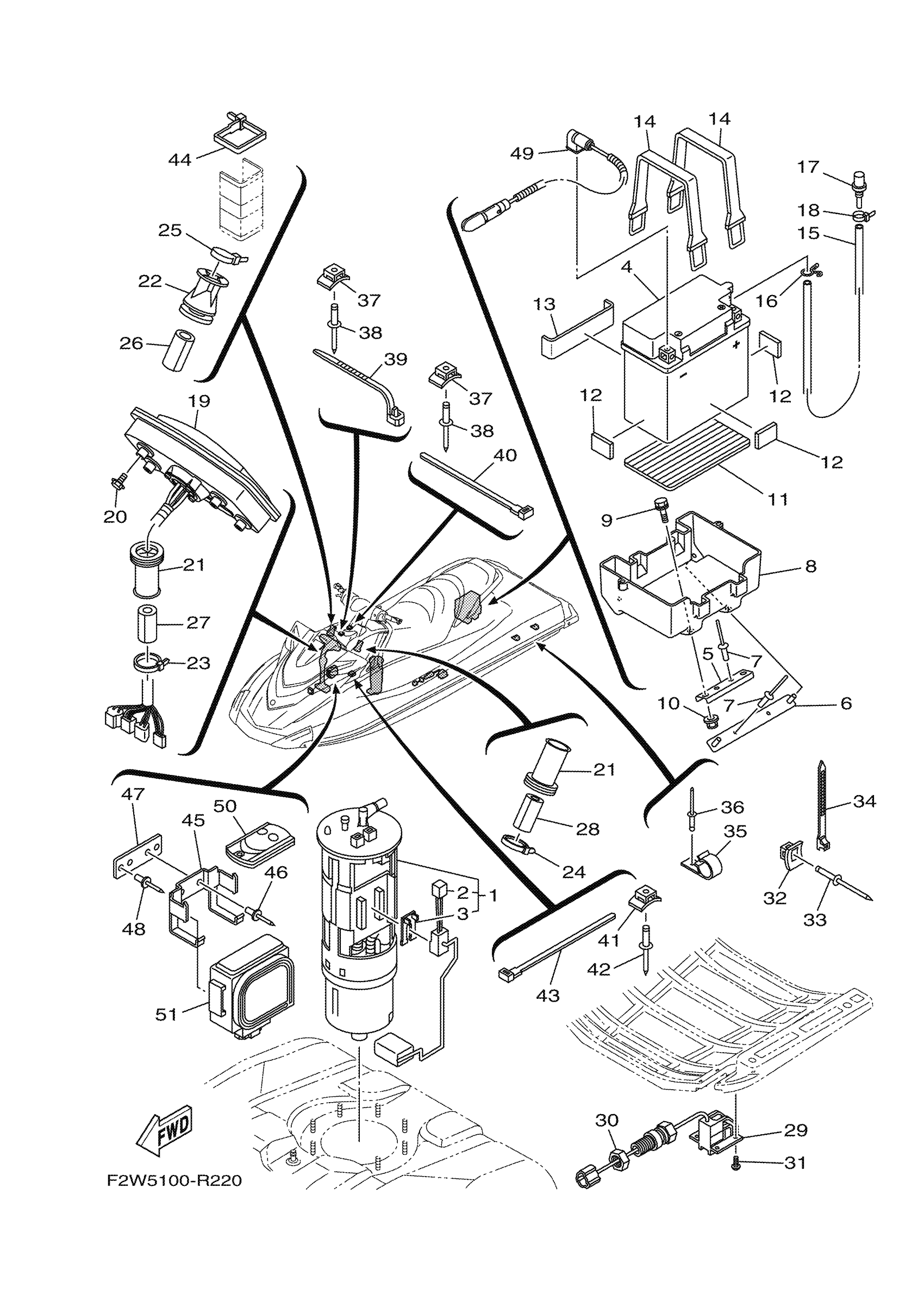

Yamaha VX1800R (VXS) F2W7 2016 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

BATTERY ASSY

EU0-82110-08-00

Unavailable

5

PLATE, BASE 2

F2S-U8592-00-00

$5.83

6

PLATE, BASE 3

F2S-U8593-00-00

$5.45

7

RIVET (EU0)

90267-48938-00

$5.00

8

CASE, BATTERY

F2S-U8211-00-00

$9.62

9

BOLT, WITH WASHER

90119-06820-00

$3.52

10

NUT, LOCK

F2N-U142L-00-00

$1.00

11

PAD, BATTERY

F1S-U8221-00-00

$2.75

12

PAD, BATTERY

EU0-U8221-31-00

$1.65

13

PAD, BATTERY

F1K-U8221-00-00

$2.66

14

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

15

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

16

CLIP

90467-089U1-00

$1.44

17

NIPPLE

GJ3-6215F-00-00

$9.08

18

CLAMP

90465-10098-00

$1.68

19

METER ASSY

F2W-6820A-01-00

$612.11

20

BOLT, WITH WASHER

90119-05803-00

$4.01

21

GROMMET

GU2-6822E-01-00

$24.98

22

GROMMET

F3J-U822E-01-00

$5.59

23

CLAMP

90464-32801-00

$1.23

24

CLAMP

90464-32801-00

$1.23

25

CLAMP

90464-32801-00

$1.23

26

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

27

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

28

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

29

SENSOR SPEED

F1S-U8K31-03-00

$142.18

30

NUT

F2C-U151S-00-00

$1.59

31

SCREW, ROUND HEAD

90150-05807-00

$0.79

32

BASE, CLAMP

F1W-U828M-00-00

$1.23

33

RIVET, BLIND

90267-489U6-00

$1.37

34

CLAMP

90464-32801-00

$1.23

35

CLAMP

F3J-U8368-01-00

$5.83

36

RIVET, BLIND

90267-409U5-00

Unavailable

37

BASE, CLAMP

F1W-U828M-00-00

$1.23

38

RIVET, BLIND

90267-489U6-00

$1.37

39

CLAMP

90464-32801-00

$1.23

40

BAND

90601-200U2-00

$3.16

41

BASE, CLAMP

F1W-U828M-00-00

$1.23

42

RIVET, BLIND

90267-489U6-00

$1.37

43

BAND

90601-200U2-00

$3.16

44

BAND

90601-200U2-00

$3.16

45

BRACKET

F1W-U826C-00-00

$18.17

46

RIVET (EU0)

90267-48938-00

$5.00

47

PLATE

F1W-U8376-00-00

$2.80

48

RIVET (EU0)

90267-48938-00

$5.00

49

WIRE, MINUS LEAD

6JP-82116-00-00

$65.14

50

XMTR. COMP.

6B6-86261-00-00

$228.48

51

RECEIVER COMPLETE

6B6-86265-00-00

$427.26
