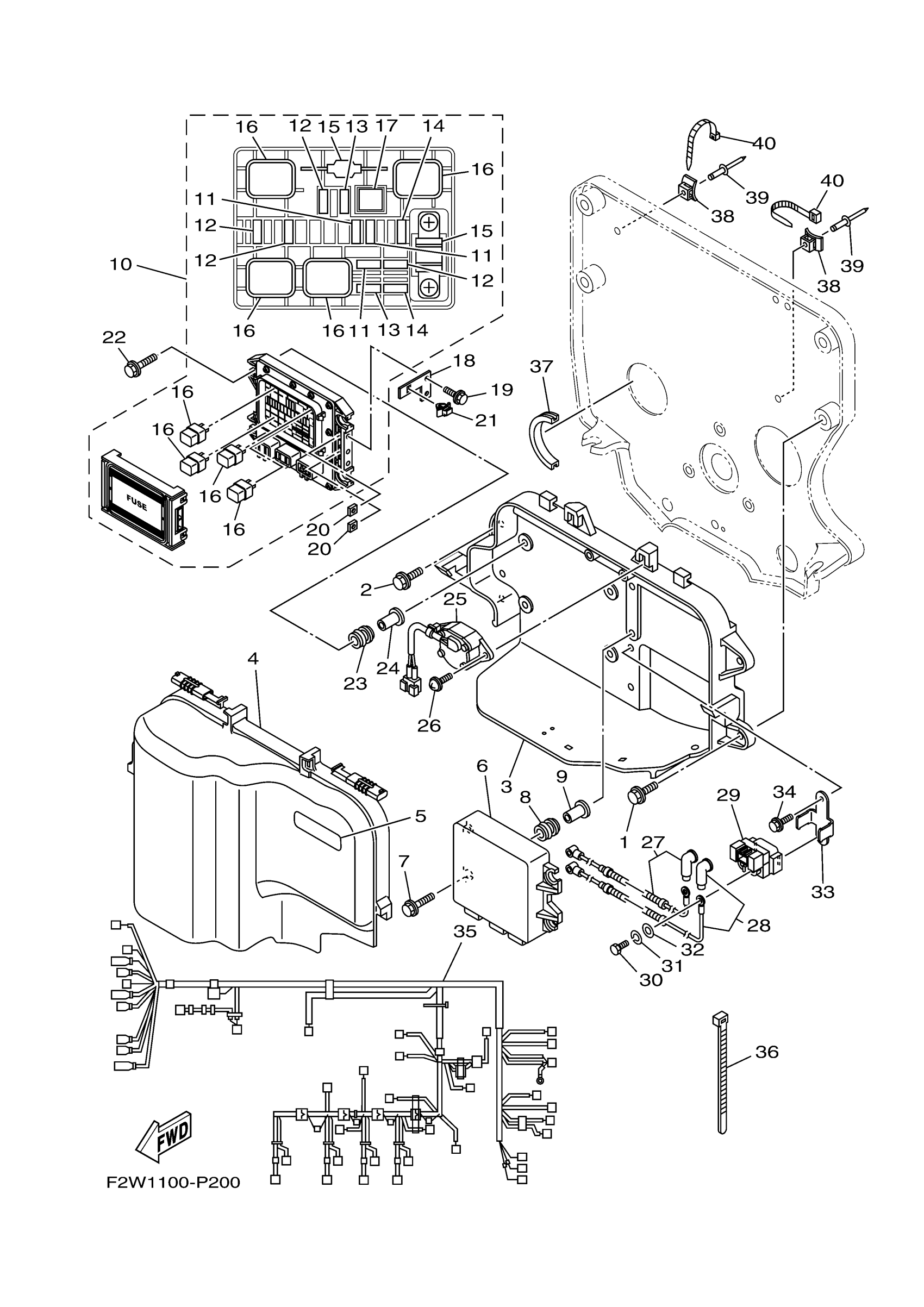

Yamaha VX1800R (VXS) F2W7 2016 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

$3.16

2

BOLT, WITH WASHER

90119-089UT-00

$3.16

3

PLATE

6CS-81845-00-00

$89.38

4

COVER

6S5-81942-11-00

Unavailable

5

LABEL, CAUTION 7

60E-83627-00-00

$4.55

6

ENGINE CONTROL UNIT ASSY

6EW-8591A-02-00

$1,863.62

7

BOLT, WITH WASHER

90119-06311-00

$1.58

8

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

9

. COLLAR

90387-06119-00

$4.37

10

FUSE BOX ASSY

6EX-82170-02-00

$195.31

11

. FUSE (3A)

67F-82151-30-00

$4.69

12

. FUSE (10A)

67F-82151-40-00

$6.07

13

FUSE

5JJ-82151-20-00

$5.98

14

FUSE

5JJ-82151-60-00

$5.98

15

. FUSE (50A)

6EX-82151-00-00

$3.64

16

. RELAY ASSY

6EX-8195A-00-00

$15.55

17

. PULLER, FUSE

6EX-2812A-00-00

$1.36

18

PLATE

6CS-82588-00-00

$4.09

19

BOLT, HEXAGON W/W DEEP RECESS

97E95-06514-00

$1.07

20

NUT, SQUARE(1HV)

90173-06015-00

Unavailable

21

CLAMP

90464-09M47-00

$4.07

22

BOLT, WITH WASHER

90119-06311-00

$1.58

23

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

24

. COLLAR

90387-06119-00

$4.37

25

SWITCH ASSY

6S5-8259E-00-00

$165.14

26

SCREW, TAPPING

97780-60520-00

$4.09

27

WIRE, PLUS LEAD

6JP-82115-00-00

$47.99

28

WIRE, LEAD

6CS-82117-00-00

$63.65

29

STARTER RELAY ASSY (2768102-A)

1B7-81940-00-00

Unavailable

30

BOLT(GH1)

97080-06012-00

$2.56

31

WASHER, SPRING

92995-06100-00

$2.95

32

WASHER, PLAIN (646)

92990-06600-00

Unavailable

33

STAY, RELAY

6CS-81953-00-00

$5.45

34

BOLT, FLANGE

95814-06012-00

$2.13

35

WIRE HARNESS ASSY 1

6EW-8259L-00-00

$1,412.11

36

CLAMP

90465-14M66-00

Unavailable

37

TRIM, 1

F1S-U828H-01-00

$6.52

38

BASE, CLAMP

F1W-U828M-00-00

$1.23

39

RIVET, BLIND

90267-48802-00

$1.98

40

CLAMP

90464-32801-00

$1.23
