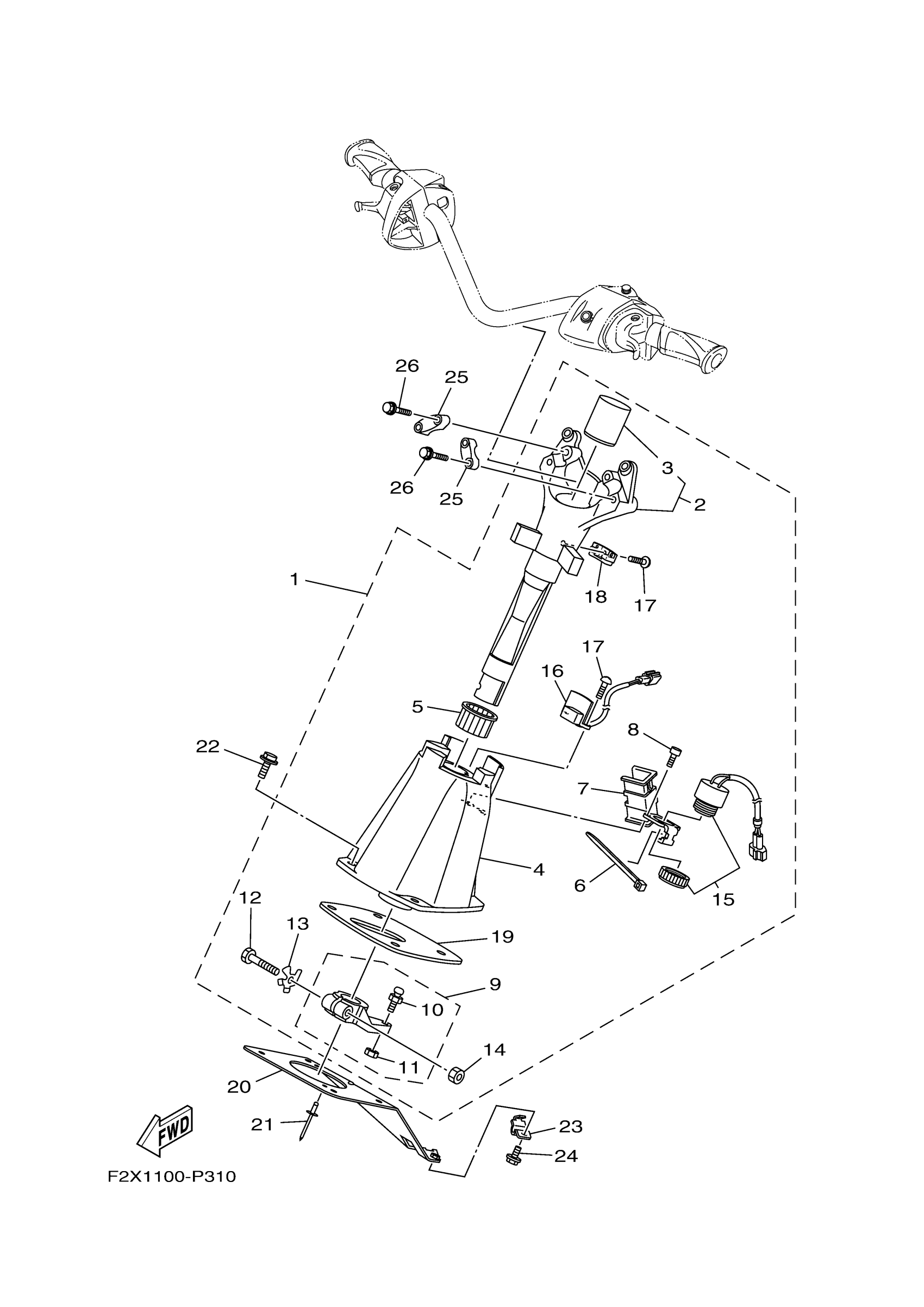

Yamaha VX1800P (VXS) F2W3 2015 STEERING 2 Diagram

#

Description

Price

1

STEERING MASTER ASSY

F2X-61400-04-00

Unavailable

2

. SHAFT ASSY

F2X-67410-00-00

Unavailable

3

.. PIPE, SEAL

F2X-61435-00-00

Unavailable

4

HOUSING ASSY

F2X-6152M-02-00

Unavailable

5

. BUSH

F1K-6134M-00-00

Unavailable

6

BAND

1UA-82591-00-00

$4.78

7

. SPACER, BRKT

F2X-6146H-00-00

Unavailable

8

SCREW

F1B-613C1-10-00

Unavailable

9

ARM ASSY.

F1K-6153R-01-00

Unavailable

10

STUD, JOINT BALL

EU0-61461-02-00

Unavailable

11

NUT, SELF-LOCKING

95720-06300-00

Unavailable

12

.. BOLT

F1K-61355-00-00

Unavailable

13

. PLATE, RETAINING

F1K-6142B-00-00

Unavailable

14

. NUT, SELF-LOCKING

95720-08300-00

Unavailable

15

BUZZER

F1S-68341-00-00

Unavailable

16

SENSOR, MAGNET

F2X-6838B-02-00

Unavailable

17

. SCREW

F2X-613C1-00-00

Unavailable

18

MAGNET

F2X-6838C-01-00

Unavailable

19

. SEAL, RUBBER

F1K-6143C-00-00

Unavailable

20

BRACKET,STOPPER CABLE

F1K-U1467-01-00

Unavailable

21

RIVET, BLIND

90267-489U2-00

Unavailable

22

BOLT,WITH WASHER

90119-08870-00

Unavailable

23

STOPPER, CABLE

F1K-U1468-03-00

Unavailable

24

BOLT, WITH WASHER

90119-06830-00

Unavailable

25

HOLDER, HANDLE UPPER

EU0-23814-32-00

Unavailable

26

BOLT, WITH WASHER

90119-08844-00

Unavailable
