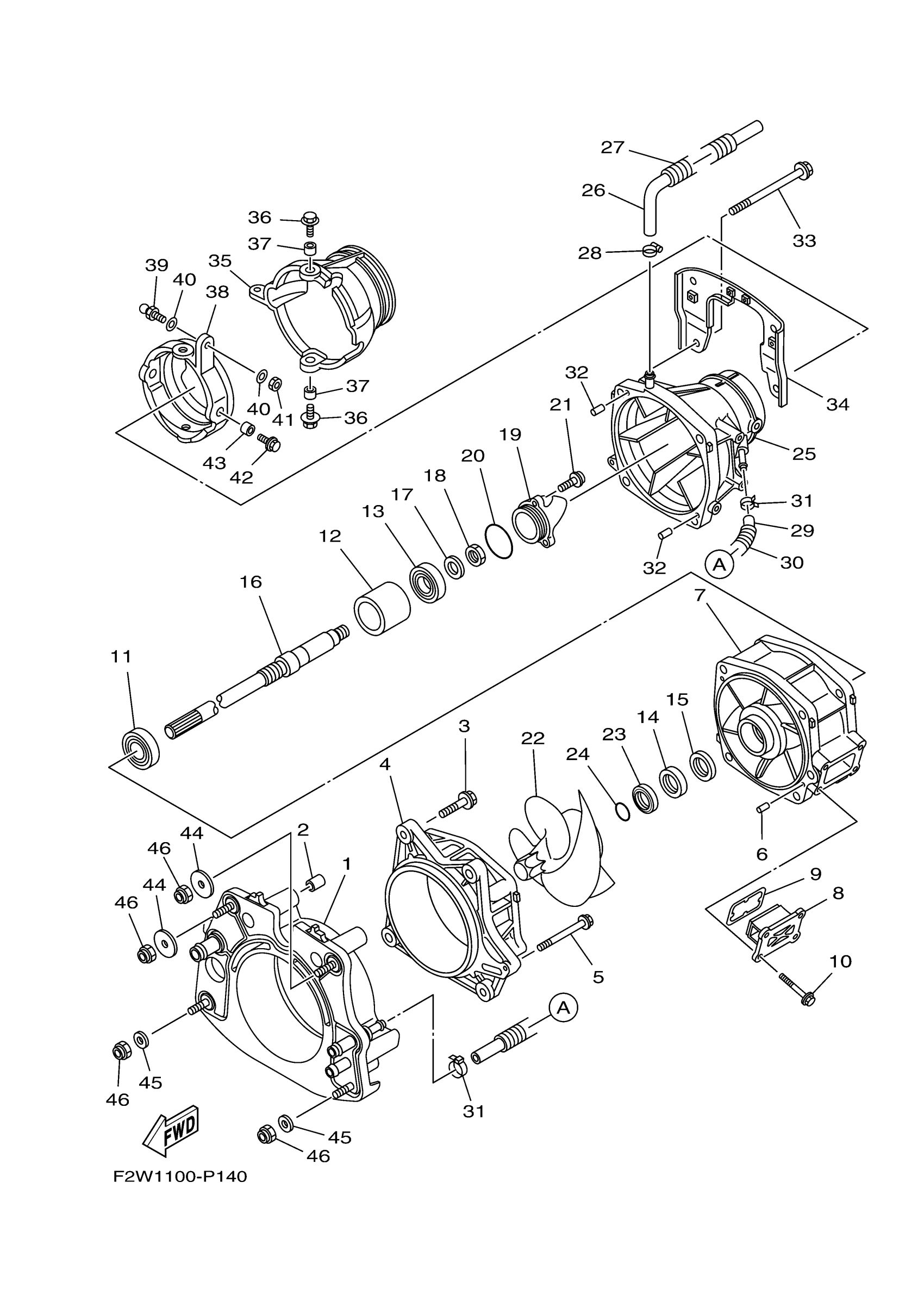

Yamaha VX1800P (VXS) F2W3 2015 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6CS-G5831-10-00

Unavailable

2

PIN, DOWEL(4JT)

99590-14016-00

$4.24

3

BOLT, WITH WASHER

90119-10811-00

Unavailable

4

HOUSING, IMPELLER

6CR-R1312-00-00

Unavailable

5

BOLT, WITH WASHER

90119-06894-00

Unavailable

6

PIN, DOWEL (614)

93606-12019-00

$4.24

7

DUCT, IMPELLER

6CR-R1315-00-00

Unavailable

8

FILTER

6EX-G6882-00-00

Unavailable

9

. O-RING

66V-42414-00-00

Unavailable

10

BOLT,WITH WASHER

90119-06890-00

Unavailable

11

BEARING

93306-20654-00

$76.99

12

SPACER 1

6CS-G5538-00-00

Unavailable

13

BEARING(3RR)

93306-30560-00

Unavailable

14

. OIL SEAL

93102-31009-00

Unavailable

15

. OIL SEAL

93101-31001-00

Unavailable

16

SHAFT, DRIVE

6S5-G5511-00-00

Unavailable

17

WASHER

9290P-20600-00

Unavailable

18

NUT

90170-20802-00

Unavailable

19

CAP

6AN-R1326-00-00

Unavailable

20

O-RING

93210-54010-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

Unavailable

22

IMPELLER

6AP-R1321-20-00

Unavailable

23

SPACER

6BH-51348-01-00

Unavailable

24

O-RING (30X)

93210-30611-00

Unavailable

25

NOZZLE

6BH-R1318-01-00

Unavailable

26

HOSE 1

6CN-U72M2-00-00

Unavailable

27

TUBE

6CN-U773D-01-00

Unavailable

28

BAND, HOSE 18

90601-118UF-00

Unavailable

29

HOSE

6ET-U215E-00-00

Unavailable

30

TUBE

6ET-U773D-00-00

Unavailable

31

CLIP

90467-14803-00

Unavailable

32

PIN, DOWEL (614)

93606-12019-00

$4.24

33

BOLT, WITH WASHER

90119-10807-00

Unavailable

34

BRACKET 1

6EX-R1341-00-00

Unavailable

35

NOZZLE, DEFLECTOR

6S5-R1313-01-00

Unavailable

36

BOLT, WITH WASHER

90119-08852-00

Unavailable

37

COLLAR(6R7)

90387-08M06-00

Unavailable

38

RING,TRIM

6AN-R1190-00-00

Unavailable

39

STUD, JOINT BALL

GH3-U146E-00-00

Unavailable

40

WASHER,PLATE

90201-068M4-00

Unavailable

41

NUT

9538R-06700-00

Unavailable

42

BOLT, WITH WASHER

90119-08852-00

Unavailable

43

COLLAR(6R7)

90387-08M06-00

Unavailable

44

WASHER

F1S-U725E-01-00

Unavailable

45

WASHER, PLATE

90201-10801-00

Unavailable

46

NUT, NYLON

9572R-10300-00

Unavailable
