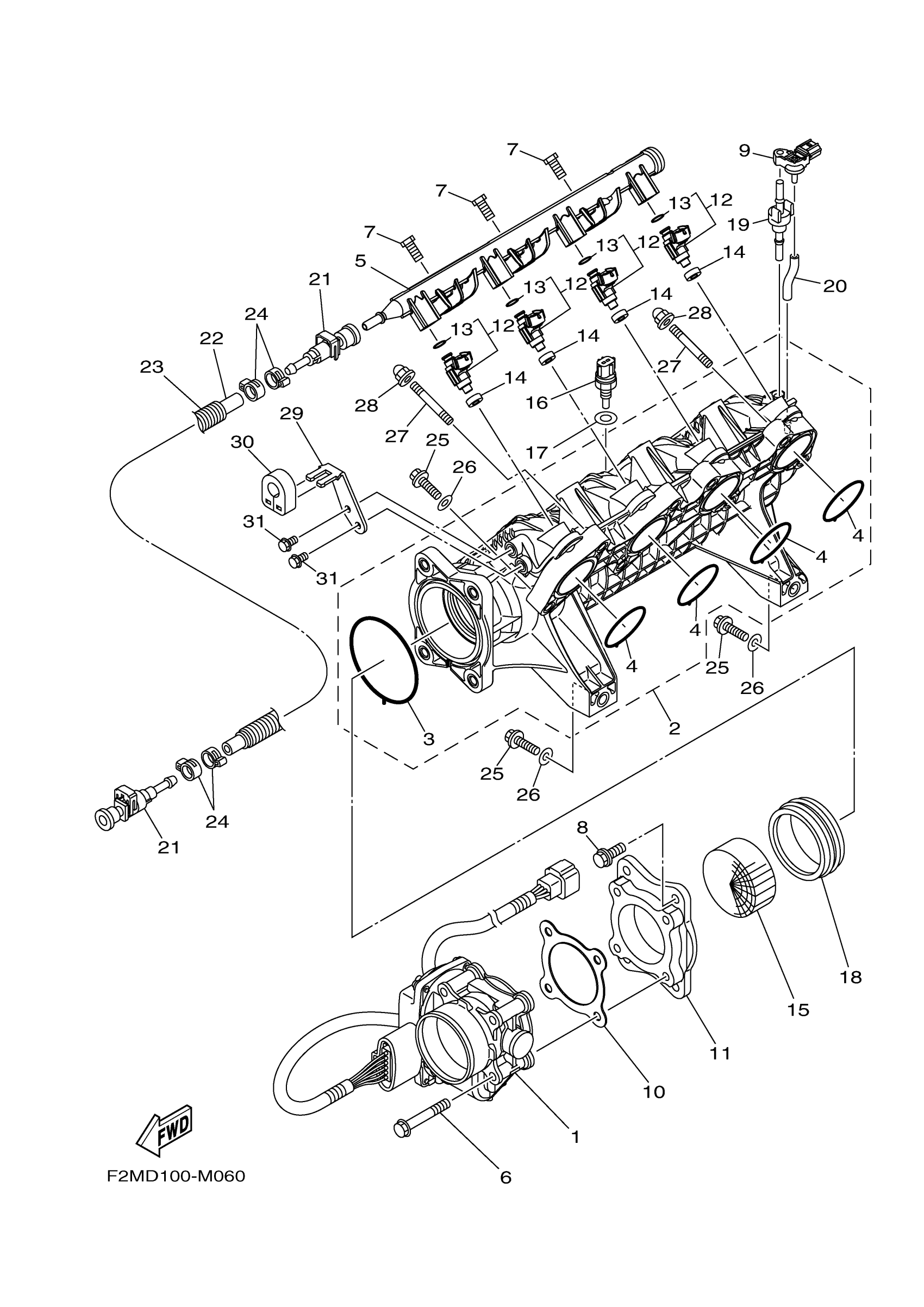

Yamaha VX1800P (VXS) F2W3 2015 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6BH-13750-03-00

Unavailable

2

MANIFOLD, INTAKE 1

6BH-13641-10-00

$374.61

3

. GASKET, INSULATING

6BH-14156-00-00

$19.39

4

. GASKET

6BH-14126-00-00

$12.91

5

DELIVERY PIPE

6CS-12880-00-00

$162.67

6

BOLT, FLANGE

90105-08243-00

$1.72

7

BOLT

6CS-14446-00-00

$8.94

8

BOLT (682)

97013-08025-00

$6.34

9

. SENSOR, PRESSURE

6BH-82380-00-00

$274.61

10

GASKET

6CR-14536-00-00

$9.11

11

SPACER

6CR-14163-00-00

$73.12

12

INJECTOR

6S5-13761-10-00

$164.15

13

. O-RING

68V-1416A-00-00

$11.01

14

. GASKET, MANIFOLD

8FP-13556-10-00

$5.69

15

RIBBON

6D3-1444B-01-00

Unavailable

16

THERMOSENSOR

65L-85886-00-00

$60.03

17

. WASHER

6S5-14285-00-00

$2.16

18

HOLDER

6S5-14457-00-00

$77.60

19

GROMMET

6BH-14445-00-00

$20.88

20

HOSE, VACUUM SENSING 3

6BH-13532-00-00

$6.27

21

FUEL PIPE JOINT

6S5-24300-01-00

$29.84

22

HOSE

6CN-14294-20-00

Unavailable

23

TUBE (L610)

90447-19020-00

$12.67

24

HOSE CLAMP ASSY

90450-17M17-00

$7.59

25

BOLT

97013-08035-00

Unavailable

26

.. WASHER, PLATE

92990-08600-00

$2.41

27

BOLT, STUD

90116-08032-00

$3.41

28

NUT, CROWN(4BR)

90176-08080-00

Unavailable

29

PLATE, STAY

6CR-14572-00-00

$7.16

30

GROMMET

6CS-14445-01-00

$5.37

31

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable
