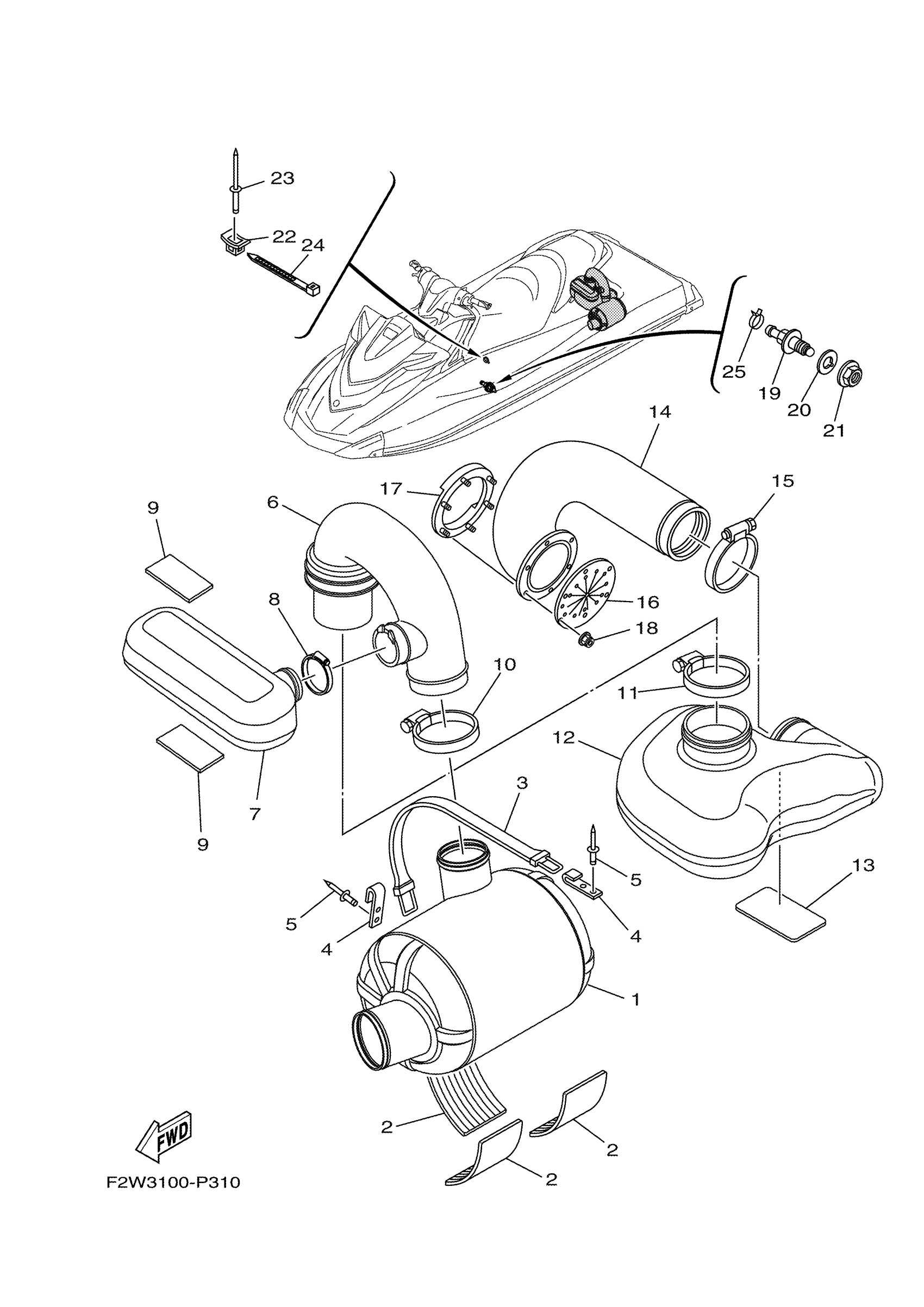

Yamaha VX1800P (VXS) F2W3 2015 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F4P-U7550-00-00

$322.71

2

PAD, BATTERY

F1S-U8221-00-00

$2.75

3

BAND, FUEL TANK

EW2-67821-00-00

$38.49

4

HOOK A

GA7-65772-00-00

$9.08

5

RIVET (EU0)

90267-48938-00

$5.00

6

HOSE, EXHAUST

F2S-U7555-01-00

$72.71

7

RESONATOR 1

F2S-U753C-00-00

$120.03

8

BAND, HOSE 70

90601-170UG-00

$5.67

9

MAT 2

F1K-U759C-00-00

$1.72

10

HOSE CLAMP ASSY

90450-99801-00

$3.79

11

HOSE CLAMP ASSY

90450-99804-00

Unavailable

12

TANK, WATER

F2N-U4261-00-00

$85.21

13

PAD, BATTERY

F1S-U8221-00-00

$2.75

14

HOSE,EXHAUST 3

F2N-U758D-00-00

$190.89

15

HOSE CLAMP ASSY

90450-99801-00

$3.79

16

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

17

PLATE

F1S-U757B-01-00

$22.97

18

NUT, LOCK

F2N-U142L-00-00

$1.00

19

PILOT, WATER

F2C-U753B-01-00

$2.44

20

GASKET

F2C-U7564-02-00

$4.77

21

NUT

F2C-U2733-00-00

$1.87

22

BASE, CLAMP

F1W-U828M-00-00

$1.23

23

RIVET, BLIND

90267-489U6-00

$1.37

24

CLAMP

90464-32801-00

$1.23

25

CLIP

90467-17802-00

$2.87
