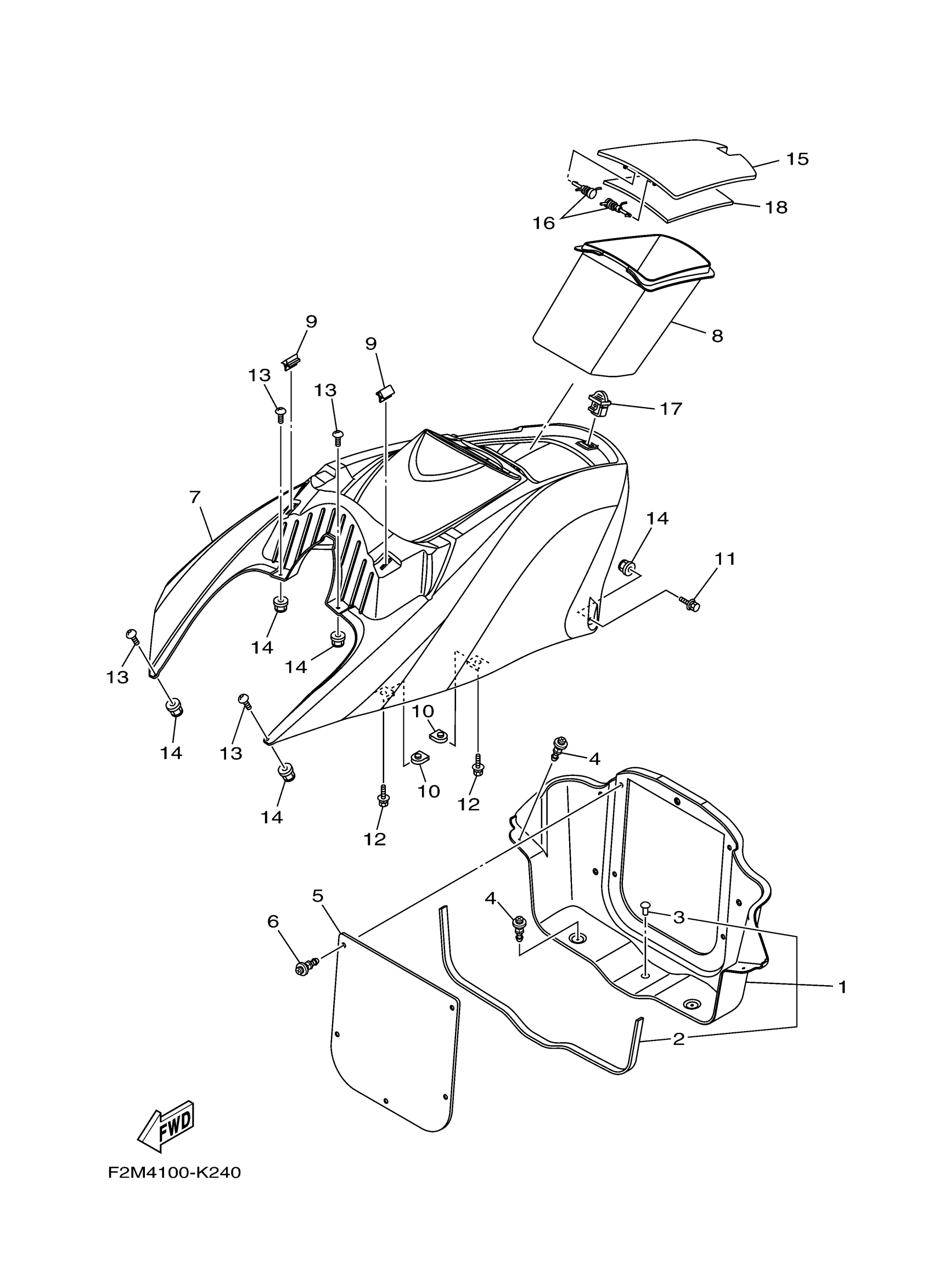

Yamaha VX1800N (VXS) F2MK 2014 ENGINE HATCH 1 Diagram

#

Description
Price

1

LOCKER,BOW

F2N-U475B-04-00

$97.00

2

PACKING 4

F2C-U266C-00-00

$7.24

3

. PLUG, BLIND

90605-502U1-00

$2.30

4

RIVET

90269-08801-00

$1.23

5

PLATE, LOKER BOW

F1W-U475F-01-00

$13.63

6

RIVET

90269-08801-00

$1.23

7

COVER, ENGINE HATCH (LNMP) (LIGHT GRAY METALLIC 3)

F2N-U516N-00-P4

$247.75

8

BOX GLOVE

F2N-U516P-00-00

$95.51

9

PACKING 4

F1K-U266C-10-00

$2.24

10

NUT, SPRING(GJ3)

90183-06902-00

$8.53

11

BOLT, WITH WASHER

90119-06880-00

$3.65

12

BOLT, WITH WASHER

90119-06878-00

$3.59

13

SCREW

F2N-67823-10-00

$2.16

14

NUT, LOCK

F2N-U142L-00-00

$1.00

15

LID HATCH

F2N-U517H-01-00

$50.26

16

PIN, HINGE

F0X-6517R-01-00

$7.97

17

LOCK

GU2-62875-02-00

$34.45

18

PACKING CASE

F2P-U519D-00-00

$23.12
