ELECTRICAL 2

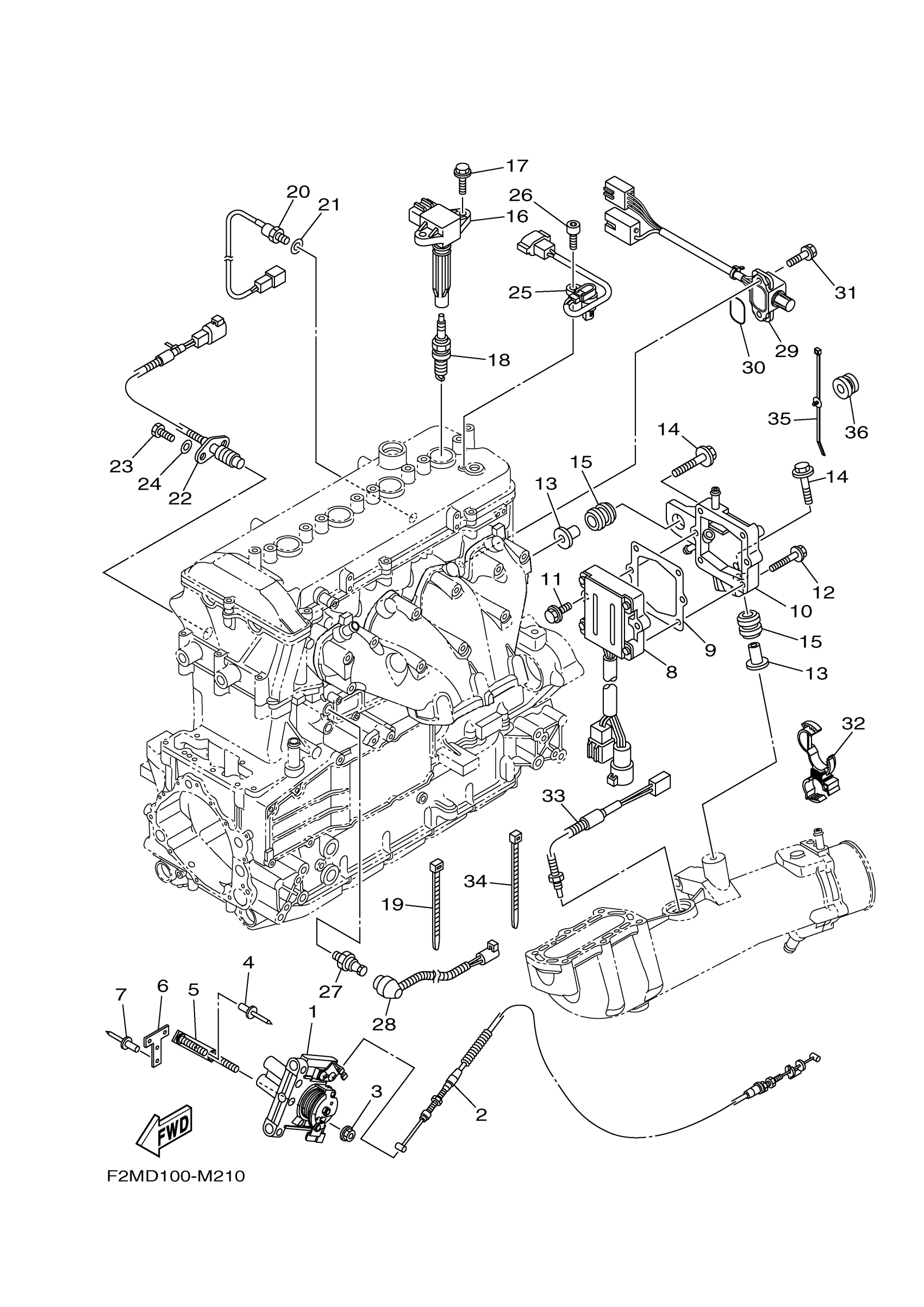

Yamaha VX1800N (VXS) F2MK 2014 ELECTRICAL 2 Diagram
#
1
ACCEL. POSITON SENSOR ASSY
6D3-14305-21-00
Unavailable
2
CABLE, THROTTLE 1
6BU-26311-00-00
Unavailable
3
NUT, NYLON (6J8)
95780-08300-00
Unavailable
4
RIVET (EU0)
90267-48938-00
Unavailable
5
BRACKET, THROTTLE
F2N-U7254-00-00
Unavailable
6
PLATE
F2P-U8376-00-00
Unavailable
7
RIVET (EU0)
90267-48938-00
Unavailable
8
RECTIFIER & REGULATOR ASSY
6S5-81960-11-00
Unavailable
9
PLATE, RECTIFIER FITTING
6S5-81975-00-00
Unavailable
10
COVER, RECTIFIER
6S5-81972-01-94
Unavailable
11
BOLT, WITH WASHER
90119-06MA3-00
Unavailable
12
BOLT, WITH WASHER
90119-06048-00
Unavailable
13
COLLAR
90387-08M37-00
Unavailable
14
BOLT, WITH WASHER
90119-08187-00
Unavailable
15
GROMMET
90480-22M15-00
Unavailable
16
IGNITION COIL ASSY
6S5-82310-10-00
Unavailable
17
BOLT,FLANGE (EW2)
90105-06903-00
Unavailable
18
PLUG, SPARK (NGK LFR6A-00)
LFR-6A000-00-00
Unavailable
19
CLAMP
90465-13M18-00
Unavailable
20
THERMOSENSOR ASSY
61A-85790-01-00
Unavailable
21
WASHER, PLATE
92990-10600-00
Unavailable
22
THERMO SWITCH ASSY
6CR-82560-00-00
Unavailable
23
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
24
WASHER, PLAIN (646)
92990-06600-00
Unavailable
25
SENSOR, CAM POSITION
60E-85896-02-00
Unavailable
26
BOLT,SOCKET
91380-06016-00
Unavailable
27
OIL PRESSURE SWITCH ASSY
68V-82504-00-00
Unavailable
28
LEAD WIRE ASSY
6S5-81315-01-00
Unavailable
29
EARTH PLATE COMP.
6CS-8273J-11-00
Unavailable
30
O-RING (341)
93210-32172-00
Unavailable
31
BOLT, WITH WASHER
90119-06MA3-00
Unavailable
32
CLAMP
90464-20008-00
Unavailable
33
THERMOSENSOR ASSY
6AA-85790-00-00
Unavailable
34
CLAMP
90464-20005-00
Unavailable
35
CLAMP
90464-31002-00
Unavailable
36
GROMMET 437147470000
90480-20132-00
Unavailable
