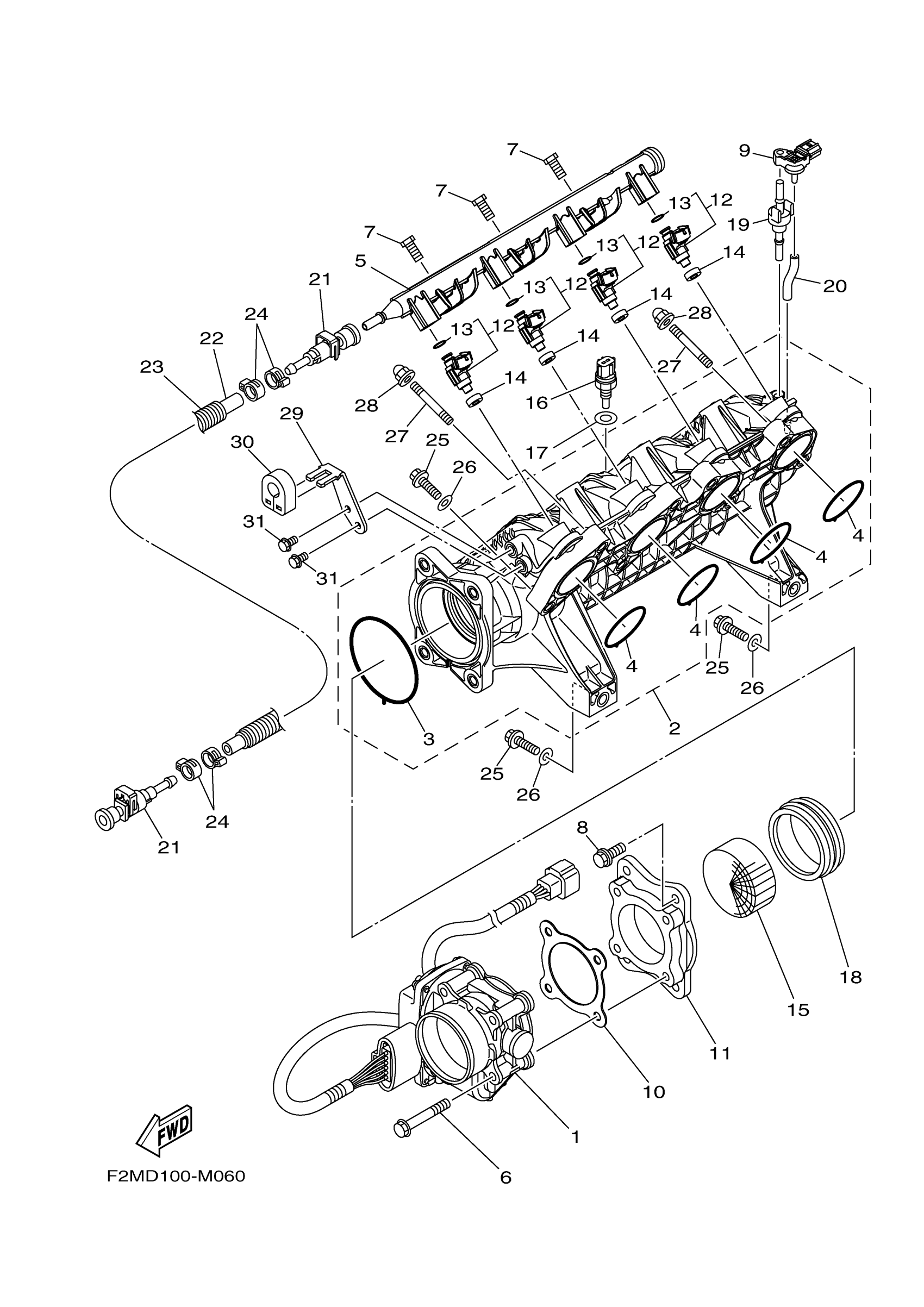

Yamaha VX1800M (VXS) F2MF 2013 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6BH-13750-03-00

Unavailable

2

MANIFOLD, INTAKE 1

6BH-13641-10-00

$380.29

3

. GASKET, INSULATING

6BH-14156-00-00

$19.49

4

. GASKET

6BH-14126-00-00

$12.59

5

DELIVERY PIPE

6CS-12880-00-00

$165.14

6

BOLT, FLANGE

90105-08243-00

$1.82

7

BOLT

6CS-14446-00-00

$9.08

8

BOLT (682)

97013-08025-00

$6.34

9

. SENSOR, PRESSURE

6BH-82380-00-00

$278.77

10

GASKET

6CR-14536-00-00

$8.88

11

SPACER

6CR-14163-00-00

$74.23

12

INJECTOR

6S5-13761-10-00

$175.86

13

. O-RING

68V-1416A-00-00

$10.18

14

. GASKET, MANIFOLD

8FP-13556-10-00

$5.55

15

RIBBON

6D3-1444B-01-00

Unavailable

16

THERMOSENSOR

65L-85886-00-00

$57.25

17

. WASHER

6S5-14285-00-00

$2.19

18

HOLDER

6S5-14457-00-00

$78.49

19

GROMMET

6BH-14445-00-00

$20.99

20

HOSE, VACUUM SENSING 3

6BH-13532-00-00

$6.36

21

FUEL PIPE JOINT

6S5-24300-01-00

$30.29

22

HOSE

6CN-14294-20-00

Unavailable

23

TUBE (L610)

90447-19020-00

$12.86

24

HOSE CLAMP ASSY

90450-17M17-00

$7.40

25

BOLT

97013-08035-00

Unavailable

26

.. WASHER, PLATE

92990-08600-00

$2.17

27

BOLT, STUD

90116-08032-00

$3.33

28

NUT, CROWN(4BR)

90176-08080-00

Unavailable

29

PLATE, STAY

6CR-14572-00-00

$7.27

30

GROMMET

6CS-14445-01-00

$5.45

31

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable
