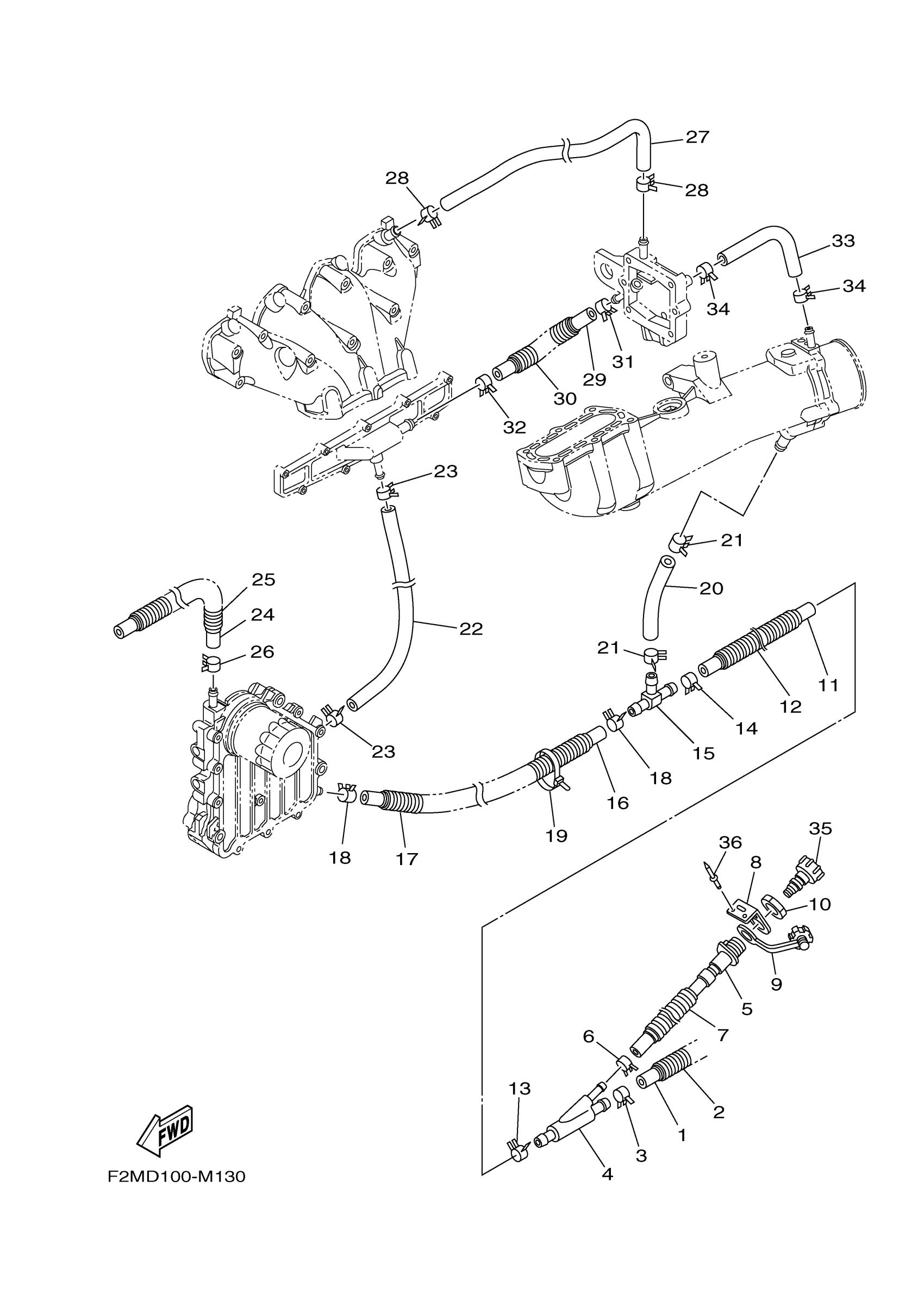

Yamaha VX1800M (VXS) F2MF 2013 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L250)

90445-21806-00

$12.86

2

TUBE

F2T-U773D-20-00

Unavailable

3

CLIP

90467-200A3-00

$5.92

4

JOINT, HOSE 1

60E-12581-00-00

$15.49

5

JOINT ASSY

63M-12580-00-00

$99.98

6

CLIP

90467-150A5-00

$2.64

7

TUBE (L485)

90447-19801-00

$3.56

8

STAY

60E-12443-00-00

$2.95

9

CAP,1

682-84385-01-00

$9.08

10

NUT

EU0-61652-00-00

$11.48

11

HOSE 2

6S5-1243E-01-00

$22.11

12

TUBE

F2T-U773D-00-00

$1.36

13

CLIP

90467-200A3-00

$5.92

14

CLIP

90467-200A3-00

$5.92

15

JOINT, HOSE 3

6BH-12584-00-00

$4.44

16

HOSE (L400)

90445-18012-00

$24.98

17

TUBE (L260)

90447-19005-00

$3.64

18

CLIP

90467-160A0-00

$2.95

19

CLAMP(3XW)

90464-35132-00

Unavailable

20

HOSE 6

6S5-12589-01-00

Unavailable

21

CLIP

90467-200A3-00

$5.92

22

HOSE 5

6BH-1244H-00-00

$20.99

23

. CLIP

90467-150A1-00

$3.33

24

HOSE 5

6CN-12588-00-00

Unavailable

25

TUBE (L860)

90447-19021-00

$6.36

26

CLIP

90467-160A0-00

$2.95

27

HOSE 2

6BH-12577-00-00

$20.99

28

CLIP

90467-160A0-00

$2.95

29

HOSE 4

6S5-12579-00-00

$14.44

30

TUBE (L150)

90447-19011-00

$2.73

31

CLIP

90467-160A0-00

$2.95

32

CLIP

90467-170A5-00

$4.55

33

HOSE (L220)

90445-16013-00

$11.35

34

CLIP

90467-160A0-00

$2.95

35

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

36

RIVET (EU0)

90267-48938-00

$5.00
