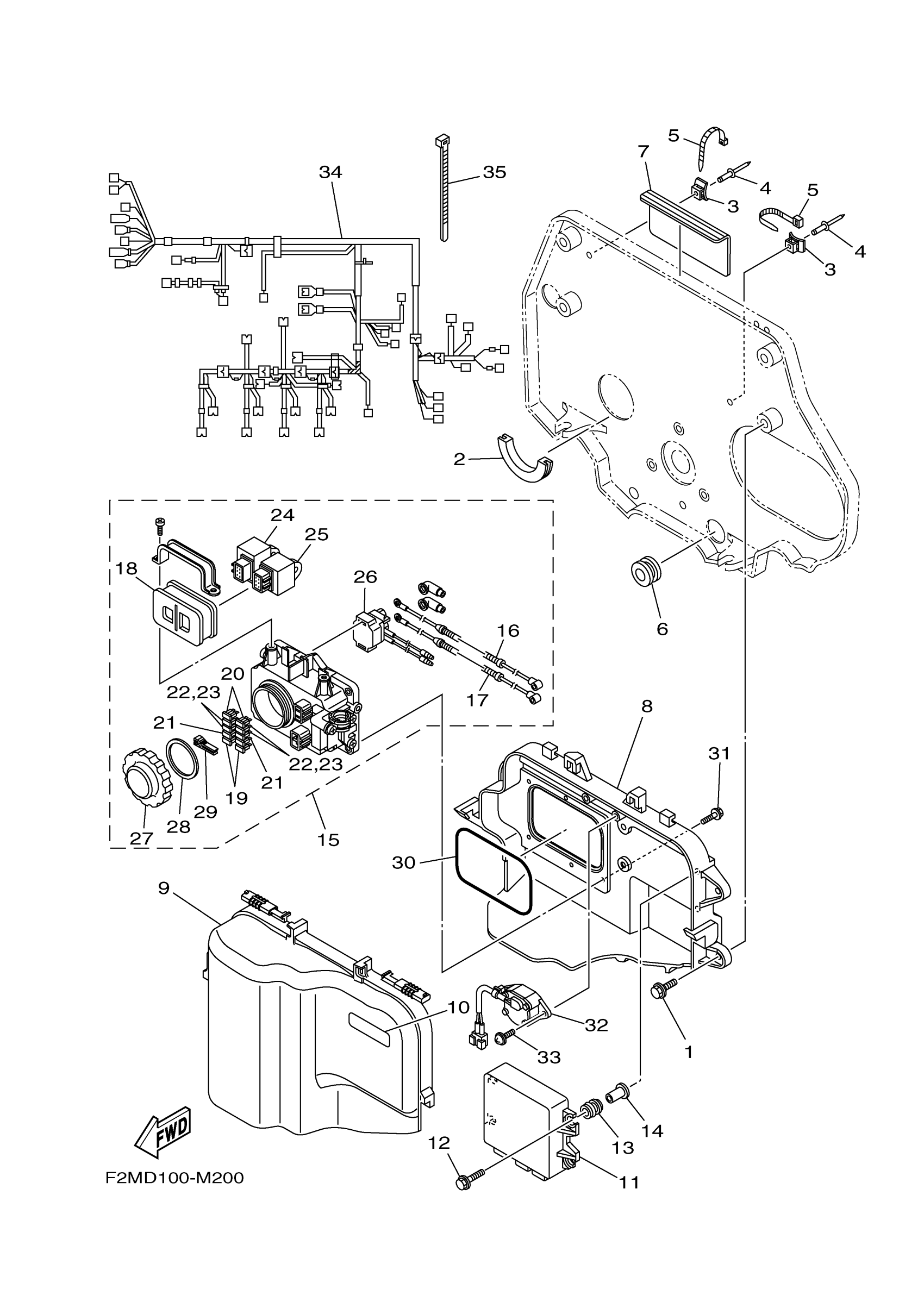

Yamaha VX1800M (VXS) F2MF 2013 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

$3.16

2

TRIM, 1

F1S-U828H-01-00

$6.52

3

BASE, CLAMP

F1W-U828M-00-00

$1.23

4

RIVET, BLIND

90267-48802-00

$1.98

5

CLAMP

90464-32801-00

$1.23

6

GROMMET

90480-38800-00

$2.73

7

PAD, BATTERY

F1S-U8221-00-00

$2.75

8

PLATE

6BH-81845-01-00

Unavailable

9

COVER

6S5-81942-11-00

Unavailable

10

LABEL, CAUTION 7

60E-83627-00-00

$4.55

11

ENGINE CONTROL UNIT ASSY

6CN-8591A-20-00

$1,922.71

12

BOLT, WITH WASHER

90119-06311-00

$1.58

13

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

14

. COLLAR

90387-06119-00

$4.37

15

FUSE BOX ASSY

6BH-82170-00-00

$666.65

16

. WIRE, PLUS LEAD

6S5-82115-00-00

$78.17

17

. WIRE, LEAD

6S5-82117-00-00

$103.02

18

. DAMPER

6D3-82157-00-00

$33.99

19

FUSE

5JJ-82151-20-00

Unavailable

20

FUSE

5JJ-82151-60-00

Unavailable

21

. FUSE (3A)

67F-82151-30-00

$4.69

22

. FUSE (10A)

67F-82151-40-00

$6.07

23

. FUSE (10A)

67F-82151-40-00

$6.07

24

RELAY ASSY

60E-81950-00-00

$137.93

25

. RELAY ASSY

68V-81950-00-00

$111.74

26

. STARTER RELAY ASSY

6B6-81940-00-00

$97.06

27

. CAP

66V-8132W-00-00

$11.85

28

. GASKET

66V-81844-00-00

Unavailable

29

. PULLER, FUSE

67F-2812A-00-00

$4.11

30

O-RING

6BH-81847-00-00

$7.69

31

BOLT, WITH WASHER

90119-06091-00

$2.27

32

SWITCH ASSY

6S5-8259E-00-00

$165.14

33

SCREW, TAPPING

97780-60520-00

$4.09

34

WIRE HARNESS ASSY 1

6CN-8259L-10-00

$1,456.05

35

CLAMP

90465-14M66-00

Unavailable
