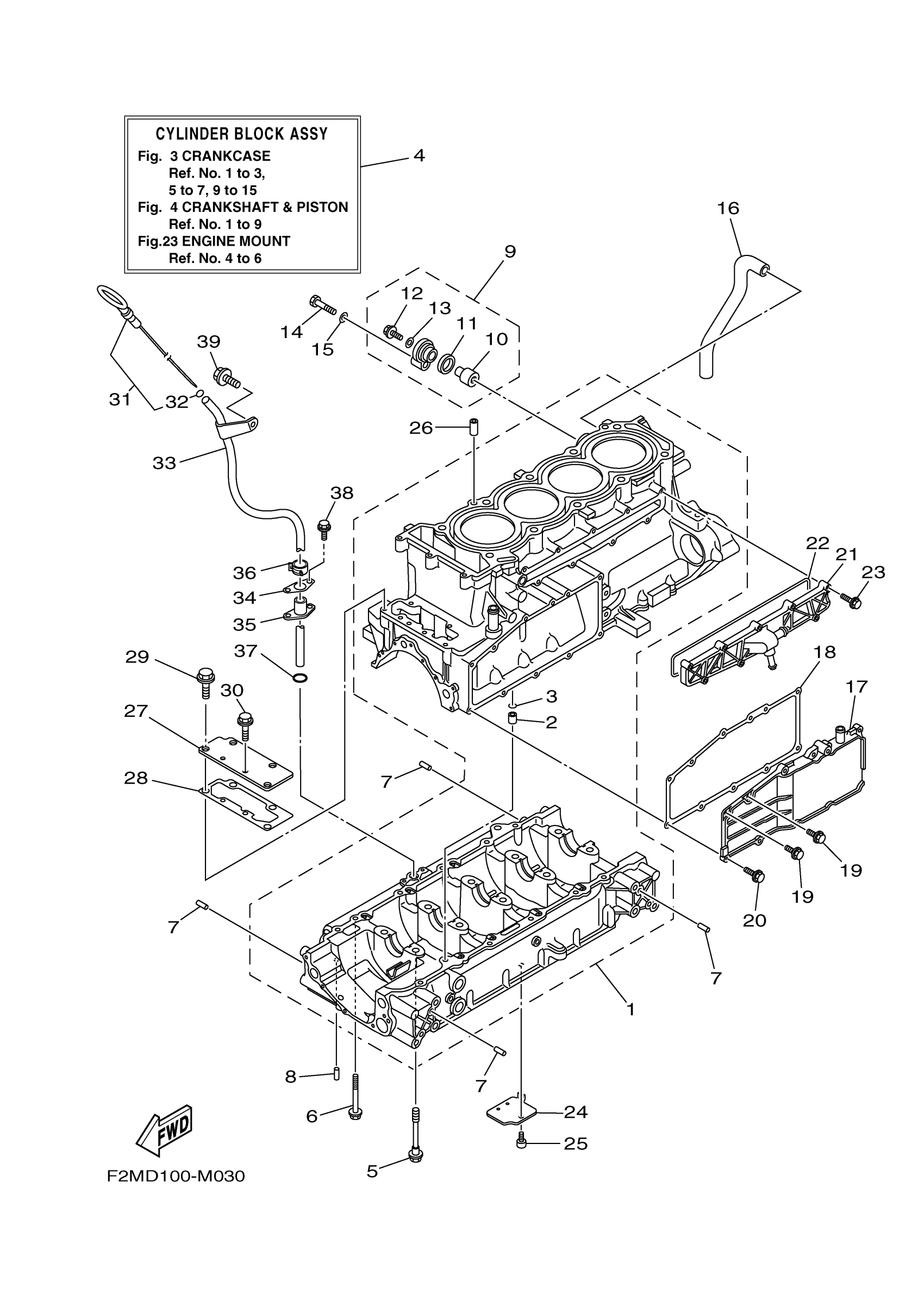

Yamaha VX1800M (VXS) F2MF 2013 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

6CR-15100-20-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

O-RING (4G0)

93210-11453-00

$5.47

4

CYLINDER BLOCK ASSY

6CR-W009B-28-94

Unavailable

5

. BOLT, FLANGE

90105-10071-00

$10.49

6

BOLT, FLANGE(3JP)

95814-06070-00

$5.75

7

PIN, DOWEL (614)

93606-12019-00

$3.05

8

PIN, DOWEL

93604-10M03-00

$3.86

9

ANODE COVER ASSY

69J-11301-11-00

$17.37

10

. ANODE

68V-11325-02-00

$16.45

11

GROMMET, ANODE

67F-11328-01-00

$3.50

12

BOLT (689)

90105-06M07-00

$1.82

13

. GASKET

90430-06M03-00

$2.80

14

BOLT, HEXAGON

97095-08040-00

$3.37

15

.. WASHER, PLATE

92990-08600-00

$2.17

16

HOSE

6S5-11377-00-00

$40.89

17

COVER

6S5-1131M-10-8P

$142.41

18

. GASKET

6BH-13557-00-00

$27.78

19

BOLT, FLANGE

95024-06014-00

Unavailable

20

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

21

JOINT 1

6CS-12469-A0-00

$60.91

22

. GASKET, WATER INLET

6CS-12517-00-00

$15.55

23

BOLT, FLANGE

95814-06035-00

Unavailable

24

PLATE, BAFFLE LOWER

6S5-13337-10-00

$3.64

25

BOLT,SOCKET

91317-06012-00

Unavailable

26

PIN, DOWEL(3VD)

99530-10114-00

$2.13

27

COVER, JOINT

6BH-1131C-00-00

$14.38

28

. GASKET, COVER

6BH-1131B-00-00

$2.95

29

BOLT, FLANGE(4HM)

95814-08020-00

Unavailable

30

BOLT, FLANGE

95814-06016-00

$1.82

31

PLUG, OIL LEVEL

6ET-15362-00-00

$48.47

32

O-RING (26H)

93210-06632-00

Unavailable

33

PIPE, OIL LEVEL

6CS-8572F-00-00

$75.86

34

. PLATE

6BH-1319K-00-00

$7.77

35

SPACER

6CS-85516-00-00

$23.67

36

. CLIP

90467-150A1-00

$3.33

37

. O-RING

93210-12016-00

$2.57

38

BOLT

90109-06268-00

$2.80

39

BOLT, WASHER BASED

90105-08021-00

Unavailable
