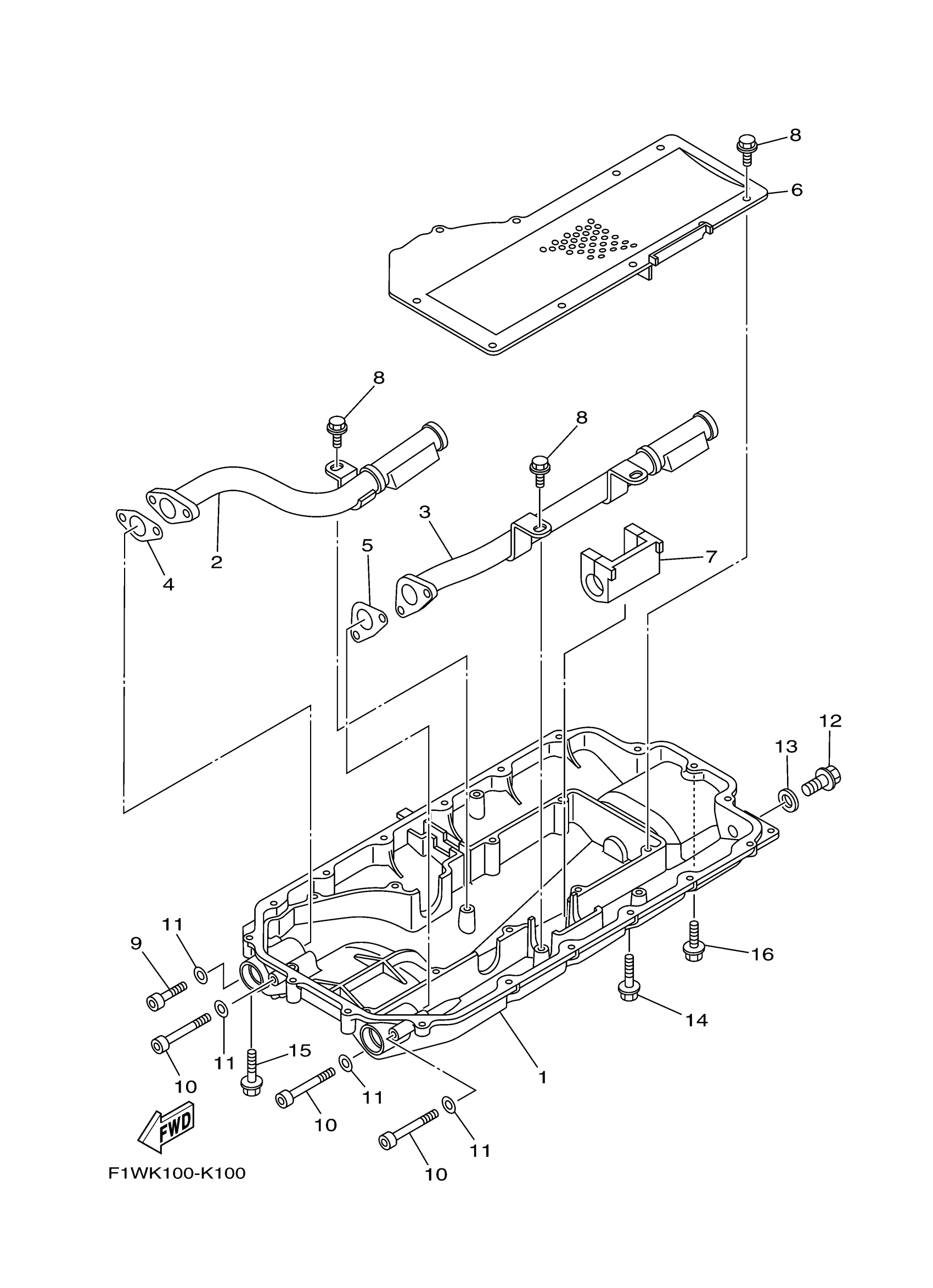

Yamaha VX1800L (VXS) F2MA 2012 OIL PAN UP TO E/N 6CN-1005800 Diagram

#

Description
Price

1

PAN, OIL

6S5-1310A-10-94

Unavailable

2

OIL PIPE COMP. 2

6S5-13405-00-00

Unavailable

3

OIL PIPE COMP. 2

6S5-13406-00-00

Unavailable

4

GASKET

6S5-13476-00-00

Unavailable

5

GASKET

6S5-13477-00-00

Unavailable

6

PLATE, BAFFLE

6S5-13317-00-00

Unavailable

7

GROMMET

6S5-15486-00-00

Unavailable

8

BOLT, FLANGE

95817-06014-00

Unavailable

9

BOLT, SOCKET

91314-06035-00

$8.49

10

BOLT, SOCKET

91314-06060-00

$8.49

11

WASHER, PLATE

90201-06028-00

Unavailable

12

BOLT, FLANGE

95814-08016-00

$9.49

13

GASKET(3GH)

90430-08209-00

$3.76

14

BOLT, FLANGE(4BH)

95024-06035-00

$9.49

15

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

16

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable
