Partiron

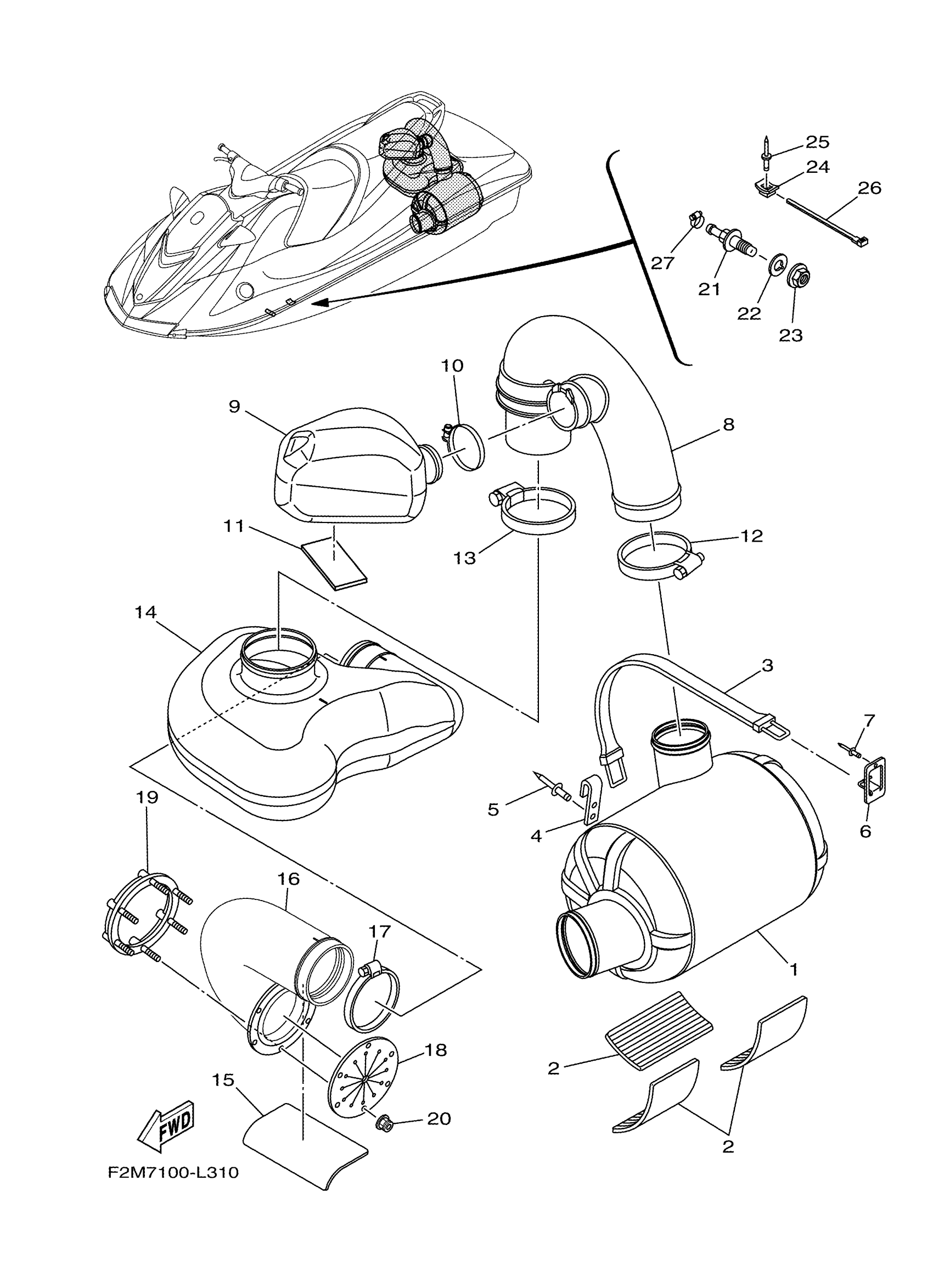

Yamaha VX1800L (VXS) F2MA 2012 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F4P-U7550-00-00

$322.71

2

PAD, BATTERY

F1S-U8221-00-00

$2.75

3

BAND, FUEL TANK

EW2-67821-00-00

$38.49

4

HOOK A

GA7-65772-00-00

$9.08

5

RIVET (EU0)

90267-48938-00

$5.00

6

HOOK A

F1K-U5772-04-00

$6.29

7

RIVET (EU0)

90267-48938-00

$5.00

8

HOSE, EXHAUST

F1W-U7555-01-00

$75.74

9

RESONATOR 1

F1W-U753C-01-00

Unavailable

10

BAND, HOSE 70

90601-170UG-00

$5.67

11

MAT 2

F1K-U759C-00-00

$1.72

12

HOSE CLAMP ASSY

90450-99801-00

$3.79

13

HOSE CLAMP ASSY

90450-99804-00

Unavailable

14

TANK, WATER

F2N-U4261-00-00

$85.21

15

PAD, BATTERY

F1S-U8221-00-00

$2.75

16

HOSE,EXHAUST 3

F2N-U758D-00-00

$190.89

17

HOSE CLAMP ASSY

90450-99801-00

$3.79

18

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

19

PLATE

F1S-U757B-01-00

$22.97

20

NUT, LOCK

F2N-U142L-00-00

$1.00

21

PILOT, WATER

F1K-6753B-00-00

Unavailable

22

GASKET

F1B-67564-00-00

$3.64

23

NUT

F0X-62733-00-00

$11.35

24

BASE, CLAMP

F1W-U828M-00-00

$1.23

25

RIVET, BLIND

90267-489U6-00

$1.37

26

CLAMP

90464-32801-00

$1.23

27

CLIP

90467-17802-00

$2.87
