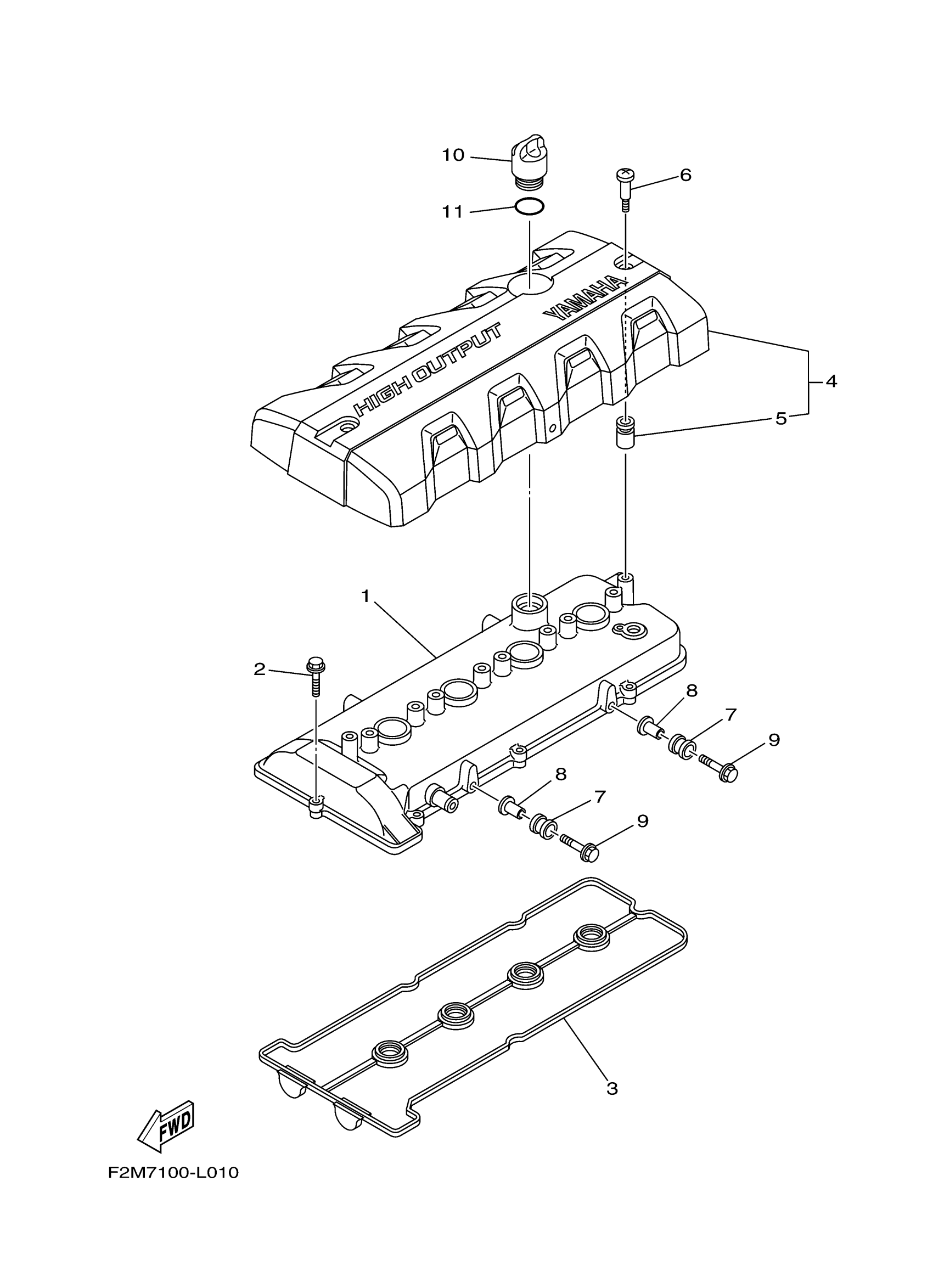

Yamaha VX1800L (VXS) F2MA 2012 CYLINDER 1 Diagram

#

Description
Price

1

COVER, CYLINDER HEAD 1

6BH-11191-00-94

Unavailable

1

COVER, CYLINDER HEAD 1

6BH-11191-20-00

$305.96

2

BOLT, FLANGE

90105-06028-00

$2.80

3

. GASKET, HEAD COVER 1

6BH-11193-00-00

$36.85

4

COVER ASSY 1

6BH-E110M-00-00

$38.79

5

. GROMMET, ANODE

6S5-E1328-00-00

$1.72

6

BOLT, COVER MOUNTING

6S5-E118E-02-00

$1.43

7

DAMPER, IGNITION COIL

61N-82317-01-00

$1.07

8

. COLLAR

90387-06119-00

$4.60

9

BOLT, FLANGE

95814-06025-00

Unavailable

10

PLUG, OIL

6S5-15363-00-00

$15.66

11

O-RING (437)

93210-24235-00

$5.34
