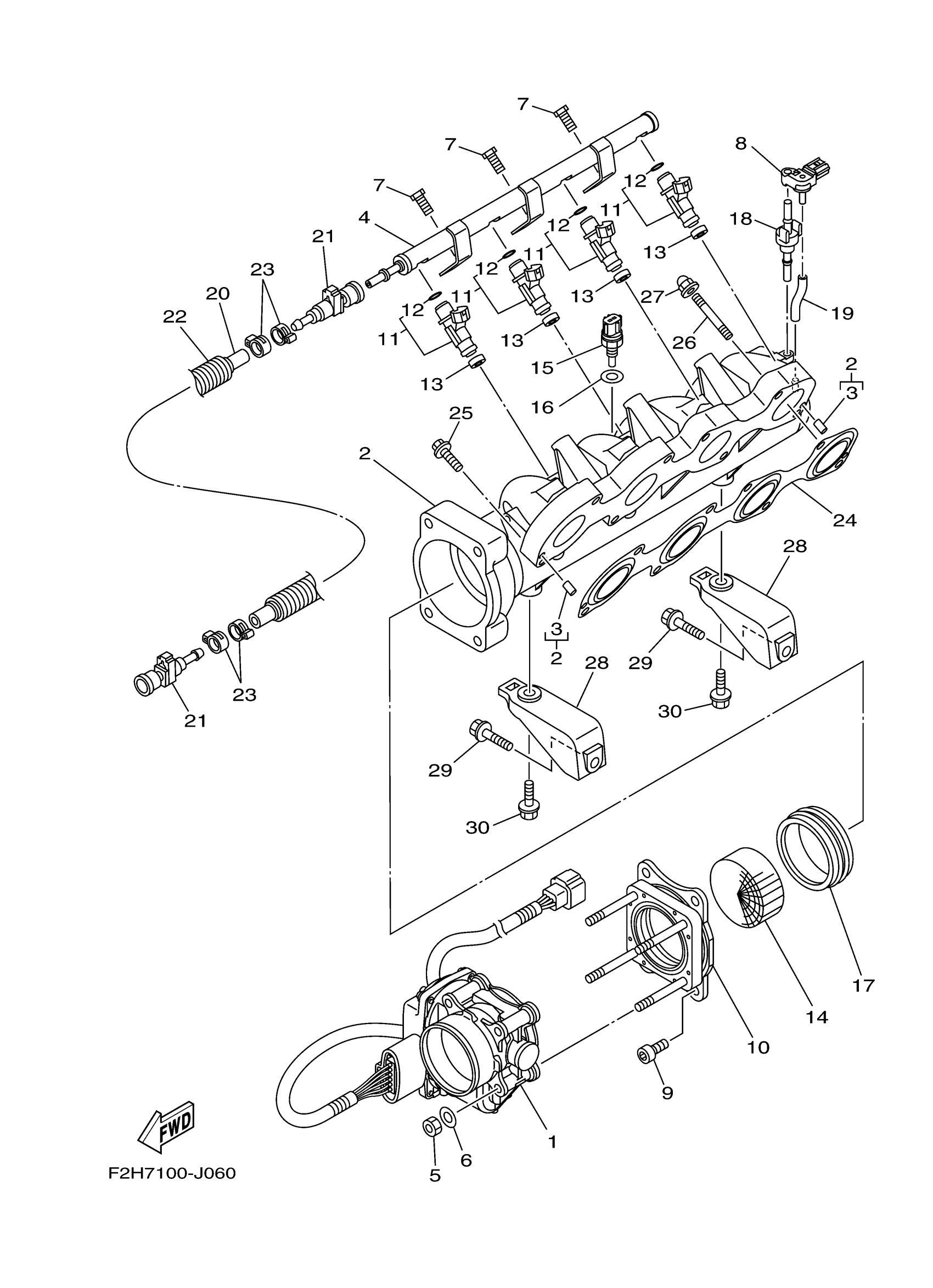

Yamaha VX1800K (VXS) F2M4 2011 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6BH-13750-03-00

Unavailable

2

MANIFOLD, INTAKE 1

6BH-13641-01-00

$994.10

3

PIN,DOWEL (603)

93604-10011-00

$4.89

4

DELIVERY PIPE

6S5-12880-00-00

Unavailable

5

NUT

6P2-13588-00-00

$19.71

6

WASHER

6P2-13578-00-00

$6.57

7

. BOLT

63P-14446-00-00

$9.27

8

. SENSOR, PRESSURE

6BH-82380-00-00

$215.07

9

BOLT

6S5-14496-00-00

$12.49

10

THROTTLE DAMPER AS

6BH-14360-02-00

Unavailable

11

INJECTOR

6S5-13761-00-00

$194.10

12

.. O-RING

60E-14147-00-00

$7.06

13

GASKET, MANIFOLD

8FP-13556-00-00

$11.73

14

RIBBON

6BH-1444B-01-00

Unavailable

15

THERMOSENSOR

65L-85886-00-00

$60.03

16

. WASHER

6S5-14285-00-00

$2.13

17

SEAL

6BH-14457-00-00

$69.10

18

GROMMET

6BH-14445-00-00

$20.57

19

HOSE, VACUUM SENSING 3

6BH-13532-00-00

$6.18

20

HOSE

6CN-14294-00-00

Unavailable

21

FUEL PIPE JOINT

6S5-24300-01-00

$23.17

22

TUBE (L610)

90447-19020-00

$12.49

23

HOSE CLAMP ASSY

90450-17M17-00

$7.59

24

. GASKET, MANIFOLD 1

6BH-13645-00-00

$15.95

25

BOLT, WITH WASHER

90119-08022-00

$3.57

26

BOLT, STUD

90116-08032-00

$3.41

27

NUT, CROWN(4BR)

90176-08080-00

Unavailable

28

STAY

6S5-14413-00-00

Unavailable

29

BOLT, WITH WASHER

90119-08043-00

$4.41

30

BOLT, WITH WASHER

90119-08099-00

$4.85
